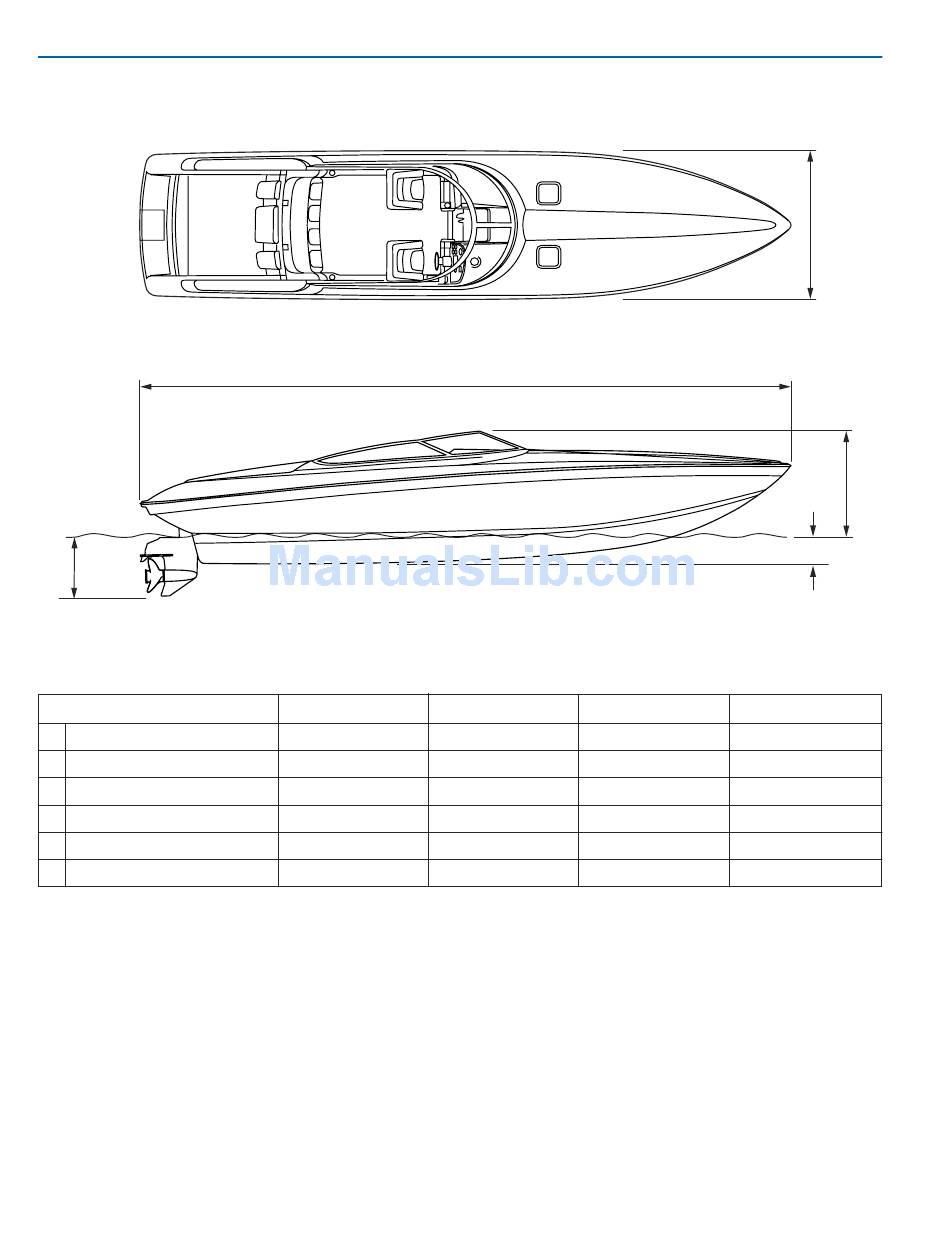

DIMENSIONS

E
A Maximum Beam
B Centerline Length
C Bridge Clearance - Dry
D Draft - Drive Unit Up
E Draft - Drive Unit Down
F Dead Rise
3-2
B
271 Fastech 292 Fastech
8'3" (2.5 m) 8'3" (2.5 m)
27'1" (8.3 m) 29'2" (8.9 m)
4'11" (1.5 m) 4'11" (1.5 m)
31" (78.7 cm) 30" (76.2 cm)
34" (86 cm) 33" (84 cm)
24°
FASTECH
353 Fastech
8'3" (2.5 m)
35'3" (10.7 m)
5'4" (1.6 m)
33" (84 cm)
36" (91 cm)
24° 24°
A
C
D
FOR186
382 Fastech
8'3" (2.5 m)
38'2" (11.6 m)
5'6" (1.6 m)
30" (76.2 cm)
33" (84 cm)
24°
