MANUAL
CONGRATULATIONS
on the purchase of your new professional switched mode battery charger and bat-
tery check instrument. This charger is included in a series of professional chargers from
CTEK SWEDEN AB and represents the latest technology in battery charging.

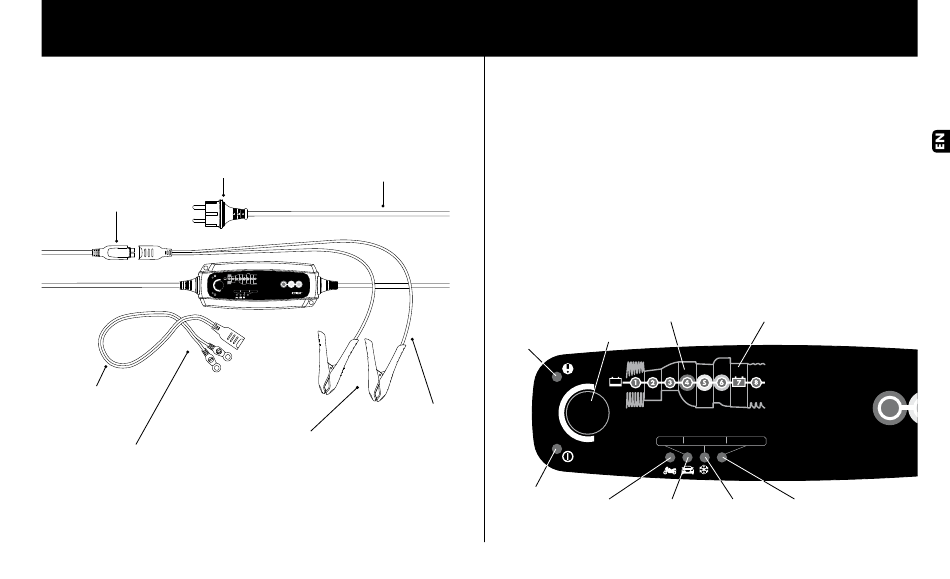

SUPPLY PLUG*
CTEK COMFORT CONNECT
MODE
CHARGE CABLE
H05RN–F Rubber
HPN Rubber Cable
CTEK COMFORT CONNECT – eyelet M6
* Supply plugs may differ to suit your wall socket.
MAINS CABLE
H05RN-F Rubber
VOLTAGE CHECK PROGRAM
BATTERY
START POWER
ALTERNATOR
MXS 5.0
CHECK BY
RECOND
HPN Rubber Cable
CTEK COMFORT CONNECT – clamp
HOW TO CHARGE
1. Connect the charger to the battery. Lamp 4, 5 and 6 now start flickering indicating
VOLTAGE CHECK PROGRAM. Ignore this and continue with the next step.
2. Connect the charger to the wall socket. The power lamp will indicate that the mains
cable is connected to the wall socket. The error lamp will indicate if the battery clamps
are incorrectly connected. The reverse polarity protection will ensure that the battery
or charger will not be damaged.
3. Press the MODE-button to select charging program.
4. Follow the 8-step display through the charging process.
The battery is ready to start the engine when STEP 4 is lit.
The battery is fully charged when STEP 7 is lit.
Stop charging at any time by disconnecting the mains cable from the wall socket.
Note: If the charger indicates START POWER VOLTAGE CHECK PROGRAM lamp
and BAD lamp press MODE-button for 2 sec to exit VOLTAGE CHECK PROGRAM.
REAdY TO USE
MOdE-BUTTON
ERROR LAMP
MODE
BATTERY
POWER LAMP
SMALL
NORMAL
BATTERY
BATTERY
PROGRAM
PROGRAM
FULLY CHARGEd
VOLTAGE CHECK PROGRAM
START POWER
ALTERNATOR
MXS 5.0
RECOND
COLd
RECONd
WEATHER
OPTION
OPTION
CHECK BY
EN • 3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MXS 5.0 CHECK and is the answer not in the manual?

Questions and answers

Related Manuals for CTEK MXS 5.0 CHECK

Summary of Contents for CTEK MXS 5.0 CHECK

  • Page 1 This charger is included in a series of professional chargers from VOLTAGE CHECK PROGRAM. Ignore this and continue with the next step. CTEK SWEDEN AB and represents the latest technology in battery charging. 2. Connect the charger to the wall socket. The power lamp will indicate that the mains cable is connected to the wall socket.
  • Page 2 HOW TO SELECT: VOLTAGE CHECK PROGRAM HOW TO USE: VOLTAGE CHECK PROGRAM WITH SUPPLY PLUG CONNECTED VOLTAGE CHECK PROGRAM: BATTERY 1. Connect the charger to the battery. For accurate results, the battery must rest for at least one hour before test. Select the VOLTAGE CHECK PROGRAM: BATTERY with the MODE-button.
  • Page 3 HOW TO USE: VOLTAGE CHECK PROGRAM CHARGING PROGRAMS ANd OPTIONS WITHOUT SUPPLY PLUG CONNECTED Press the MODE-button to select between the charging programs and to add charging options. The lamps will indicate which programs and options that are selected. The 1.

  • Page 4: Error Lamp

    ERROR LAMP CHARGING STEPS If the error lamp is lit, check the following: STEP 1 dESULPHATION 1. Is the chargers positive lead connected to the bat- Detects sulphated batteries. Pulsing current and voltage, removes sulphate from the lead tery's positive pole? plates of the battery restoring the battery capacity.
  • Page 5 CHARGING PROGRAMS ANd OPTIONS COMBINATIONS dESULPHATION SOFT START BULK ABSORPTION ANALYSE RECONd FLOAT PULSE 15.8V 0.8A until 12.6V Increasing voltage to Declining current Checks if voltage 13.6V 12.7V–14.4V 14.4V. 0.8A 14.4V drops to 12V 0.8A 0.8–0.4A 15.8V 0.8A until 12.6V Increasing voltage to Declining current Checks if voltage...

  • Page 6: Technical Specifications

    High black clamp. voltage ripple could harm other equipment that is connected to the battery. CTEK battery chargers produce very clean voltage and current with low ripple.

  • Page 7: Limited Warranty

    SAFETY LIMITEd WARRANTY CTEK SWEDEN AB, issues this limited warranty to the original purchaser of this product. • The charger is designed for charging only for batteries according to the technical This limited warranty is not transferable. The warranty applies to manufacturing faults specification.
  • Page 8 CTEK PROdUCTS ARE PROTECTEd BY 2011–09–19 Patents designs Trade marks EP10156636.2 pending RCD 509617 CTM 669987 US12/780968 pending US D575225 CTM 844303 EP1618643 US D580853 CTM 372715 US7541778 US D581356 CTM 3151800 EP1744432 US D571179 CTM 1461716 pending EP1483817 pending RCD 321216 CTM 1025831 SE524203 RCD 000911839 CTM 405811 US7005832B2...
