MEA2100-System Manual
MEA2100 Interface Board: Digital IN / OUT Connector

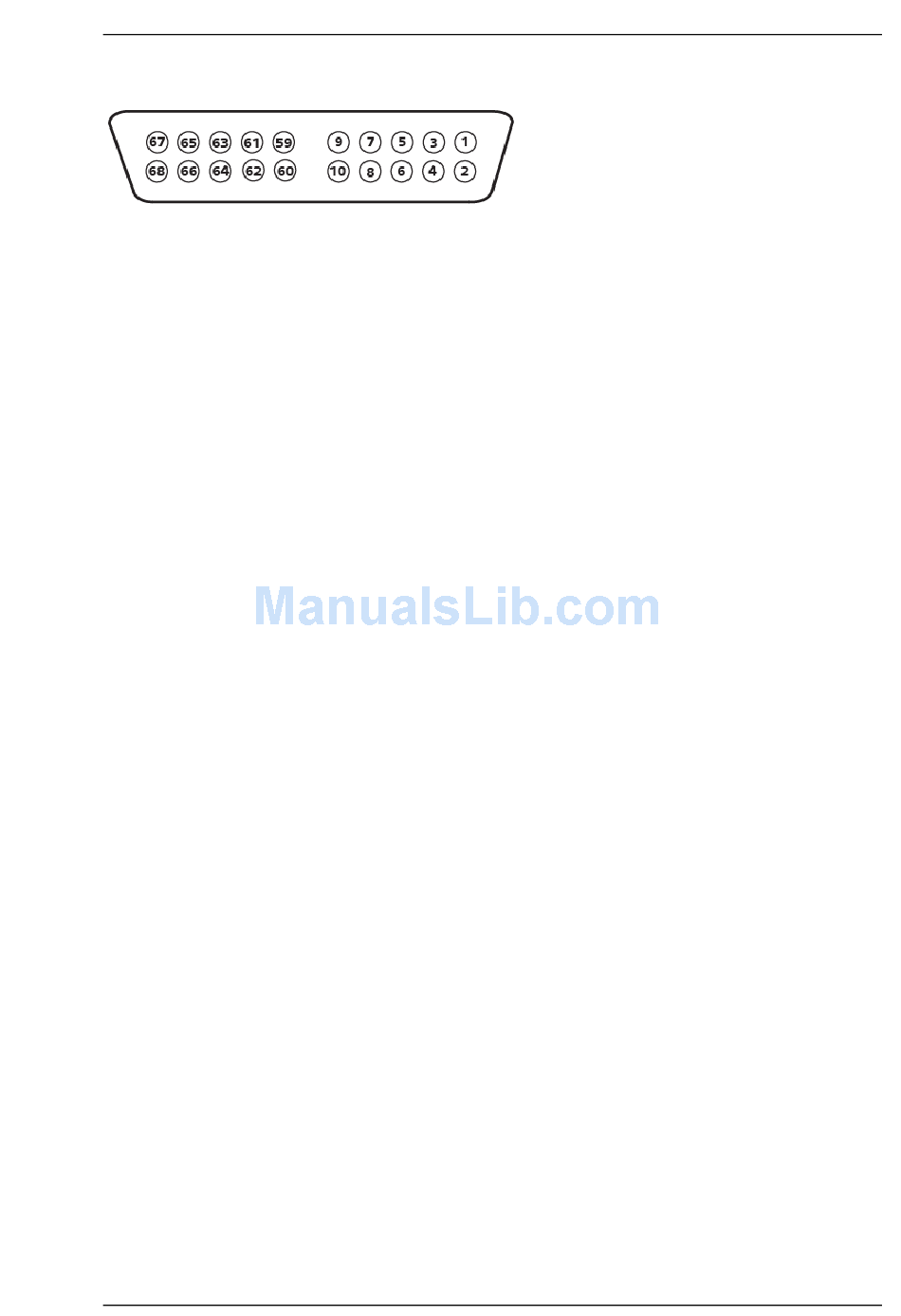

68-Pin MCS Standard Connector
Pin 1
Pin 2
Pin 3 - 10
Pin 11 - 14
Pin 15 - 22
Pin 23 - 26
Pin 27 - 34
Pin 35 - 38
Pin 39 - 46
Pin 47 - 48
Pin 49 - 63
Pin 64 - 66
Pin 67
Pin 68
Digital IN / OUT, separate available via Lemo Connectors
Separate Digital IN Lemo Connectors
Digital In 1
Digital IN 2
Digital IN 3
Digital IN 4
Separate Digital OUT Lemo Connectors
Digital OUT 1
Digital OUT 2
Digital OUT 3
Digital OUT 4
56
GNDP (power ground)
GNDS (signal ground)
Digital output channels bit 0 - 7
GNDS (signal ground)
Digital output channels bit 8 - 15
GNDS (signal ground)
Digital input channels bit 0 - 7
GNDS (signal ground)
Digital input channels bit 8 - 15
GNDS (signal ground)
Internal use (do not connect)
GNDS (signal ground)
Positive supply voltage output
Negative voltage supply output
Bit 0 of the 16 bit digital input channels (Pin 27)
Bit 1 of the 16 bit digital input channels (Pin 28)
Bit 2 of the 16 bit digital input channels (Pin 29)
Bit 3 of the 16 bit digital input channels (Pin 30)
Bit 0 of the 16 bit digital output channels (Pin 3)
Bit 1 of the 16 bit digital output channels (Pin 4)
Bit 2 of the 16 bit digital output channels (Pin 5)
Bit 3 of the 16 bit digital output channels (Pin 6)
