4.6 Stimulus Generator

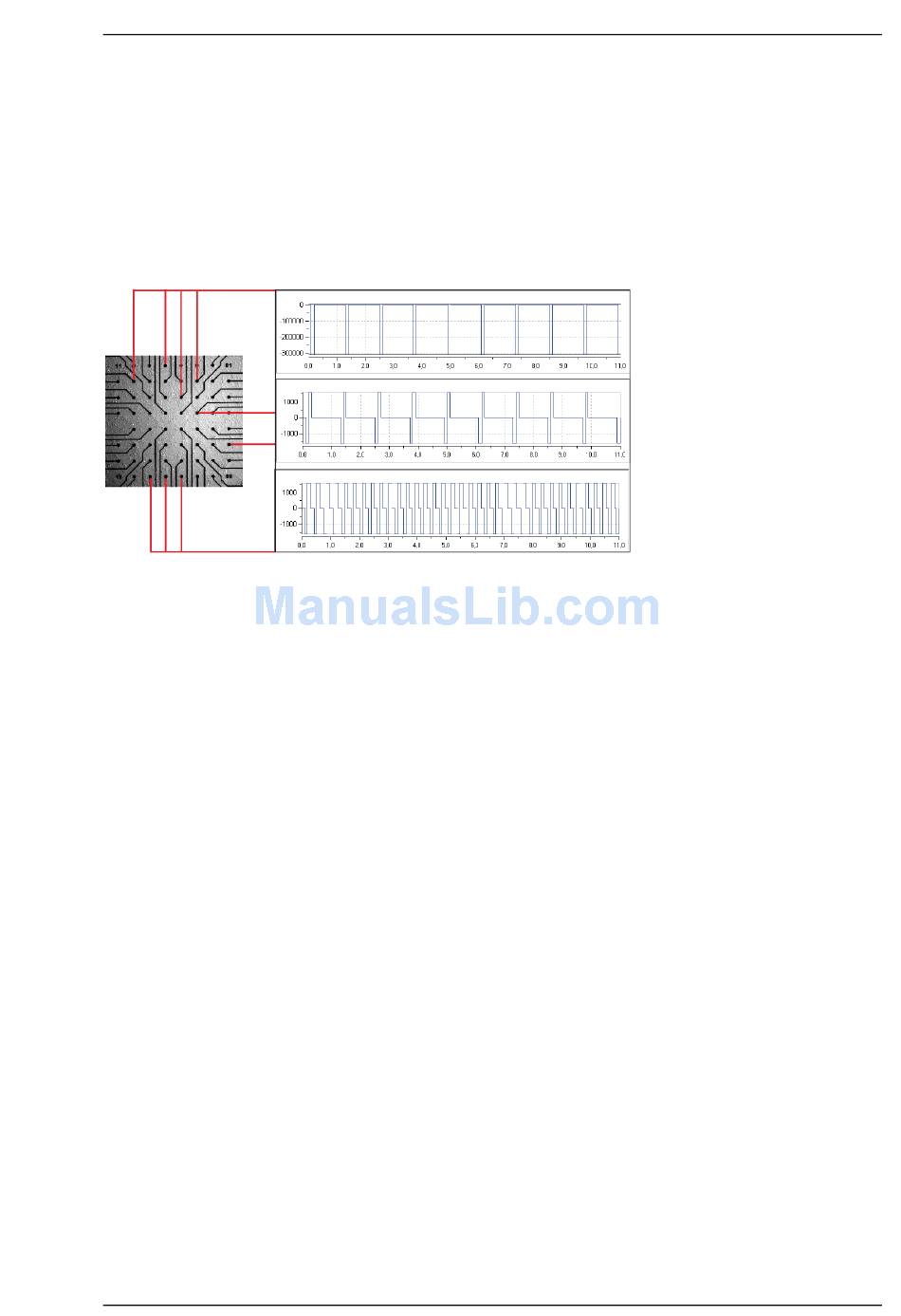

The headstage of the MEA2100-System is equipped with an integrated three channel stimulus
generator, which delivers rectangular pulses in three different stimulation patterns: monophasic,
biphasic and pulse trains. You can choose between current or voltage stimulation and you can
select each electrode for stimulation. The integrated blanking circuit (BC) disconnects the
electrodes from the amplifiers during the stimulation and avoids stimulus artifacts. Control of
stimulation patterns and selection of stimulation electrodes is done within the MC_Rack software.
Please read chapter "Setting up the Internal Stimulation Generator" for setting up and applying
the stimulation parameters.
