MEA2100-System Manual

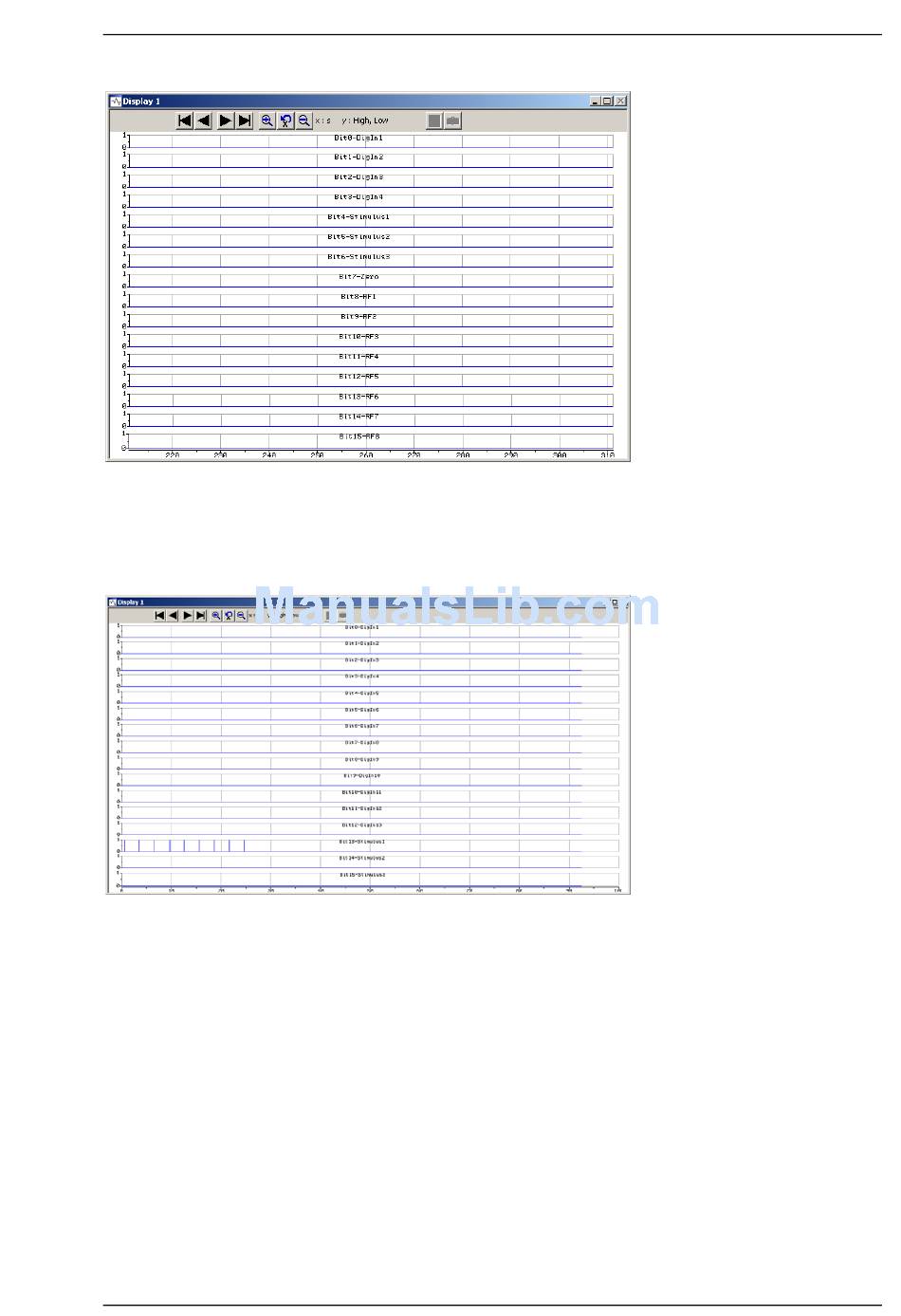

To monitor the digital data stream you can use the "Digital Display" tool. If a MEA2100 device
is connected, the input bits will be labeled according to their function in the digital display.
If a MEA2100-32 device is connected, the "Real-time feedback" is not available, respectively
the real-time feedback specification 1 to 8 are not available. Therefore the input bits are used
for the digital inputs, bit 0 to bit 12 to digIn 1 to 13. The stimulation channels are connected
to the last three bits, bit 13 to stimulus 1, bit 14 to stimulus 2 and bit 15 to stimulus 3.
The channels are labeled according to their function in the digital display.
