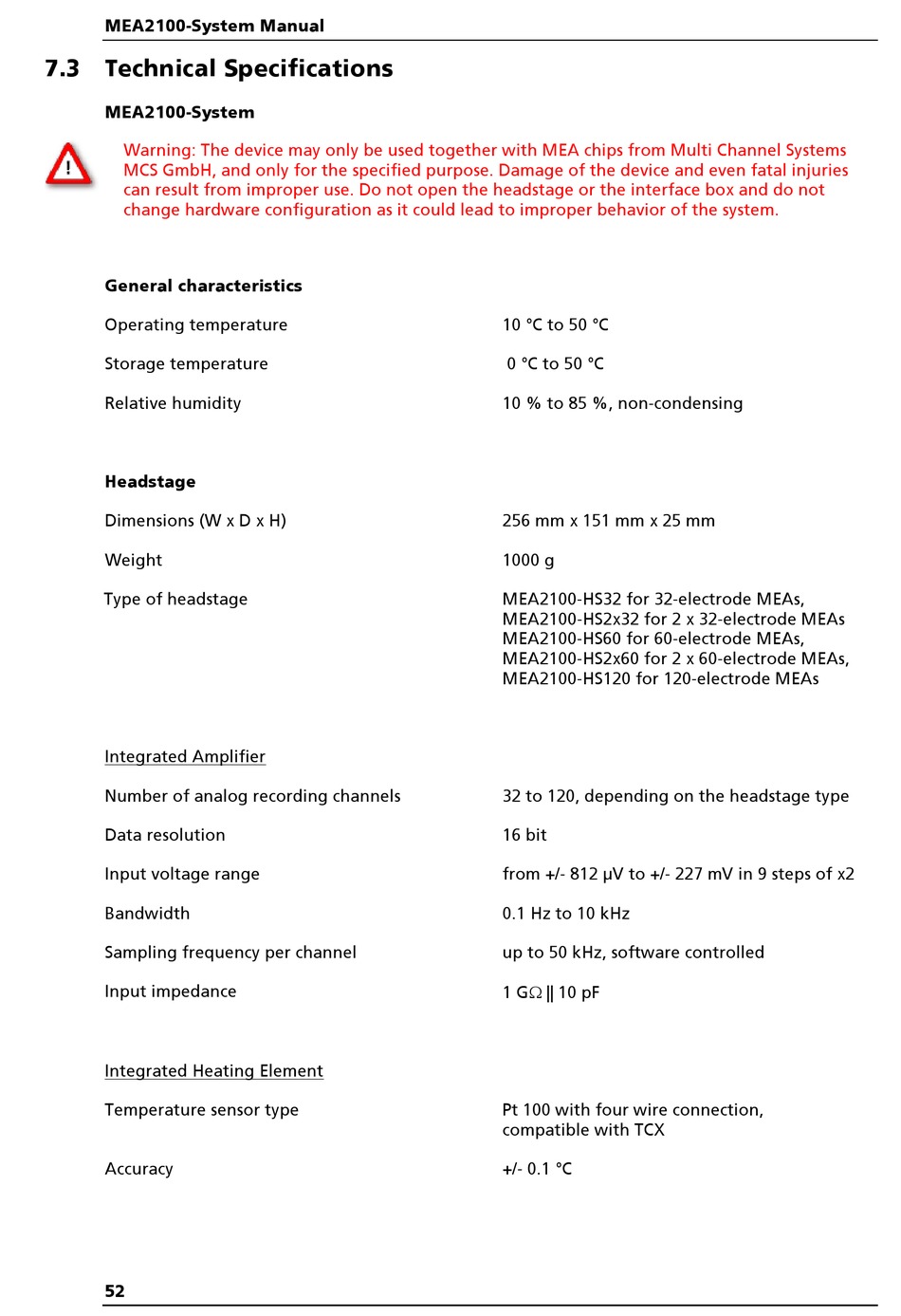

7.3 Technical Specifications

MEA2100-System
Warning: The device may only be used together with MEA chips from Multi Channel Systems
MCS GmbH, and only for the specified purpose. Damage of the device and even fatal injuries
can result from improper use. Do not open the headstage or the interface box and do not
change hardware configuration as it could lead to improper behavior of the system.
General characteristics
Operating temperature
Storage temperature
Relative humidity
Headstage
Dimensions (W x D x H)
Weight
Type of headstage
Integrated Amplifier
Number of analog recording channels
Data resolution
Input voltage range
Bandwidth
Sampling frequency per channel
Input impedance
Integrated Heating Element
Temperature sensor type
Accuracy
52
10 °C to 50 °C
0 °C to 50 °C
10 % to 85 %, non-condensing
256 mm x 151 mm x 25 mm
1000 g
MEA2100-HS32 for 32-electrode MEAs,
MEA2100-HS2x32 for 2 x 32-electrode MEAs
MEA2100-HS60 for 60-electrode MEAs,
MEA2100-HS2x60 for 2 x 60-electrode MEAs,
MEA2100-HS120 for 120-electrode MEAs
32 to 120, depending on the headstage type
16 bit
from +/- 812 μV to +/- 227 mV in 9 steps of x2
0.1 Hz to 10 kHz
up to 50 kHz, software controlled
1 G || 10 pF
Pt 100 with four wire connection,
compatible with TCX
+/- 0.1 °C
