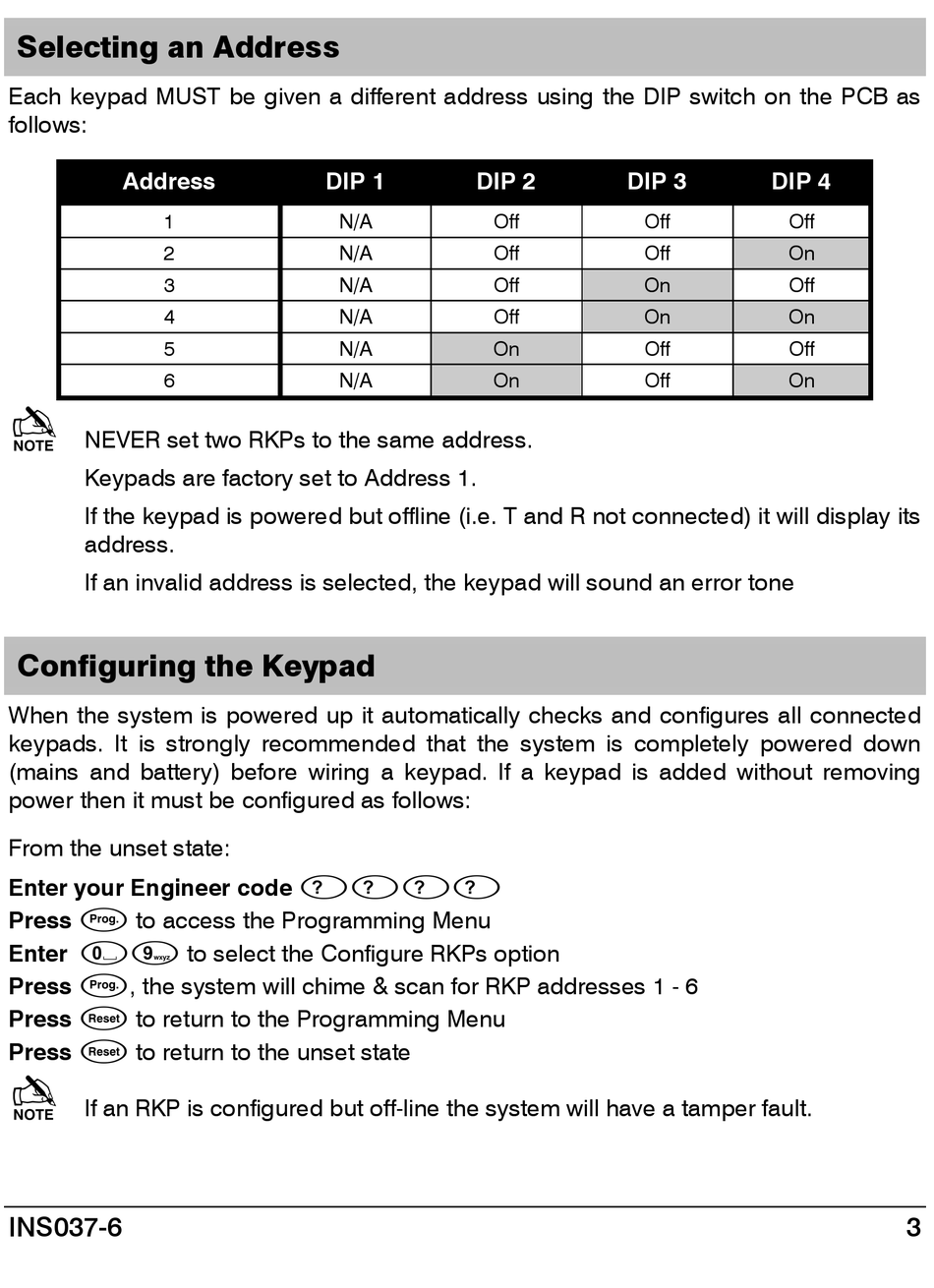

Selecting an Address
Each keypad MUST be given a different address using the DIP switch on the PCB as
follows:
Address
1
2
3
4
5
6
! "
NEVER set two RKPs to the same address.
Keypads are factory set to Address 1.
If the keypad is powered but offline (i.e. T and R not connected) it will display its
address.
If an invalid address is selected, the keypad will sound an error tone
Configuring the Keypad
When the system is powered up it automatically checks and configures all connected
keypads. It is strongly recommended that the system is completely powered down
(mains and battery) before wiring a keypad. If a keypad is added without removing
power then it must be configured as follows:
From the unset state:
Enter your Engineer code
Press to access the Programming Menu
"
Enter
#$
Press , the system will chime & scan for RKP addresses 1 - 6
"
Press to return to the Programming Menu
%
Press to return to the unset state
%
! "
If an RKP is configured but off-line the system will have a tamper fault.
