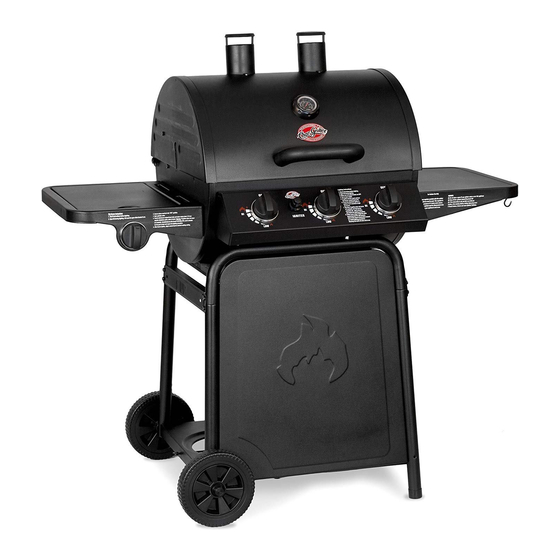

OWNER'S MANUAL
LP Gas Grill
A propane gas cylinder is required for
operation. This gas grill is not intended
for commercial use.
SAVE THESE INSTRUCTIONS FOR FU-
TURE REFERENCE. IF YOU ARE ASSEM-
BLING THIS UNIT FOR SOMEONE ELSE,
GIVE THIS MANUAL TO HIM OR HER TO
SAVE FOR FUTURE REFERENCE.
FOR CUSTOMER SERVICE, CALL 912-
638-4724
WARNING:
Improper installation, adjustment, al-
teration, service or maintenance could
cause injury or property damage. Read
the installation, operation and mainte-
nance instructions thoroughly before
assembling or servicing this equip-
ment.
OM3001D.6
GRILLIN' PRO
Keep your receipt with this manual
for Warranty.
(outside any enclosure)
DANGER:
DO NOT use gas grill for indoor cook-
ing or heating. TOXIC fumes can accu-
mulate and cause asphyxiation. Do
not use in or on boats or recreational
vehicles.
PROP 65 WARNING:
Chemicals known to the state of Cali-
fornia to cause cancer, birth defects
or other reproductive harm are creat-
ed by the combustion of propane.
™ & © Char-Griller / A&J Mfg.
Model # 3001
WARNING
For Outdoor Use Only
™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3001 GRILLIN’ PRO and is the answer not in the manual?

Questions and answers

Related Manuals for Char-Griller 3001 GRILLIN’ PRO

Summary of Contents for Char-Griller 3001 GRILLIN’ PRO

  • Page 1 OM3001D.6 ™ & © Char-Griller / A&J Mfg.

  • Page 2: If You Smell Gas

    1-912-638-4724 (USA), Mon- day-Friday 8:30am-5pm (EST). Have your grills serial number (located on the back of the grill body or on the leg) when calling. OM3001D.6 ™ & © Char-Griller / A&J Mfg.

  • Page 3: Table Of Contents

    Assembly Instructions ……………………………..page 9 – 19 Operating Grill Connecting Gas Cylinder…………………………..page 21 Cleaning and Care……………………………………page 22-23 Checking for Leaks………………………………..…page 24 Lighting Grill…...……………………………………..page 25-27 Trouble Shooting……………………………………..page 28-29 Grill Preparation………………………………………..page 30 Recipes……………………………………………..…...…page 31 - 32 Accessories……………………………………………….page 33 - 34 OM3001D.6 ™ & © Char-Griller / A&J Mfg.

  • Page 4: Important Safety Information

    8. DO NOT use this grill or any gas product near unprotected combustible constructions. 9. Do not use in an explosive atmosphere. Keep grill area clear and free from combus- tible materials, gasoline and other flammable vapors and liquids. OM3001D.6 ™ & © Char-Griller / A&J Mfg.
  • Page 5 This grill is shipped from the factory for propane gas use only. Never use a propane cylinder with a damaged body, valve, collar or footing. Dented or rusted propane cylinders may be hazardous and should be checked by your propane gas supplier. OM3001D.6 ™ & © Char-Griller / A&J Mfg.

  • Page 6: Illustrated Parts List

    OM3001D.6 ™ & © Char-Griller / A&J Mfg.
  • Page 7 50-0002 GREASE TRAY 10-0028 CATCH PAN, REMOVABLE 20-1025 SIDE SHELF 20-0033 POT STAND 20-0005 STACK 20-0034 HUB CAP 55-0007 STOPPER BRACKET 10-0360 SLIDER BRACKET 10-0359 TANK BLOCK BAR 10-0283 GRATE LIFTER 10-0045 OM3001D.6 ™ & © Char-Griller / A&J Mfg.

  • Page 8: Tools, Assembly Tips And Hardware List

    ¼-20 HEX NUT…………..10 PCS ¼” LOCK WASHER……..……..33 PCS HINGE PINS………………..2 PCS LARGE HAIR COTTER PIN…….2 PCS SMALL HAIR COTTER PIN…….2 PCS SCREW…………………..………….3 PCS #10-24 x 0.40” BOLT……….6 PCS 1/4-20 x 31/4” Wing Bolt….…1 PC OM3001D.6 ™ & © Char-Griller / A&J Mfg.

  • Page 9: Assembly Instructions

    Lock Washer Hex Bolts Leg Cross Bars Lock Washer Leg Brace Leg Brace Short Legs Hex Bolts Leg Caps Long Legs Holes on Leg Cross Bars TOP VIEW AFTER ASSEMBLY OM3001D.6 ™ & © Char-Griller / A&J Mfg.
  • Page 10 Large Cotter Pin and snap on the Hub Cap. Cotter Pins Short Legs Large Cotter Pin Cotter Pin Hub Cap Flat Washer Axle Hub Cap Wheels Flat Washer Long Leg OM3001D.6 ™ & © Char-Griller / A&J Mfg.
  • Page 11 Brackets as shown below. This is critical for installing the Catch Pan on later step). The Bolts should go in from inside the Grill Body. Pan Head Bolts Stopper Bracket Slider Brackets OM3001D.6 ™ & © Char-Griller / A&J Mfg.
  • Page 12 Oriented the Grill body so that the three opening holes on the Grill Body for the burner tubes are facing in the same side as the Front Panel. Grill Body Hex Bolts Flat Lock Washers Washers Holes for Burners Front Panel OM3001D.6 ™ & © Char-Griller / A&J Mfg.
  • Page 13 Bolts and four Lock Washers (two Hex Bolts and two Lock Washers on each side). Then attach the Side Burner Body Assembly on the side of the Grill Bod. Side Burner Body Side Burner Control Panel Body Assembly Lock Washers Knobs Control Panel Assembly Hex Bolts OM3001D.6 ™ & © Char-Griller / A&J Mfg.
  • Page 14 Hose Guide Bracket Lock Washer Step 11: Install Side Shelf on the side of the Grill Body using four Lock Washers and four 1/2” Hex Bolts. Side Shelf Lock Washers Hex Bolts OM3001D.6 ™ & © Char-Griller / A&J Mfg.
  • Page 15 Valve goes inside each burner, see figure 12B. Then secure the Burners to the Grill Body with the screws provided, see figure 12C. Burner Figure 12A Igniter with Wire Screw Burner Valve Burner Figure 12B Figure 12C OM3001D.6 ™ & © Char-Griller / A&J Mfg.
  • Page 16 Wing Nuts. Then attach the Thermometer and Bezel to the Grill Hood. The Ther- mometer goes through the Bezel then the Grill Hood and secure with a Wing Nuts. Grill Hood Thermometer Bezel Handle Wing Nuts Lock Washers OM3001D.6 ™ & © Char-Griller / A&J Mfg.
  • Page 17 Step 16: Attach the Grill Hood to the Grill Body using the two Hinge Pins and two Small Cotter Pins provided. Grill Hood Hinge Pin Hinge Pin Grill Body Small Cotter Pins OM3001D.6 ™ & © Char-Griller / A&J Mfg.
  • Page 18 Shield over the Burners then place the Cooking Grates in place. And insert the Uten- sils Hooks into the hole on the Side Shelf. Pot Stand Flare-Up Shields Cooking Grates Utensil Hooks OM3001D.6 ™ & © Char-Griller / A&J Mfg.
  • Page 19 Step 20: Unscrew the Igniter Push Button and insert a “AA” battery into the hole, making sure that the negative side of the battery going in first. Then screw back the Igniter Push Button. Igniter Push Button “AA” Battery Step 21 Tighten all NUTS and BOLTS. OM3001D.6 ™ & © Char-Griller / A&J Mfg.
  • Page 20 Any remaining glue residue can be cleaned off with a spray lubri- cant like WD-40 . Do NOT use any other type of solvent or cleaner because this will damage the finish/paint/coating on the grill. OM3001D.6 ™ & © Char-Griller / A&J Mfg.

  • Page 21: Connecting Gas Cylinder

    (refer to illustration under step 22 of page 17). DANGER: Never store a spare propane cylinder near this grill. A fire causing death or serious injury may occur if the above is not followed exactly. OM3001D.6 ™ & © Char-Griller / A&J Mfg.

  • Page 22: Cleaning And Care

    Non abrasive scour- ing powder can be used on stubborn stains, then rinse with water. Heat Shield – Clean residue with wire brush and wash with soapy water. OM3001D.6 ™ & © Char-Griller / A&J Mfg.
  • Page 23 Inspect burner for any damage (cracks or holes). If damage is found, replace with new burner. Reinstall burner; check to insure that gas valve orifices are cor- rectly positioned inside burner inlet (venturi). Also check position of spark elec- trode. OM3001D.6 ™ & © Char-Griller / A&J Mfg.

  • Page 24: Checking For Leaks

    If bubbles appear, you have a leak. Check the regulator connection as follows: Disconnect regulator from the tank and recon- nect, making sure the connection is secure. Retest with solution. If you contin- ue to see bubbles, replace the cylinder. OM3001D.6 ™ & © Char-Griller / A&J Mfg.

  • Page 25: Lighting Your Grill

    5 minutes before re-lighting. Clean your grill after each use, DO NOT use abrasive or flammable cleaners, as it will damage the parts of this product and may start a fire. OM3001D.6 ™ & © Char-Griller / A&J Mfg.

  • Page 26: Side Burner

    Flame should be a Blue / Yellow color. To visually check that the burner is operating, look at the burner flame through the flame viewing hole. The flame should be approximately 1/2-3/4 inch long with the high setting. OM3001D.6 ™ & © Char-Griller / A&J Mfg.

  • Page 27: Cooking Grate

    2. Press in knob and rotate counter-clockwise to the High setting and burner should light immediately. 3. Adjust burners to desired cooking settings Cooking Grate Match Holder Chain Burner Ports OM3001D.6 ™ & © Char-Griller / A&J Mfg.

  • Page 28: Trouble Shooting

    30 seconds and then light the grill. Irregular flame pattern, Burner ports are clogged Clean Burner ports flame does not run the or blocked. full length of burner. OM3001D.6 ™ & © Char-Griller / A&J Mfg.
  • Page 29 Baked on grease buildup has Clean inside of lid thorough- be peeling turned to carbon and is flak- ly. The lid is not painted on - like paint peeling ing off. the inside OM3001D.6 ™ & © Char-Griller / A&J Mfg.

  • Page 30: Grill Preparation

    PROPERLY CARED FOR. 3. You may fill unwanted holes with Nuts & Bolts (Not Provided). NOTE: Smoke will escape from areas other than the smokestacks. This will not affect your cooking . OM3001D.6 ™ & © Char-Griller / A&J Mfg.

  • Page 31: Recipes

    (hot) position for 1 min each side before lowering grate and closing lid. *OR SMOKE by placing birds in center of GRID with fire in both ends of FIRE BOX. OM3001D.6 ™ & © Char-Griller / A&J Mfg.
  • Page 32 50 minutes. Turn after 25 minutes (no need to turn if smoked). Squeeze to check for doneness. SWEET CORN IN HUSKS: Trim excess silk from end and soak in cold salted water 1 hour before grilling. Grill 25 minutes – turning several times. OM3001D.6 ™ & © Char-Griller / A&J Mfg.

  • Page 33: Accessories

    Side Fire Box #22424 For Charcoal grilling Attaches to grill in minutes Visit our online store at: www.chargriller.com Apron #8805 for more Char-Griller ® Machine Washable Professional Accessories ™ Two Front Pockets Adjustable Straps OM3001D.6 ™ & © Char-Griller / A&J Mfg.
  • Page 34 For current pricing, visit www.CharGriller.com or call 912-638-4724 Qty. Product Price Qty. Product Price Tank Cover Rotisserie Adjustable Fit Apron Side Fire Box #22424 Cover For Grill #3055 Raw Cast Iron Grate Shipping Charge ORDER NOW! Total OM3001D.6 ™ & © Char-Griller / A&J Mfg.
  • Page 35 Page intentionally left blank for notes OM3001D.6 ™ & © Char-Griller / A&J Mfg.
