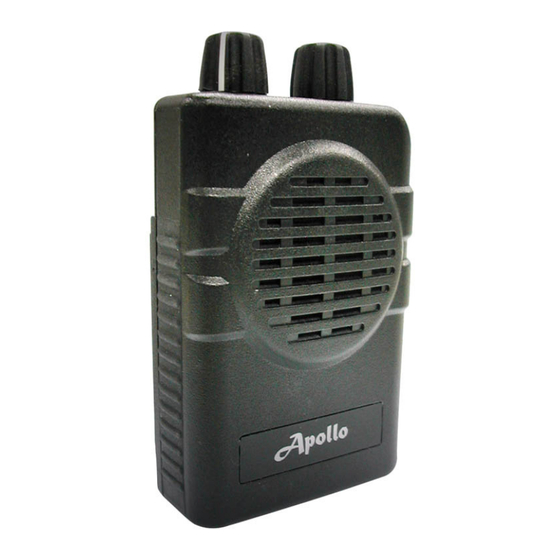

- Page 1 Voice Pager MODEL： ： ： ： VP200...
-
Page 2: Table Of Contents
QUIPMENT EQUIRED ................................ 1 ROGRAMMING NTERFACE INSTALLING PROGRAMMER SOFTWARE..........................2 .................................... 2 NSTALLATION ....................................5 UNNING CONNECTING PROGRAMMER TO VP200 ...........................6 VP200 PROGRAMMING ................................7 ................................... 7 NTRODUCTION ..............................8 TARTING THE ROGRAMMER ....................................9 Menu bar....................................9 Serial Setting..................................10 Serial No ..................................... 10 Tone System..................................11... -
Page 3: Getting Started
PAGER PROGRAMMING SOFTWARE Getting Started Getting Started The VP200 Pager Programming Software provides the flexibility to program VP200 pagers to meet individual requirements. To obtain the best results from the product, please take a few minutes to read this instruction guide. -
Page 4: Installing Programmer Software
VP200 PAGER PROGRAMMING SOFTWARE Installing Programmer Software Installing Programmer Software Installation Install the programmer software into a PC as follows: 1. Uncompress the VP200_Setup.zip and save them in a temporary directory. 2. Double click the setup.exe file. Click on “Y”. - Page 5 VP200 PAGER PROGRAMMING SOFTWARE Installing Programmer Software 5. Choose where the program should be installed and click “Next”. 6. On the Select Program Folder screen, choose where you would like the program to show up in your start menu and click “Install”.
- Page 6 7. If you had installed USB driver then click “Finish” on the Setup Complete screen and VP200 Pager Programmer has been installed on your computer. 8. If you did not install USB driver then click “OK” to install USB driver.
-
Page 7: Running
PAGER PROGRAMMING SOFTWARE Installing Programmer Software 9. Please reboot your computer after USB driver and programming software installed. Running You now have the program installed. To run it from the Start menu/ Programs/ Gold Apollo /VP200 Pager Programmer. September 7, 2007... -
Page 8: Connecting Programmer To Vp200
Refer to Figure then connect the programmer kit as follows: 1. At the rear of the PC, connect the USB cable Type A Male to the USB port. 2. Plug the USB cable Type B Male into USB connector of the VP200 programmer. Hardware installation is complete. -
Page 9: Vp200 Programming
8. Observe the position of the programming pins and insert the VP200 into the VP200 programming nest. The red indicator on the programming interface should light. -
Page 10: Starting The Programmer
VP200 Programming Starting the Programmer 1. The application can be launched from Start → Programs → Gold Apollo → VP200 Pager Programmer. The following window appears: 2. Input your password. If key in wrong password for 3 times, the system shuts off automatically. -
Page 11: Main Menu
Open a VP200 code-plug file. The file has the extension “.tbl”. File | Save Save the current code-plug data to a file. If the code-plug data file has already been saved, VP200 suggests the same filename to you click on Save, the file is overwritten. September 7, 2007... -
Page 12: Serial Setting
COM port in the computer and define the COM port that already connected with VP200 programmer as pre-programmed. Serial No The serial number of the VP200. After the scanner reading the serial number, it can only be for use of writing into EEPROM. September 7, 2007... -
Page 13: Tone System
If USER is selected, then any address tone frequency can be entered if proper tone spacing is maintained and between 280.0Hz and 3500.0Hz. Channel The model of VP200 is supported two channels. Here is an example for channel F1. September 7, 2007... - Page 14 VP200 PAGER PROGRAMMING SOFTWARE VP200 Programming Frequency Channel F1 Enter the frequency of operation for the channel. Channel Space Select one of the channel spacing. The option has 12.5K, 10K, 6.25K, 2.5K or Auto. Call Tone CALL #1 If select this check box, the call address is always on.
- Page 15 VP200 PAGER PROGRAMMING SOFTWARE VP200 Programming Alert Tone Type Select one of the Alert Tone type. The options has Standard, Continuous, User defines. Alert Patten Enter in the tones A; B; C; D in the sequence in which you would like them to be heard.
-
Page 16: Setting
VP200 PAGER PROGRAMMING SOFTWARE VP200 Programming Setting Model Options Privacy Enable If select this check box, it can prevent the reset button from being used to monitor the channel. Disable Power Save If select this check box, the Power Save is disable. - Page 17 VP200 PAGER PROGRAMMING SOFTWARE VP200 Programming FIX Alert If select this check box, the pager operates in the “fixed alert” mode. This means the tone alert is at maximum volume regardless of the position of the volume control. If it isn’t selected, then the alert tone and voice audio level are adjustable using the volume control.
- Page 18 VP200 PAGER PROGRAMMING SOFTWARE VP200 Programming Reminder When “Save voice” is present, this option establishes the time witch the pager to beep periodically indicating an unread message. The option has Disable、30 Second、60 Second、120 Second. Save voice Enable or disable stored voice on models with this option.
- Page 19 VP200 PAGER PROGRAMMING SOFTWARE VP200 Programming Alert Tonality Each letter can have possible waking audio frequencies from 150 cycles per second to 5.49 kHz. The system rounds entered frequency off depending upon the possibilities of the internal frequency divider on or.
