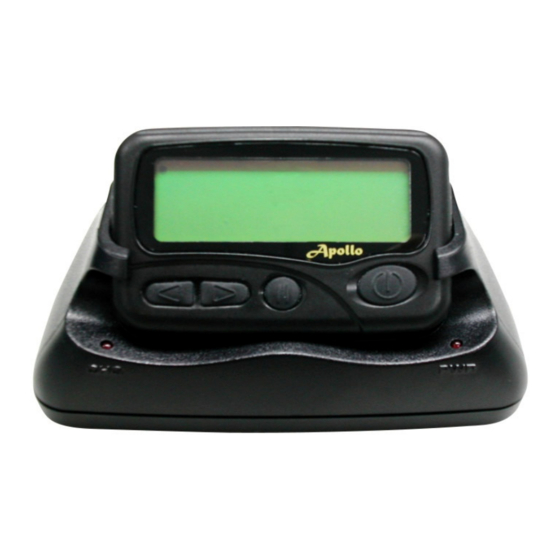

Gold Apollo AL-A27 Programming Manual

Alpha-numeric display pager
Hide thumbs Also See for AL-A27:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AL-A27 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gold Apollo AL-A27

Summary of Contents for Gold Apollo AL-A27

  • Page 2: Table Of Contents

    ALA27 PAGER PROGRAMMING SOFTWARE Contents Contents GETTING STARTED .................................. 1 ................................1 QUIPMENT EQUIRED ..................................1 QUIPMENT ETUP INSTALLING PROGRAMMER SOFTWARE ......................... 3 .................................... 3 NSTALLATION ....................................6 UNNING ALA27 PROGRAMMING ................................7 ................................... 7 NTRODUCTION ..............................7 TARTING THE ROGRAMMER ...............................

  • Page 3: Getting Started

    ALA27 PAGER PROGRAMMING SOFTWARE Getting Started Getting Started The ALA27 Pager Programming software, provides the flexibility to program ALA27 pagers to meet individual requirements. To obtain the best results from the product, please take a few minutes to read this instruction guide. Equipment Required To install and operate the programmer, you need a system that meets the following minimum requirements:...
  • Page 4 ALA27 PAGER PROGRAMMING SOFTWARE Getting Started...

  • Page 5: Installing Programmer Software

    ALA27 PAGER PROGRAMMING SOFTWARE Installing Programmer Software Installing Programmer Software Installation Install the programmer software into a PC as follows: Uncompress the ALA27V369.zip and save them in a temporary directory. Double click the setup.exe file. Click on “Y”. Click “Next” on the Welcome screen. Enter your user information and click “Next”.
  • Page 6 ALA27 PAGER PROGRAMMING SOFTWARE Installing Programmer Software Choose where the program should be installed and click “Next”. On the Select Program Folder screen choose where you would like the program to show up in your start menu and click “Install”.
  • Page 7 ALA27 PAGER PROGRAMMING SOFTWARE Installing Programmer Software Click “Finish” on the Setup Complete screen.

  • Page 8: Running

    ALA27 PAGER PROGRAMMING SOFTWARE Installing Programmer Software Running You now have the program installed. To run it from the Start menu/ Programs/ Gold Apollo /ALA27 Pager Programmer...

  • Page 9: Ala27 Programming

    ¥  ©    ¥  £     ¥  ©    ¥  £     ¥  ©    ¥  £     The application can be launched from Gold Apollo ¨ ¨ ¨...
  • Page 10 ALA27 PAGER PROGRAMMING SOFTWARE ALA27 Programming Now, the system examines that the ALA27 programmer is well installed. If any questions, the following window appears     Please re-check the ALA27 programmer and printer port are well installed or not.

  • Page 11: Code And Features Menu

    ALA27 PAGER PROGRAMMING SOFTWARE ALA27 Programming Code and Features Menu Frequency Range Of Frequency You can select the range of frequency and all setting will load default value. Frequency Of Pager The frequency is on which the pager operates. POCSAG Signal Baud Rate The baud rate is on which the pager operates..

  • Page 12: Capcode (Decimal Address)

    ALA27 PAGER PROGRAMMING SOFTWARE ALA27 Programming Capcode (Decimal Address) Cap #1 Please input 1 Capcode (7 Dec digits between 8 and 2097151). Enable or disable 2 Capcode (address). Click to set function bit(A ! ! ! ! B ! ! ! ! C ! ! ! ! D) message control.
  • Page 13 ALA27 PAGER PROGRAMMING SOFTWARE ALA27 Programming Function Bit(A ! ! ! ! B ! ! ! ! C ! ! ! ! D) Enable Control: V is Enable, - is disable. Function Bit(A ! ! ! ! B ! ! ! ! C ! ! ! ! D) Priority Alert: V is Enable, - is disable. Function Bit(A ! ! ! ! B ! ! ! ! C ! ! ! ! D) Message Display: N: Standard Number.

  • Page 14: Message Type Status

    ALA27 PAGER PROGRAMMING SOFTWARE ALA27 Programming Function Bit(A ! ! ! ! B ! ! ! ! C ! ! ! ! D) Message Type: P: Personal. 1 to 9: Mail Drop 1 to Mail Drop 9. A to E: Mail Drop A to Mail Drop E. G: Group.
  • Page 15 ALA27 PAGER PROGRAMMING SOFTWARE ALA27 Programming...
  • Page 16 ALA27 PAGER PROGRAMMING SOFTWARE ALA27 Programming The available selections for all personal and group call messages alerts are: 02: 2 sec. 08: 8 sec. 16: 16 sec. 32: 32 sec. CT: continuous. The available selections for mail drop messages alerts are: --: Disable.

  • Page 17: Auto Increase 1 After Write

    ALA27 PAGER PROGRAMMING SOFTWARE ALA27 Programming BP: Short Beep. 01: 1 sec. 16: 16 sec. History The selections are only available on mail-drop addresses. The pager can keep up several history messages. Valid selections are: 0~9. Memory The available selections for mail-drop memory size are: 0.5 KB, 1.0 KB, 1.5KB, 2.0 KB, 2.5 KB, and 3.0 KB.

  • Page 18: Alert And Status

    ALA27 PAGER PROGRAMMING SOFTWARE ALA27 Programming Alert and Status Alerts and Status If it is selected, beep and vibration will active together. If it is selected, error message will be discarded. If it is selected, the pager emits a, low battery cell alert when the battery reaches a low cell state.
  • Page 19 ALA27 PAGER PROGRAMMING SOFTWARE ALA27 Programming This value represents the battery voltage level necessary for the battery gauge to display a full battery. If the battery voltage is higher or equal to this value, the full battery gauge icon is displayed. Valid selections are: 2.54V, 2.50V, 2.48V, 2.46V, 2.43V, 2.40V, 2.38V, 2.35V, and 2.30V.
  • Page 20 ALA27 PAGER PROGRAMMING SOFTWARE ALA27 Programming other messages are discarded. Duplication is not performed on mail-drop messages. The current pager display changes after the selected time frame has expired. Valid selections are: 8 sec, 12 sec, 20 sec, 30 sec. It selects the LCD display contract level.

  • Page 21: Manu Of Pager

    ALA27 PAGER PROGRAMMING SOFTWARE ALA27 Programming Manu Of Pager If it is selected, menu of scroll is disabled. If it is selected, menu of pager off is disabled. If it is selected, menu of auto sleep is disabled. If it is selected, menu of set alarm is disabled. If it is selected, menu of set time is disabled.

  • Page 22: Prompts

    ALA27 PAGER PROGRAMMING SOFTWARE ALA27 Programming If it is selected, enters manual programming password is required. If it is selected, enters manual programming password can be modification. Prompts...

  • Page 23: Prompts Edit

    ALA27 PAGER PROGRAMMING SOFTWARE ALA27 Programming Prompts Edit Each prompt can be customized in the code plug, if desired, or the defaults can be used. File | Open (Ctrl + O) Click “Open” or “Ctrl + O” to open the ALA27 code-plug file. The file has the extension “.tbl ”.

  • Page 24: File | Save (Ctrl + S)

    ALA27 PAGER PROGRAMMING SOFTWARE ALA27 Programming File | Save (Ctrl + S) Click “Save” or “Ctrl + S”, save the current code-plug data to a file. File | Exit (Ctrl + E) Exit the programmer software. Pager | Read (F3) Click “Read”...
  • Page 25 ALA27 PAGER PROGRAMMING SOFTWARE ALA27 Programming...

  • Page 26: Pager | Write (F4)

    ALA27 PAGER PROGRAMMING SOFTWARE ALA27 Programming Pager | Write (F4) Click “Write” or press “F4” to program the ALA27. The status window shows the writing process. When writing process finished, will starting verify process, when it is done, you will see a window of " " " " Verify success # # # # on the screen.
  • Page 27 ALA27 PAGER PROGRAMMING SOFTWARE ALA27 Programming...

  • Page 28: About

    ALA27 PAGER PROGRAMMING SOFTWARE ALA27 Programming About About the ALA27 Pager Programmer software information.
