Summary of Contents for Gold Apollo VP200

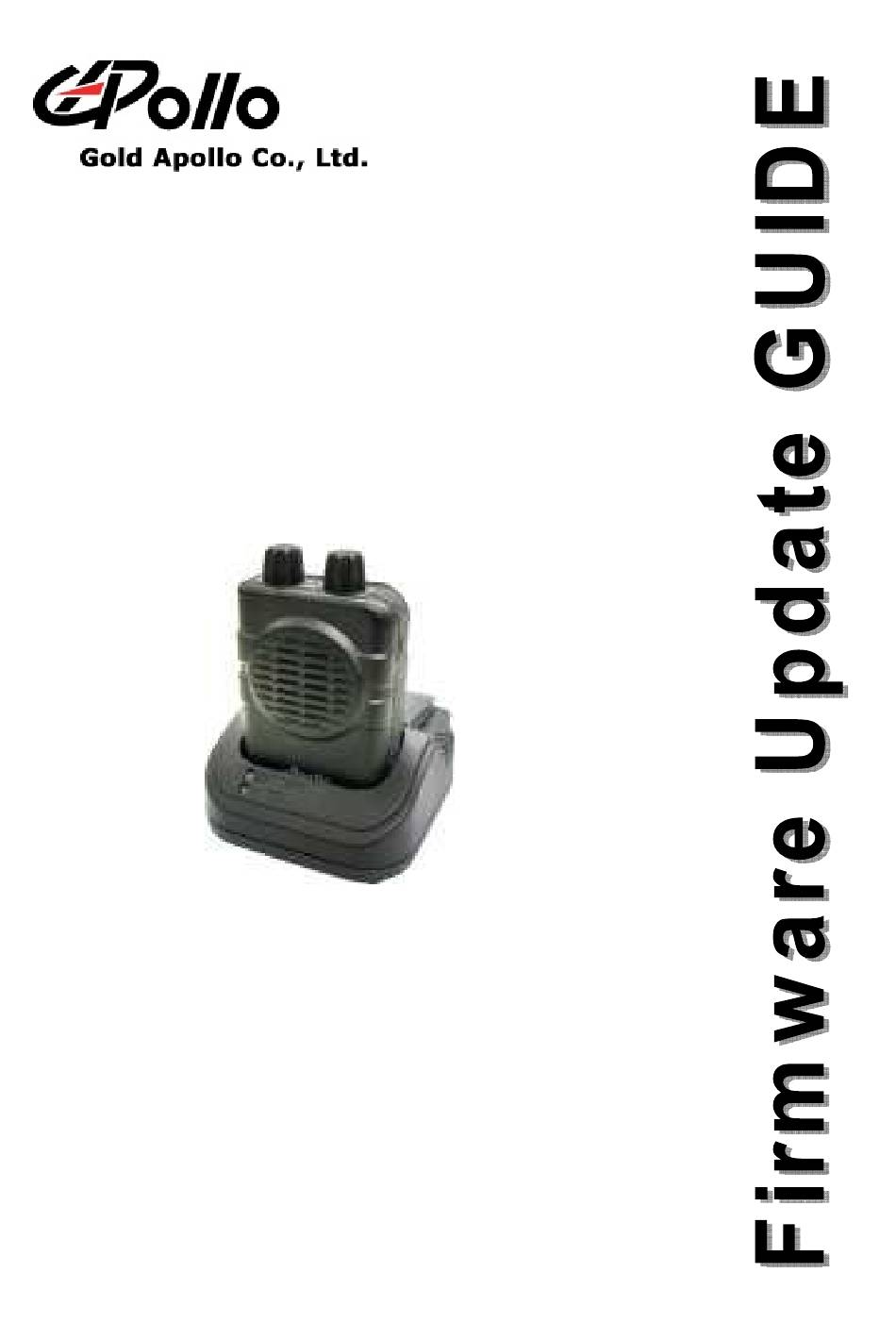

- Page 1 Voice Pager MODEL： ： ： ： VP200...
- Page 2 VP200 Firmware Update VP200 Contents Contents Getting Started..............................1 Equipment Required ........................1 Programming Setup ........................1 Programming the microprocessor........................6 Introduction..........................6 Start the Programming ......................... 6 V1.2 March 16, 2007...
-
Page 3: Getting Started
VP200 Getting Started Getting Started The FlashSta.exe provides is used to upgrade the VP200’s firmware. To obtain the best results from the product, please take a few minutes to read this instruction guide. Equipment Required To re-program the VP200, you must meet the following minimum requirements: A personal computer (PC) with USB port. - Page 4 VP200 Firmware Update VP200 Getting Started 1. Open up your “System Properties” Click “Start” right-click on "My Computer" click the “Properties” March 16, 2007...
- Page 5 VP200 Firmware Update VP200 Getting Started Click “Start” “Control Panel” “System” (Note: The COM port assignment of the USB to Serial adapter varies on your computer hardware configuration. Windows will check what COM port are unused or free in your computer and assigns that port number to the device.)
- Page 6 VP200 Firmware Update VP200 Getting Started 2. Click the “Hardware” tab Click the “Device Manager” button and wait for the “Device Manager” dialogue box to appear. March 16, 2007...
- Page 7 VP200 Firmware Update VP200 Getting Started 3. Click the "+" by "Ports (COM & LPT)". You should see the Prolific USB-to-Serial Comm Port (COM3) device listing. This also means that Windows has assigned the device to COM3 port.. March 16, 2007...
- Page 8 Programmer. 4. Rotate the ON-OFF SWITCH/VOLUME CONTROL clockwise to turn on the alert VP200. If you hear beep sounds or vibrator after turn on the pager, it means bad connection, please confirm the VP200 is set on the programmer tray and USB is connected to a computer properly.
- Page 9 Programming the microprocessor 3. If the “ID Check” window does not appear and the following window appears, this means that there has been a communication failure to the VP200. Click “Cancel” to close FlashSta.exe. Check that the VP200 is set on the...
- Page 10 VP200 Firmware Update VP200 Programming the microprocessor 5. Click on the “OK” button and wait for the ‘M16C Flash Start’ dialogue box to appear. March 16, 2007...
- Page 11 VP200 Firmware Update VP200 Programming the microprocessor 6. Click on the “Setting…” button and wait for the “Set baudrate” dialogue box to appear, select “19200” as Baud rate, select “40” as Program_intervals(ms). March 16, 2007...
- Page 12 Programming the microprocessor 7. Wait for the “M16C Flash Start” dialogue box to appear. Click “E.P.R…” button to remove any previous software form the VP200 memory, followed by a Program cycle, followed by a Read verify check. March 16, 2007...
- Page 13 VP200 Firmware Update VP200 Programming the microprocessor 8. Wait for the “Erase” dialogue box to appear and click on the “OK” button to start programming. March 16, 2007...
- Page 14 VP200 Firmware Update VP200 Programming the microprocessor 9. When programming has completed, the message “Program OK” should appear. Click “OK” to close the popup and click “Exit” to quit FlashSta.exe. Wait for the window to close before continuing. March 16, 2007...
