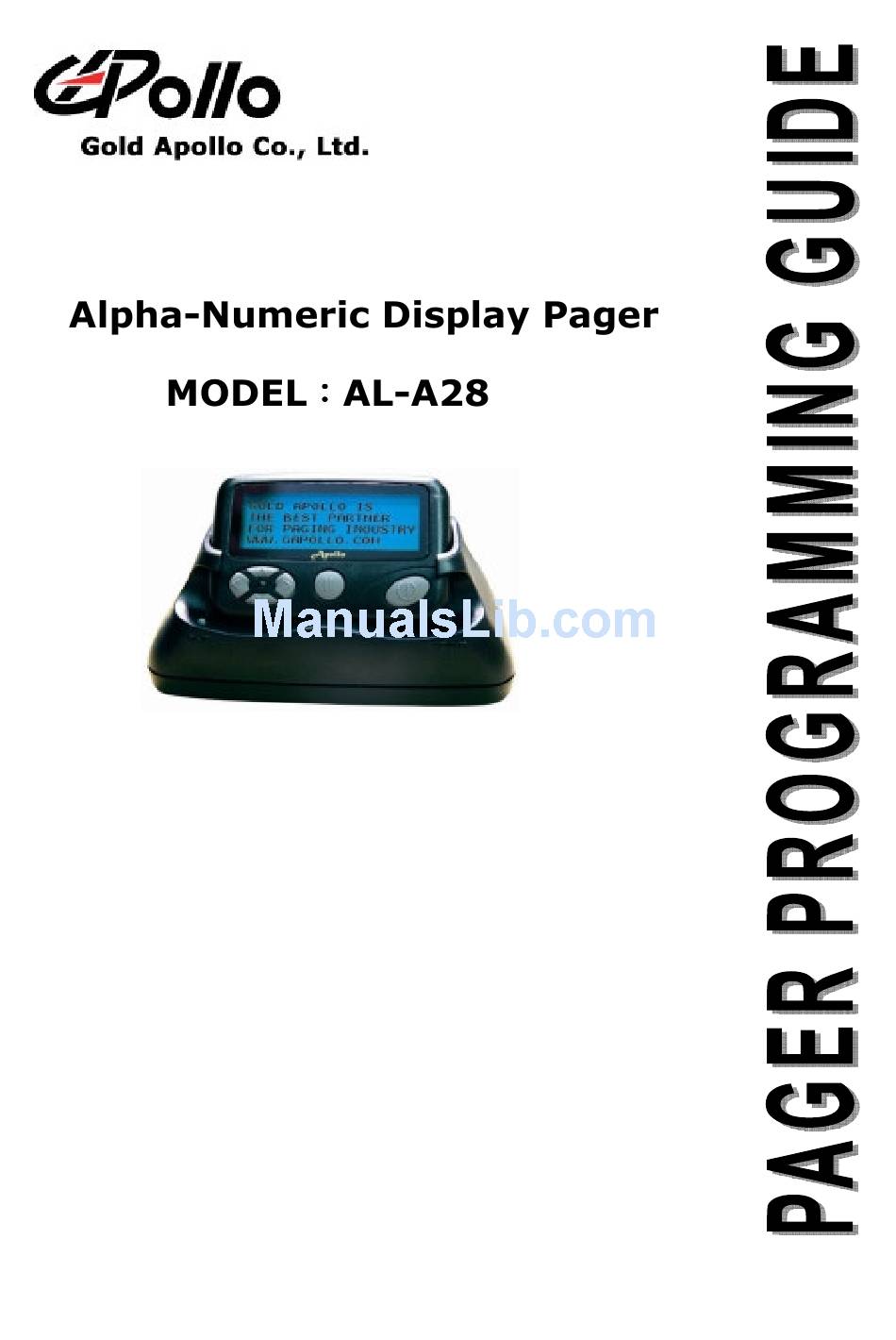

Gold Apollo AL-A28 Programming Manual

Alpha-numeric display
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Gold Apollo AL-A28

Summary of Contents for Gold Apollo AL-A28

  • Page 2: Table Of Contents

    ALA28 PAGER PROGRAMMING SOFTWARE Contents Contents GETTING STARTED .................................. 1 ................................1 QUIPMENT EQUIRED ..................................1 QUIPMENT ETUP INSTALLING PROGRAMMER SOFTWARE ......................... 3 .................................... 3 NSTALLATION ....................................6 UNNING ALA28 PROGRAMMING ................................7 ................................... 7 NTRODUCTION ..............................7 TARTING THE ROGRAMMER ...............................

  • Page 3: Getting Started

    ALA28 PAGER PROGRAMMING SOFTWARE Getting Started Getting Started The ALA28 Pager Programming software, provides the flexibility to program ALA28 pagers to meet individual requirements. To obtain the best results from the product, please take a few minutes to read this instruction guide. Equipment Required To install and operate the programmer, you need a system that meets the following minimum requirements:...
  • Page 4 ALA28 PAGER PROGRAMMING SOFTWARE Getting Started...

  • Page 5: Installing Programmer Software

    ALA28 PAGER PROGRAMMING SOFTWARE Installing Programmer Software Installing Programmer Software Installation Install the programmer software into a PC as follows: Uncompress the ALA28V375.zip and save them in a temporary directory. Double click the setup.exe file. Click on “Y”. Click “Next” on the Welcome screen. Enter your user information and click “Next”.
  • Page 6 ALA28 PAGER PROGRAMMING SOFTWARE Installing Programmer Software Choose where the program should be installed and click “Next”. On the Select Program Folder screen choose where you would like the program to show up in your start menu and click “Install”.
  • Page 7 ALA28 PAGER PROGRAMMING SOFTWARE Installing Programmer Software Click “Finish” on the Setup Complete screen.

  • Page 8: Running

    ALA28 PAGER PROGRAMMING SOFTWARE Installing Programmer Software Running You now have the program installed. To run it from the Start menu/ Programs/ Gold Apollo /ALA28 Pager Programmer...

  • Page 9: Ala28 Programming

    ¥  ©    ¥  £     ¥  ©    ¥  £     ¥  ©    ¥  £     The application can be launched from Gold Apollo ¨ ¨ ¨...
  • Page 10 ALA28 PAGER PROGRAMMING SOFTWARE ALA28 Programming Now, the system examines that the ALA28 programmer is well installed. If any questions, the following window appears     Please re-check the ALA28 programmer and printer port are well installed or not.

  • Page 11: Code And Features Menu

    ALA28 PAGER PROGRAMMING SOFTWARE ALA28 Programming Code and Features Menu Frequency You can select the range of frequency and all setting will load default value. The frequency is on which the pager operates. The baud rate is on which the pager operates.

  • Page 12: Capcode (Decimal Address)

    ALA28 PAGER PROGRAMMING SOFTWARE ALA28 Programming Capcode (Decimal Address) Cap #1 Please input 1 Capcode (7 Dec digits between 8 and 2097151). Enable or disable 2 Capcode (address). Click to set function bit(A ! ! ! ! B ! ! ! ! C ! ! ! ! D) message control.
  • Page 13 ALA28 PAGER PROGRAMMING SOFTWARE ALA28 Programming Function Bit(A ! ! ! ! B ! ! ! ! C ! ! ! ! D) Message Display: N: STD Number. P: PRC Number. A: Alpha number. I: Ideographic. T: Tone only D: Disable...

  • Page 14: Message Type Status

    ALA28 PAGER PROGRAMMING SOFTWARE ALA28 Programming Function Bit(A ! ! ! ! B ! ! ! ! C ! ! ! ! D) Priority Alert: V is Enable, - is disable. Function Bit(A ! ! ! ! B ! ! ! ! C ! ! ! ! D) Message Type: P: Personal.
  • Page 15 ALA28 PAGER PROGRAMMING SOFTWARE ALA28 Programming...

  • Page 16: Auto Increase 1 After Write

    ALA28 PAGER PROGRAMMING SOFTWARE ALA28 Programming The available selections for all personal and group call messages alerts are: 02: 2 sec. 08: 8 sec. 16: 16 sec. 32: 32 sec. CT: continuous. The available selections for mail drop messages alerts are: --: Disable.

  • Page 17: Alert And Status

    ALA28 PAGER PROGRAMMING SOFTWARE ALA28 Programming Alert and Status Alerts and Status If it is selected, duplication detection is performed on all personal messages with the same message type as the new message, on a character by character basis. Error characters are ignored during the check. If all non-error characters in both messages match, the existing matching message is flagged as a duplicate.
  • Page 18 ALA28 PAGER PROGRAMMING SOFTWARE ALA28 Programming This value represents the battery voltage level necessary for the battery gauge to display a full battery. If the battery voltage is higher or equal to this value, the full battery gauge icon is displayed. Valid selections are: 1.58V, 1.53V, 1.48V, 1.43V, 1.39V, 1.35V, 1.29V, 1.23V, 1.19V, 1.14V, 1.09V, 1.05V, and 1.00V.
  • Page 19 ALA28 PAGER PROGRAMMING SOFTWARE ALA28 Programming If it is selected, then the message most length is 2,000 characters, otherwise the length only can be 300 characters. If it is selected, beep and vibration will active together. If it is selected, the message will indicate the counter number at first. If “Direct”...

  • Page 20: Manu Of Pager

    ALA28 PAGER PROGRAMMING SOFTWARE ALA28 Programming The current pager display changes after the selected time frame has expired. Valid selections are: 8 sec, 12 sec, 20 sec and 30 sec. It selects the LCD display contract level. The value is a sequential lockout timer begins when a message arrives and is flagged as being sequentially locked out.
  • Page 21 ALA28 PAGER PROGRAMMING SOFTWARE ALA28 Programming If it is selected, menu of set alarm is disabled. If it is selected, menu of auto sleep is disabled. If it is selected, menu of delete all is disabled. If it is selected, menu of pager off is disabled. If it is selected, menu of delete is disabled.

  • Page 22: Manual Write

    ALA28 PAGER PROGRAMMING SOFTWARE ALA28 Programming Manual Write If it is selected, manual write enable. If it is selected, frequency modification is enabled at manual programming. If it is selected, enters manual programming password is required. If it is selected, enters manual programming password can be modification. Prompts...

  • Page 23: Prompts Edit

    ALA28 PAGER PROGRAMMING SOFTWARE ALA28 Programming Prompts Edit Each prompt can be customized in the code plug, if desired, or the defaults can be used.

  • Page 24: Source Prompts

    ALA28 PAGER PROGRAMMING SOFTWARE ALA28 Programming Source Prompts...

  • Page 25: File | Open (Ctrl + O)

    ALA28 PAGER PROGRAMMING SOFTWARE ALA28 Programming Each prompt can be customized in the code-lug, if desired, or the defaults can be used. If selected, the text programmed is displayed at the first of the message or end of message. File | Open (Ctrl + O) Click “Open”...

  • Page 26: File | Exit (Ctrl + E)

    ALA28 PAGER PROGRAMMING SOFTWARE ALA28 Programming File | Exit (Ctrl + E) Exit the programmer software. Pager | Read (F3) Click “Read” or press “F3” to read code-plug data from a ALA28. The status window shows reading process, when it' s done, you will see a message window of "...

  • Page 27: Pager | Write (F4)

    ALA28 PAGER PROGRAMMING SOFTWARE ALA28 Programming Pager | Write (F4) Click “Write” or press “F4” to program the ALA28. The status window shows the writing process. When writing process finished, will starting verify process, when it is done, you will see a window of " " " " Verify success # # # # on the screen.

  • Page 28: About

    ALA28 PAGER PROGRAMMING SOFTWARE ALA28 Programming About About the ALA28 Pager Programmer software information.
