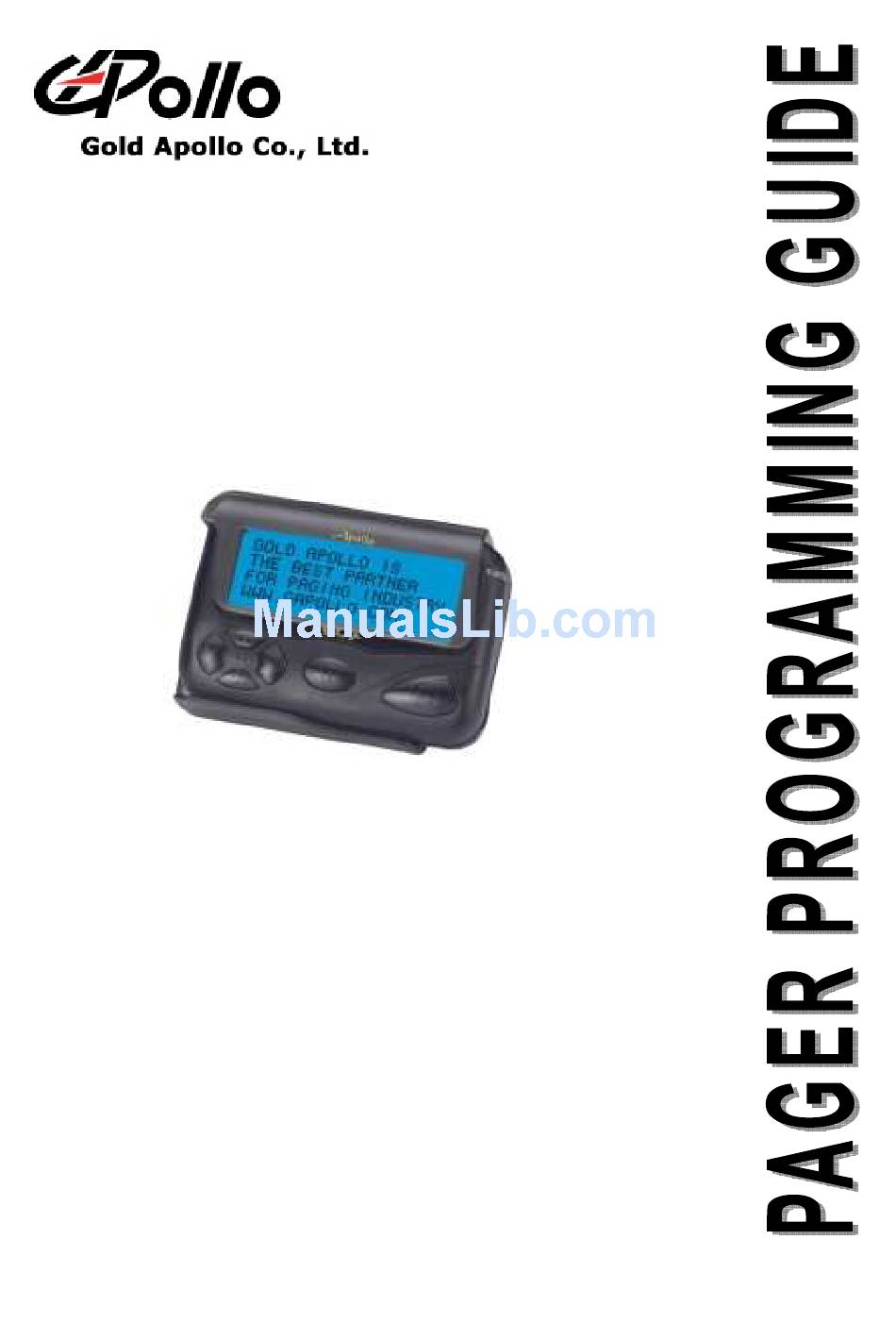

- Page 1 Alpha-Numeric Display Pager MODEL： ： ： ： AL-A26...
-
Page 2: Table Of Contents
ALA26 PAGER PROGRAMMING SOFTWARE Contents Contents GETTING STARTED .................................. 1 ------------------------------------------------------------------------------------------------------------------------- 1 QUIPMENT EQUIRED ------------------------------------------------------------------------------------------------------------------------------ 1 QUIPMENT ETUP INSTALLING PROGRAMMER SOFTWARE ......................... 3 ----------------------------------------------------------------------------------------------------------------------------------- 3 NSTALLATION ----------------------------------------------------------------------------------------------------------------------------------------- 7 UNNING ALA26 PROGRAMMING ................................8 ---------------------------------------------------------------------------------------------------------------------------------- 8 NTRODUCTION ----------------------------------------------------------------------------------------------------------------- 8 TARTING THE ROGRAMMER ----------------------------------------------------------------------------------------------------------------------------------- 10 ------------------------------------------------------------------------------------------------------------------------------------- 10... -
Page 3: Getting Started
ALA26 PAGER PROGRAMMING SOFTWARE Getting Started Getting Started The ALA26 Pager Programming software, provides the flexibility to program ALA26 pagers to meet individual requirements. To obtain the best results from the product, please take a few minutes to read this instruction guide. Equipment Required To install and operate the programmer, you need a system that meets the following minimum requirements:... - Page 4 ALA26 PAGER PROGRAMMING SOFTWARE Getting Started Figure Figure Figure Figure 1 1 1 1 Programmer Hardware Connections Programmer Hardware Connections Programmer Hardware Connections Programmer Hardware Connections May 17, 2007...
-
Page 5: Installing Programmer Software
ALA26 PAGER PROGRAMMING SOFTWARE Installing Programmer Software Installing Programmer Software Installation Install the programmer software into a PC as follows: 1. Uncompress the ALA26(USB)V505.zip and save them in a temporary directory. 2. Double click the setup.exe file. Click on “Y”. 3. - Page 6 ALA26 PAGER PROGRAMMING SOFTWARE Installing Programmer Software 4. Enter your user information and click “Next”. (Note: you must enter at least a single character "into the company field) 5. Choose where the program should be installed and click “Next”. May 17, 2007...
- Page 7 ALA26 PAGER PROGRAMMING SOFTWARE Installing Programmer Software 6. On the Select Program Folder screen choose where you would like the program to show up in your start menu and click “Install”. May 17, 2007...
- Page 8 ALA26 PAGER PROGRAMMING SOFTWARE Installing Programmer Software 7. If you had installed USB driver then select reboot now and click “Finish” on the setup complete screen. 8. If you did not install USB driver, click “OK” to install USB driver. May 17, 2007...
-
Page 9: Running
ALA26 PAGER PROGRAMMING SOFTWARE Installing Programmer Software 9. Please reboot your computer after USB driver and programming software installed. Running You now have the program installed. To run it from the Start menu/ Programs/ Gold Apollo /ALA26 Pager Programmer May 17, 2007... -
Page 10: Ala26 Programming
Starting the Programmer 1. The application can be launched from Start → Programs → Gold Apollo → ALA26 Pager Programmer. The following window appears: 2. Input your password. If key in wrong password for 3 times, the system shuts off automatically. - Page 11 ALA26 PAGER PROGRAMMING SOFTWARE ALA26 Programming 3. Now, the system examines that the ALA26 programmer is well installed. If any questions, the following window appears: 4. Please re-check the ALA26 programmer and printer port are well installed or not. If connection succeeds with the ALA26 programmer, the system enters the Main Menu.
-
Page 12: Main Menu
ALA26 PAGER PROGRAMMING SOFTWARE ALA26 Programming Main Menu Menu bar In the menu bar, there are main menus with submenus like those conventionally used in Windows applications. G File | Open Open the AL924 code-plug file. The file has the extension “.tbl”. G File | Save Save the current code-plug data to a file. - Page 13 ALA26 PAGER PROGRAMMING SOFTWARE ALA26 Programming G Pager | Read Read code-plug data from the pager. G Pager | Verify Verify the pager data. G Help Information about the AL26 pager programming version. May 17, 2007...
-
Page 14: Freq. & Codes
ALA26 PAGER PROGRAMMING SOFTWARE ALA26 Programming Freq. & Codes Frequency 4 Range Of Frequency You can select the range of frequency and all setting will load default value. 4 Frequency Of Pager The frequency is on which the pager operates. 4 POCSAG Signal Baud Rate The baud rate is on which the pager operates. -
Page 15: Capcode (Decimal Address)
ALA26 PAGER PROGRAMMING SOFTWARE ALA26 Programming Capcode (Decimal Address) 4 Cap #1 Please input 1st Capcode (7 Dec digits between 8 and 2097151). Enable or disable 2nd Capcode (address). 4 Fun. Bit Click to set function bit(A、B、C、D) message control. May 17, 2007... - Page 16 ALA26 PAGER PROGRAMMING SOFTWARE ALA26 Programming ִ Disable & Disp. Function Bit(A、B、C、D) Message Display: N: STD Number. P: PRC Number. A: Alpha number. I: Ideographic. T: Tone only D: Disable ִ Priority Function Bit(A、B、C、D) Priority Alert: V is Enable, - is disable. ִ...
-
Page 17: Message Type Status
ALA26 PAGER PROGRAMMING SOFTWARE ALA26 Programming Message Type Status 4 Alert Length Select Click to set personal and mail drop(1~9、A~E) alert length. May 17, 2007... -
Page 18: Auto Increase 1 After Write
ALA26 PAGER PROGRAMMING SOFTWARE ALA26 Programming ִ Personal and Group Alert Length The available selections for all personal and group call messages alerts are: 02: 2 sec. 08: 8 sec. 16: 16 sec. 32: 32 sec. CT: continuous. ִ Mail Drop Alert Length The available selections for mail drop messages alerts are: --: Disable. -
Page 19: Alerts & Status
ALA26 PAGER PROGRAMMING SOFTWARE ALA26 Programming Alerts & Status May 17, 2007... -
Page 20: Alerts And Status
ALA26 PAGER PROGRAMMING SOFTWARE ALA26 Programming Alerts and Status Duplicate Msg. Detect If it is selected, duplication detection is performed on all personal messages with the same message type as the new message, on a character by character basis. Error characters are ignored during the check. If all non-error characters in both messages match, the existing matching message is flagged as a duplicate. - Page 21 ALA26 PAGER PROGRAMMING SOFTWARE ALA26 Programming 4 Battery Gauge Level-Med This value represents the battery voltage level necessary for the battery gauge to display a full battery. If the battery voltage is higher or equal to this value, the full battery gauge icon is displayed.
- Page 22 ALA26 PAGER PROGRAMMING SOFTWARE ALA26 Programming Lowcell Alert ON If it is selected, the pager emits a, low battery cell alert when the battery reaches a low cell state. 4 Polarity It select the RF signal polarity is normal or invert. 4 Sequential Lockout The value is a sequential lockout timer begins when a message arrives and is flagged as being sequentially locked out.
-
Page 23: Manu Of Pager
ALA26 PAGER PROGRAMMING SOFTWARE ALA26 Programming Manu Of Pager Zoom In/Out Disable If it is selected, menu of zoom function will be disabled. Set Scroll Disable If it is selected, menu of scroll is disabled. Set Time Disable If it is selected, menu of set time is disabled. Set Alarm Disable If it is selected, menu of set alarm is disabled. -
Page 24: Manual Write
ALA26 PAGER PROGRAMMING SOFTWARE ALA26 Programming Manual Write Manual Write Enable If it is selected, manual write enable. Frequency Modification Enable If it is selected, frequency modification is enabled at manual programming. Password Required Enable If it is selected, enters manual programming password is required. Password Modification Enable If it is selected, enters manual programming password can be modification. -
Page 25: Prompts Edit
ALA26 PAGER PROGRAMMING SOFTWARE ALA26 Programming Prompts Edit Each prompt can be customized in the code-lug, if desired, or the defaults can be used. May 17, 2007... -
Page 26: Source Prompts
ALA26 PAGER PROGRAMMING SOFTWARE ALA26 Programming Source Prompts May 17, 2007... - Page 27 ALA26 PAGER PROGRAMMING SOFTWARE ALA26 Programming 4 Prompt Control Each prompt can be customized in the code-lug, if desired, or the defaults can be used. If selected, the text programmed is displayed at the first of the message or end of message. May 17, 2007...
