Gold Apollo AL-A26 Programming Manual

Alpha-numeric display pager
Hide thumbs Also See for AL-A26:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Programming Manual
Gold Apollo Co., Ltd.
Alpha-Numeric Display Pager
MODEL : AL-A26

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AL-A26 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gold Apollo AL-A26

Summary of Contents for Gold Apollo AL-A26

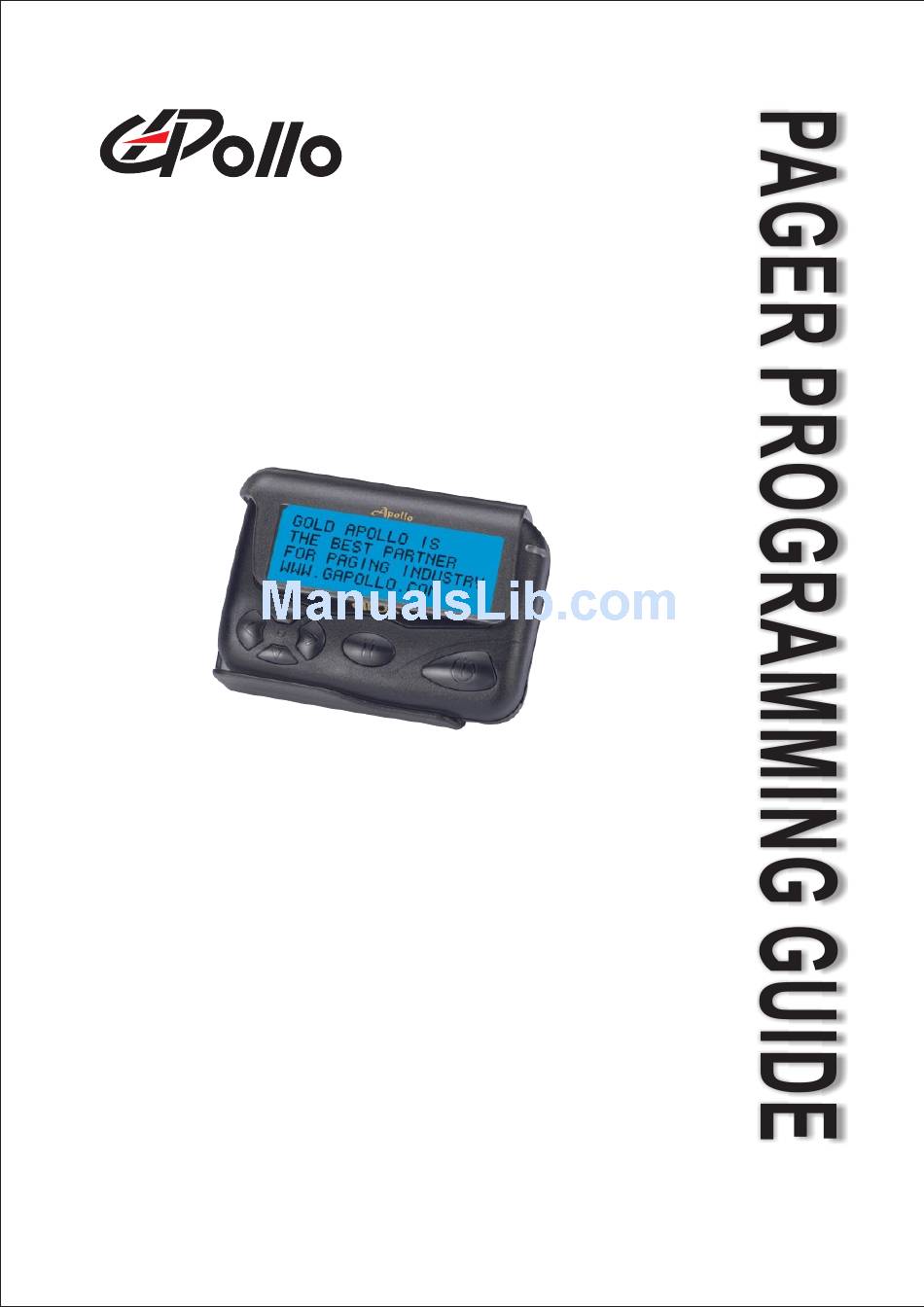

  • Page 1 Gold Apollo Co., Ltd. Alpha-Numeric Display Pager MODEL : AL-A26...

  • Page 2: Table Of Contents

    ALA26 PAGER PROGRAMMING SOFTWARE Contents Contents GETTING STARTED ................................1 ................................1 QUIPMENT EQUIRED ..................................1 QUIPMENT ETUP INSTALLING PROGRAMMER SOFTWARE........................3 ................................... 3 NSTALLATION ....................................6 UNNING ALA26 PROGRAMMING ..............................7 ..................................7 NTRODUCTION ..............................7 TARTING THE ROGRAMMER ..............................

  • Page 3: Getting Started

    ALA26 PAGER PROGRAMMING SOFTWARE Getting Started Getting Started The ALA26 pager Programming software, provides the flexibility to meet individual requirements. To to program ALA26 pagers obtain the best results from the product, please take a few minutes to read this instruction guide. Equipment Required To install and operate the programmer, you need a system that meets the following minimum requirements:...
  • Page 4 ALA26 PAGER PROGRAMMING SOFTWARE Getting Started Power LED Press down on the pager until it is tight in the fixture. Computer AL-A26 Programmer DB25 male-male printer cable Figure 1 Programmer Hardware Connections August 8, 2006...

  • Page 5: Installing Programmer Software

    ALA26 PAGER PROGRAMMING SOFTWARE Installing Programmer Software Installing Programmer Software Installation Install the programmer software into a PC as follows: 1. Uncompress the ALA26V373.zip and save them in a temporary directory. 2. Double click the setup.exe file. Click on “Y”. 3.
  • Page 6 ALA26 PAGER PROGRAMMING SOFTWARE Installing Programmer Software 5. Choose where the program should be installed and click “Next”. 6. On the Select Program Folder screen choose where you would like the program to show up in your start menu and click “Install”. August 8, 2006...
  • Page 7 ALA26 PAGER PROGRAMMING SOFTWARE Installing Programmer Software 7. Click “Finish” on the Setup Complete screen. August 8, 2006...

  • Page 8: Running

    ALA26 PAGER PROGRAMMING SOFTWARE Installing Programmer Software Running You now have the program installed. To run it from the Start menu/Programs / Gold Apollo /ALA26 Pager Programmer August 8, 2006...

  • Page 9: Ala26 Programming

    ALA26 PAGER PROGRAMMING SOFTWARE ALA26 Programming ALA26 Programming Introduction Preparing a Pager for Reading or Programming: ● Establish a computer hardware configuration. ● Run the programming software of ALA26. ● A Power LED illuminates on the Programming Interface to indicate proper contact.

  • Page 10: Code And Features Menu

    ALA26 PAGER PROGRAMMING SOFTWARE ALA26 Programming Now, the system examines that the ALA26 programmer is well installed. If any questions, the following window appears : Please re-check the ALA26 programmer and printer port are well installed or not. If the connection with the ALA26 programmer are OK.

  • Page 11: Frequency

    ALA26 PAGER PROGRAMMING SOFTWARE ALA26 Programming Frequency ● You can select the range of frequency and all setting will load default value. ● The frequency is on which the pager operates. ● The baud rate is on which the pager operates. ●...
  • Page 12 ALA26 PAGER PROGRAMMING SOFTWARE ALA26 Programming August 8, 2006...
  • Page 13 ALA26 PAGER PROGRAMMING SOFTWARE ALA26 Programming ● 、 、 、 Function Bit (A B C D) Message Display: N: STD Number. P: PRC Number. A: Alpha number. I: Ideographic. T: Tone only D: Disable ● 、 、 、 Function Bit (A B C D) Priority Alert: V is Enable, - is disable. ●...

  • Page 14: Message Type Status

    ALA26 PAGER PROGRAMMING SOFTWARE ALA26 Programming Message Type Status ● 、 Click to set personal and mail drop(1~9 A~E) alert length. August 8, 2006...
  • Page 15 ALA26 PAGER PROGRAMMING SOFTWARE ALA26 Programming ● The available selections for all personal and group call messages alerts are: 02: 2 sec. 08: 8 sec. 16: 16 sec. 32: 32 sec.. August 8, 2006...

  • Page 16: Auto Increase 1 After Write

    ALA26 PAGER PROGRAMMING SOFTWARE ALA26 Programming CT: continuous. ● The available selections for mail drop messages alerts are: --: Disable. BP: Short Beep. 01: 1 sec. 16: 16 sec. Auto Increase 1 after write ● 1 capcode always increment by one after write. ●...

  • Page 17: A Lerts And S Tatus

    ALA26 PAGER PROGRAMMING SOFTWARE ALA26 Programming Alert and Status ● If it is selected, duplication detection is performed on all personal messages with the same message type as the new message, on a character by character basis. Error characters are ignored during the check. If all non-error characters in both messages match, the existing matching message is flagged as a duplicate.
  • Page 18 ALA26 PAGER PROGRAMMING SOFTWARE ALA26 Programming ● This value represents the battery voltage level necessary for the battery gauge to display a full battery. If the battery voltage is higher or equal to this value, the full battery gauge icon is displayed. Valid selections are: 1.58V, 1.53V, 1.48V, 1.43V, 1.39V, 1.35V, 1.29V, 1.23V, 1.19V, 1.14V, 1.09V, 1.05V, and 1.00V.

  • Page 19: M Anu O F P Ager

    ALA26 PAGER PROGRAMMING SOFTWARE ALA26 Programming ● It select the RF signal polarity is normal or invert. ● The value is a sequential lockout timer begins when a message arrives and is flagged as being sequentially locked out. If duplicate messages arrive, one of the messages is disregarded and not flagged as a duplicate.

  • Page 20: Manual Write

    ALA26 PAGER PROGRAMMING SOFTWARE ALA26 Programming ● If it is selected, menu of zoom function will be disabled. ● If it is selected, menu of scroll is disabled. ● If it is selected, menu of set time is disabled. ● If it is selected, menu of set alarm is disabled.

  • Page 21: Prompts

    ALA26 PAGER PROGRAMMING SOFTWARE ALA26 Programming ● If it is selected, enters manual programming password can be modification. Prompts Prompts Edit Each prompt can be customized in the code-plug, if desired, or the defaults can be used. August 8, 2006...

  • Page 22: Source Prompts

    ALA26 PAGER PROGRAMMING SOFTWARE ALA26 Programming Source Prompts August 8, 2006...

  • Page 23: File | Open (Ctrl + O)

    ALA26 PAGER PROGRAMMING SOFTWARE ALA26 Programming ● Each prompt can be customized in the code-plug, if desired, or the defaults can be used. If selected, the text programmed is displayed at the first of the message or end of message. File | Open (Ctrl + O) Click “Open”...

  • Page 24: File | Exit (Ctrl + E)

    ALA26 PAGER PROGRAMMING SOFTWARE ALA26 Programming File | Exit (Ctrl + E) Exit the programmer software. Pager | Read (F3) Click “Read” or press “F3” to read code-plug data from a ALA26. The status window shows reading process, when it's done, you will 『...

  • Page 25: Pager | Write (F4)

    ALA26 PAGER PROGRAMMING SOFTWARE ALA26 Programming Pager | Write (F4) Click “Write” or press “F4” to program the ALA26. The status window shows the writing process. When writing process finished, will starting 『 』 verify process, when it is done, you will see a window of Verify success on the screen.

  • Page 26: About

    ALA26 PAGER PROGRAMMING SOFTWARE ALA26 Programming About About the ALA26 Pager Programmer software information. August 8, 2006...
