Gold Apollo AL-A25 Programming Manual

Alpha-numeric display
Hide thumbs Also See for AL-A25:
Table of Contents

Advertisement

Quick Links

See also: Programming Manual
Alpha-Numeric Display Pager
MODEL： ： ： ： AL-A25

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AL-A25 and is the answer not in the manual?

Questions and answers

Related Manuals for Gold Apollo AL-A25

Summary of Contents for Gold Apollo AL-A25

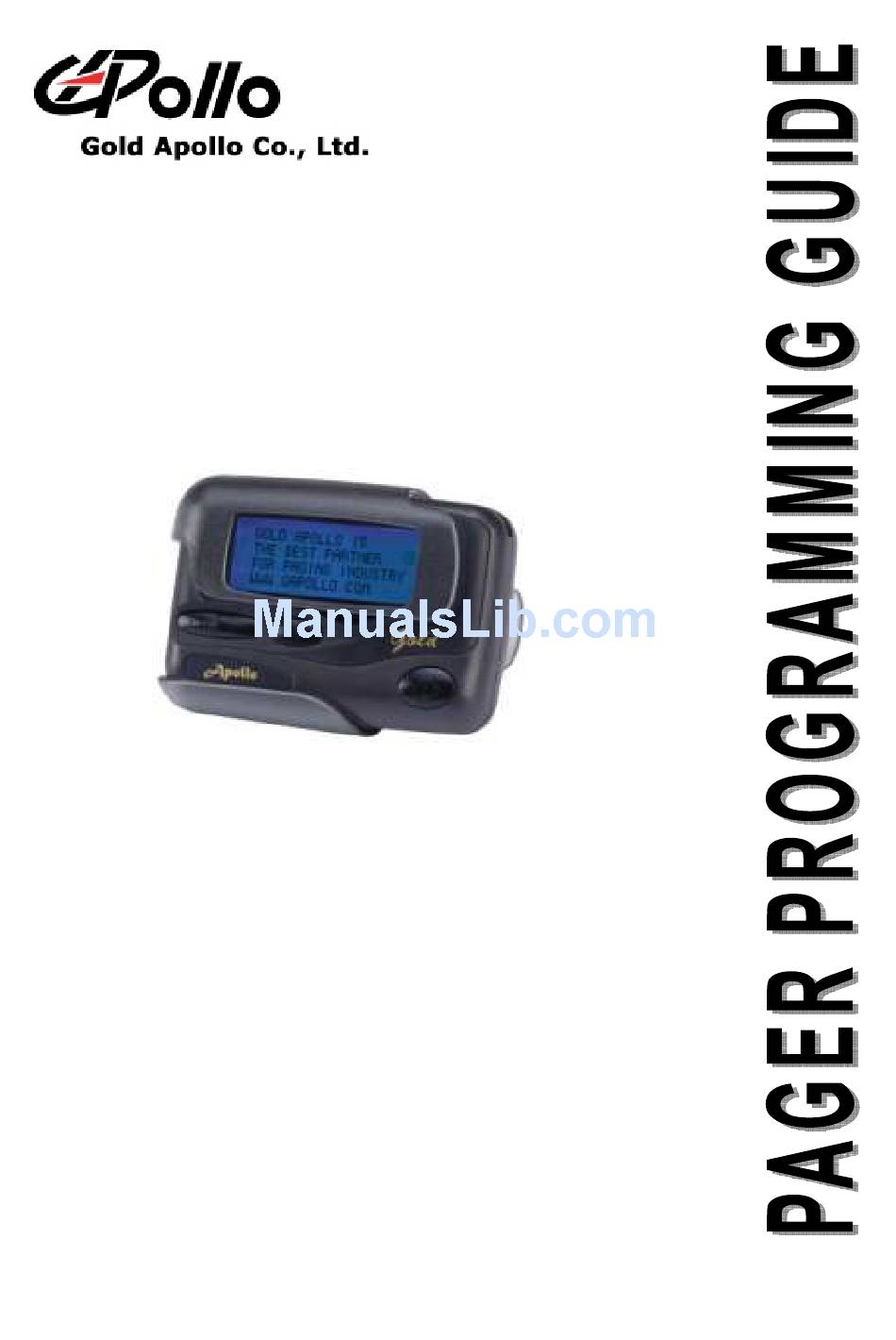

  • Page 1 Alpha-Numeric Display Pager MODEL： ： ： ： AL-A25...

  • Page 2: Table Of Contents

    PAGER PROGRAMMING SOFTWARE ALA25 Contents Contents GETTING STARTED .................................. 1 ------------------------------------------------------------------------------------------------------------------------- 1 QUIPMENT EQUIRED ------------------------------------------------------------------------------------------------------------------------------ 1 QUIPMENT ETUP INSTALLING PROGRAMMER SOFTWARE ......................... 3 ----------------------------------------------------------------------------------------------------------------------------------- 3 NSTALLATION ----------------------------------------------------------------------------------------------------------------------------------------- 7 UNNING ALA25 PROGRAMMING ................................8 ---------------------------------------------------------------------------------------------------------------------------------- 8 NTRODUCTION ----------------------------------------------------------------------------------------------------------------- 8 TARTING THE ROGRAMMER ----------------------------------------------------------------------------------------------------------------------------------- 10 ------------------------------------------------------------------------------------------------------------------------------------- 10...

  • Page 3: Getting Started

    PAGER PROGRAMMING SOFTWARE ALA25 Getting Started Getting Started The ALA25 Pager Programming software, provides the flexibility to program ALA25 pagers to meet individual requirements. To obtain the best results from the product, please take a few minutes to read this instruction guide. Equipment Required To install and operate the programmer, you need a system that meets the following minimum requirements:...
  • Page 4 PAGER PROGRAMMING SOFTWARE ALA25 Getting Started Figure Figure Figure Figure 1 1 1 1 Programmer Hardware Connections Programmer Hardware Connections Programmer Hardware Connections Programmer Hardware Connections May 16, 2007...

  • Page 5: Installing Programmer Software

    PAGER PROGRAMMING SOFTWARE ALA25 Installing Programmer Software Installing Programmer Software Installation Install the programmer software into a PC as follows: 1. Uncompress the ALA25B(USB)V50(NR).zip and save them in a temporary directory. 2. Double click the setup.exe file. Click on “Y”. 3.
  • Page 6 PAGER PROGRAMMING SOFTWARE ALA25 Installing Programmer Software 4. Enter your user information and click “Next”. (Note: you must enter at least a single character "into the company field) 5. Choose where the program should be installed and click “Next”. May 16, 2007...
  • Page 7 PAGER PROGRAMMING SOFTWARE ALA25 Installing Programmer Software 6. On the Select Program Folder screen choose where you would like the program to show up in your start menu and click “Install”. May 16, 2007...
  • Page 8 PAGER PROGRAMMING SOFTWARE ALA25 Installing Programmer Software 7. If you had installed USB driver then select reboot now and click “Finish” on the setup complete screen. 8. If you did not install USB driver, click “OK” to install USB driver. May 16, 2007...

  • Page 9: Running

    PAGER PROGRAMMING SOFTWARE ALA25 Installing Programmer Software 9. Please reboot your computer after USB driver and programming software installed. Running You now have the program installed. To run it from the Start menu/ Programs/ Gold Apollo /ALA25 Pager Programmer May 16, 2007...

  • Page 10: Ala25 Programming

    Starting the Programmer 1. The application can be launched from Start → Programs → Gold Apollo → ALA25 Pager Programmer. The following window appears: 2. Input your password. If key in wrong password for 3 times, the system shuts off automatically.
  • Page 11 PAGER PROGRAMMING SOFTWARE ALA25 ALA25 Programming 3. Now, the system examines that the ALA25 programmer is well installed. If any questions, the following window appears: 4. Please re-check the ALA25 programmer and printer port are well installed or not. If connection succeeds with the ALA25 programmer, the system enters the Main Menu.

  • Page 12: Main Menu

    PAGER PROGRAMMING SOFTWARE ALA25 ALA25 Programming Main Menu Menu bar In the menu bar, there are main menus with submenus like those conventionally used in Windows applications. G File | Open Open the AL924 code-plug file. The file has the extension “.tbl”. G File | Save Save the current code-plug data to a file.
  • Page 13 PAGER PROGRAMMING SOFTWARE ALA25 ALA25 Programming G Pager | Read Read code-plug data from the pager. G Pager | Verify Verify the pager data. G Help Information about the ALA25 pager programming version. May 16, 2007...

  • Page 14: Freq. & Codes

    PAGER PROGRAMMING SOFTWARE ALA25 ALA25 Programming Freq. & Codes Frequency 4 Range Of Frequency You can select the range of frequency and all setting will load default value. 4 Frequency Of Pager The frequency is on which the pager operates. 4 POCSAG Signal Baud Rate The baud rate is on which the pager operates.

  • Page 15: Capcode (Decimal Address)

    PAGER PROGRAMMING SOFTWARE ALA25 ALA25 Programming Capcode (Decimal Address) 4 Cap #1 Please input 1st Capcode (7 Dec digits between 8 and 2097151). Enable or disable 2nd Capcode (address). 4 Fun. Bit Click to set function bit(A、B、C、D) message control. May 16, 2007...
  • Page 16 PAGER PROGRAMMING SOFTWARE ALA25 ALA25 Programming ִ Function Bit(A、B、C、D) Enable Control: V is Enable, - is disable. Priority ִ Function Bit(A、B、C、D) Priority Alert: V is Enable, - is disable. ִ Disp. Function Bit(A、B、C、D) Message Display: N: Standard Number. P: PRC Number. A: Alpha number.

  • Page 17: Message Type Status

    PAGER PROGRAMMING SOFTWARE ALA25 ALA25 Programming Message Type Status 4 Msg. Status Select Click to set personal and mail drop(1~9、A~E) messages status. May 16, 2007...
  • Page 18 PAGER PROGRAMMING SOFTWARE ALA25 ALA25 Programming May 16, 2007...
  • Page 19 PAGER PROGRAMMING SOFTWARE ALA25 ALA25 Programming ִ Personal and Group Alert Length The available selections for all personal and group call messages alerts are: 02: 2 sec. 08: 8 sec. 16: 16 sec. 32: 32 sec. CT: continuous. ִ Mail Drop Alert Length The available selections for mail drop messages alerts are: --: Disable.

  • Page 20: Auto Increase 1 After Write

    PAGER PROGRAMMING SOFTWARE ALA25 ALA25 Programming keep up several history messages. Valid selections are: 0~9. Memory ִ The available selections for mail-drop memory size are: 0.5 KB, 1.0 KB, 1.5KB, 2.0 KB, 2.5 KB, and 3.0 KB. The available selections for personal memory size are: 3 KB ~ 15KB. Auto Increase 1 after write 1st Capcode Auto Increase 1st capcode always increment by one after write.

  • Page 21: Alerts And Status

    PAGER PROGRAMMING SOFTWARE ALA25 ALA25 Programming Alerts and Status May 16, 2007...

  • Page 22: Alerts And Status

    PAGER PROGRAMMING SOFTWARE ALA25 ALA25 Programming Alerts and Status Alerts and Vibrate If it is selected, beep and vibration will active together. 4 Paging Display Mode If “Direct” is selected then the message will show on the display at a message received.
  • Page 23 PAGER PROGRAMMING SOFTWARE ALA25 ALA25 Programming 4 Reminder Duration With this option selected, the time period begins with a newly arrived message and is reset every time a new message is received. Once the time period expires, the pager does not emit any more reminder alerts until a new message arrives. Valid time period selections are: Disable, 2 minutes, 10 minutes and 60 minutes.

  • Page 24: Manu Of Pager

    PAGER PROGRAMMING SOFTWARE ALA25 ALA25 Programming RD Key Delete Enable If it is selected, the RD key can use as delete feature at read message moment. RD Key Pager Off If it is selected, the RD key can use as Pager off feature at time display moment. Long Message Control Enable.

  • Page 25: Manual Write

    PAGER PROGRAMMING SOFTWARE ALA25 ALA25 Programming Set Alarm Disable If it is selected, menu of set alarm is disabled. Set Time Disable If it is selected, menu of set time is disabled. Set Alert Disable If it is selected, menu of set alert is disabled then you must select one of 5 type alerts as your default.

  • Page 26: Prompts Edit

    PAGER PROGRAMMING SOFTWARE ALA25 ALA25 Programming Prompts Edit Each prompt can be customized in the code-lug, if desired, or the defaults can be used. May 16, 2007...
