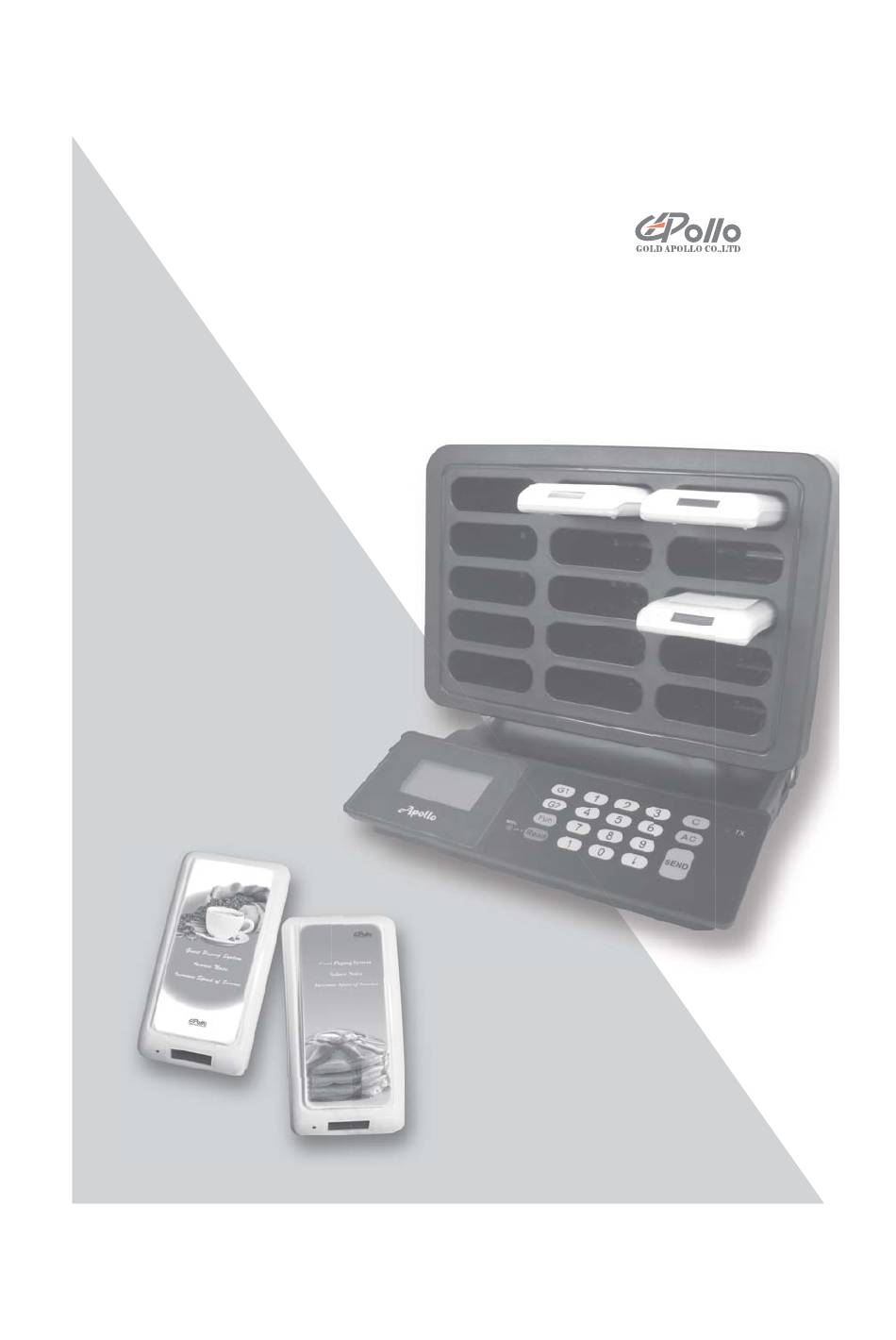

- Page 1 ALL-in-One Transmitter AL-A07 Pager...
-
Page 2: Table Of Contents
CONTENTS Page Product Overview ............1 Control Buttons ............. 2 LCD Display ..............3 Operation ................ 4 System Set Up ..............4 Manual Programming ............4 Calling Pagers ..............4 Turning Off Pagers ............6 Finding Pagers ..............7 Alert Types................. 8 Waiting Time.............. -
Page 3: Product Overview
Product Overview Charging Slots LCD Display USB programmer Control buttons To extention charger base, up to 3 charger base DC jack BNC connector (for antenna) Power On / Off switch... -
Page 4: Control Buttons
Control Buttons SEND Read Keys: Number0~9,C,AC,Send, 〝 〞, 〝 〞 : To page other staff pagers (optional). : To enter “function menu”. : Th e AIO (All In O n e ) tra n smitte r co u ld h a ve Read a n o p tio n to re ce ive r me ssa g e r. -
Page 5: Lcd Display
LCD Display Standby screen Waiting pagers’ numbers Waiting time Indicates the time for the guest to get back after being paged The number being paged For example, give pager No.2 to the guest, No.2 will be shown on the display. -
Page 6: Operation
1. Connect All-in-One transmitter with power adapter. 2. Lock the antenna to the transmitter. 3. Place all AL-A07 pagers into the charging slots. Make sure all the pagers are pushed all the way to the end until you hear “click”. The solid LED red light indicates that the pager is placed in the charger properly. - Page 7 Operation For example, to call pager No.1, press “1 + SEND”. Pager No.1 will alert. “1” will be shown on the “last page number” and the “last paged time” starts counting. SEND Read SEN DI N G M ESSAGE. . . SEND Read After the guest returned the pager, just put the pager back on the...
-
Page 8: Turning Off Pagers
Operation Turning Off Pagers 1. Press “Fun” to enter function menu and select “PAGER OFF”. 3UHVV ³ ´ WR PRYH WKH FXUVRU WR ³ 3$*(5 2))´ 3UHVV “SEND” to enter. M anual Func : 1 .PAGER OFF 2.Find PAGER SEND 3.ALERT T Y PE Read 3UHVV ³... -
Page 9: Finding Pagers
Operation 3. When the “PAGER OFF” function is enable, the user can enter “1900 + SEND” to turn off all the pagers. 1 9 0 0 SEND Read SEN DI N G M ESSAGE... SEND Read Note: The pagers are automatically turned off when placing in the charging slots. -
Page 10: Alert Types
Operation Alert Type The user can set different alert types when calling pagers. There are 4 types of alert (A, B, C & D) can be set. You can modify and assign different types of alert through our programming software. 1. -
Page 11: Waiting Time
Operation Wait Time The user can define the waiting time for each customer based on their experiences. The AIO transmitter will show the waiting time (for reference) on the display. For example, set the waiting time at 15min. If there are 2 customers waiting, then the waiting time will show 30min (2 x 15min). -
Page 12: Range Test
Operation Range Test You can test the transmitting coverage with the “RANGE TEST” function. Move the cursor to “5. RANGE TEST” then press “SEND” to enter. The AIO will keep paging pager No.1 every 10 sec., until the user press “AC” to exit. M anual Func : 3.ALERT T Y PE 4.W AI T T I M E... -
Page 13: Product Specifications
Product Specifications A L-A 07 Model name Frequency 450-454MHz,456-470MHz P aging S ensitivity 512bps -- 5uV /M, 1200bps -- 7uV /M, 2400bps -- 9uV /M B it R ate 512 / 1200 / 2400bps for P OC S A G C hannel S pacing 25K hz / 12.5K hz C ode Format... - Page 14 AL-A07 pager A L-A 07 K ey Features 1. Large area for advertisement ( 45x 107 mm) 2. Tone / Vibration / Flash alert 3. For guest paging / Compact size 4. Highly recommend to use with Desktop transmitter 5. IP67approval 6.
- Page 15 All - in - One Transmitter Operation Key Specifications /Special Features 1. Desk type pocsag transmitter with charger 2. Guest call application 3. Friendly user interface 4. 15 pagers for one set ; extention up to 60 pagers ; 3 extentions smart charger via cable 5.
- Page 16 ALL-in-One Transmitter AL-A07 Pager...
