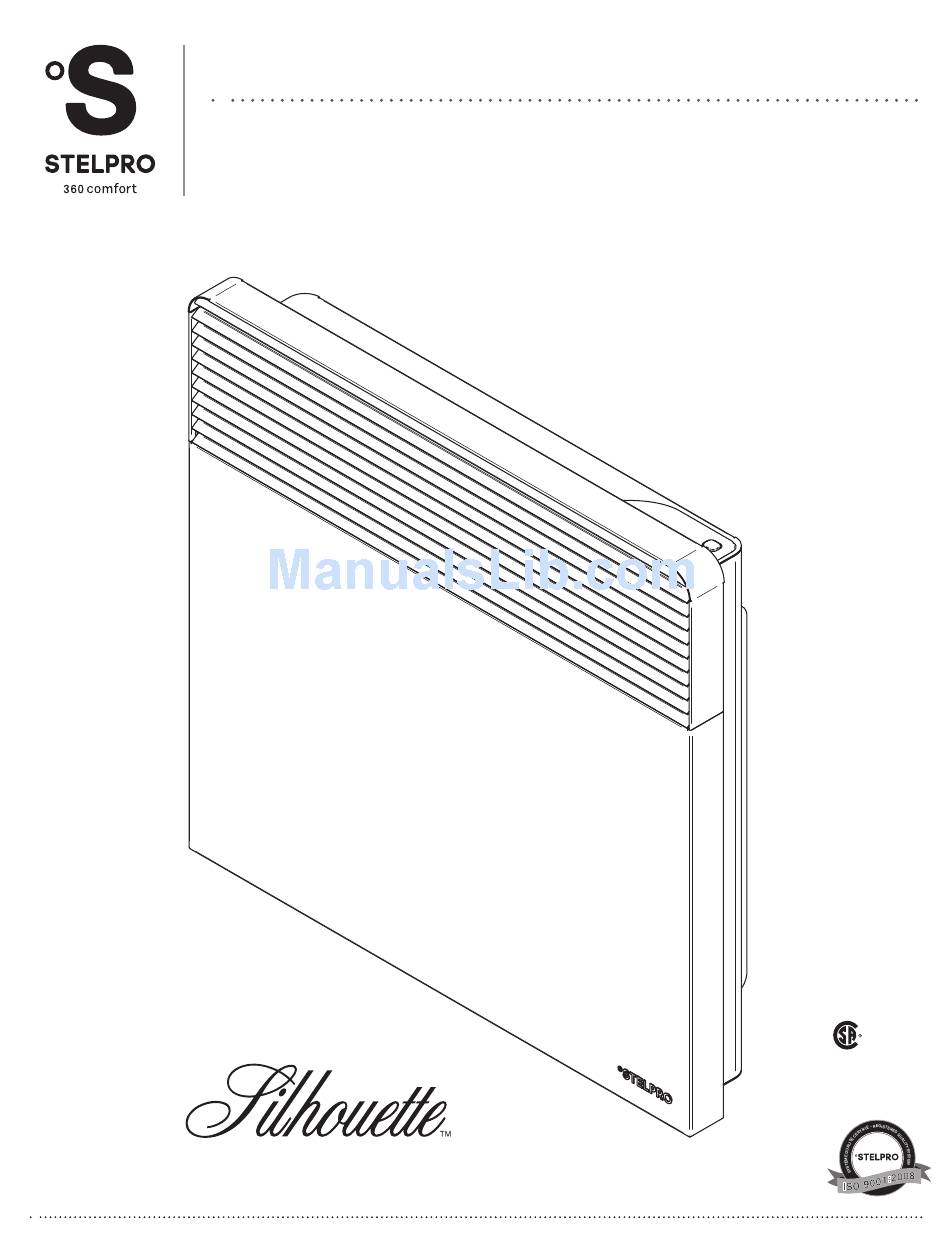

- Page 1 ConveCTor replACemenT ComponenT liST inCluded This unit complies with CSA standards For further information or to consult this guide online, please visit our website at www.stelpro.com INSSIL0914...
- Page 2 If needed, refer to a specialist who will be able to calculate these heat losses and optimize the required capacity or consult the “Online heating calculation” section of the Stelpro Design Web site (residential buildings). To heat a large room and to increase your comfort, it is recommended to install several units instead of one.
-
Page 3: Specifications
SpeCifiCATionS length type Watts volts high models - height : 648 mm (25 1/2 in.) SILH07 750/560 240/208 16 1/2 7.38 16.27 SILH10 1000/750 240/208 7.94 17.5 SILH12 1250/940 240/208 9.41 20.75 SILH15 1500/1125 240/208 26 1/2 11.04 24.34 SILH17 1750/1315 240/208 29 1/4... -
Page 4: Button Functions
inSTAllATion InstallatIon of the wall rack 1. Remove the unit from the wall rack’s hooks. 2. With a pencil, mark the wall at the four anchoring points of the rack. 3. Fasten the rack to the wall, making sure it is level. When drilling into a wall or ceiling, be careful not to damage electrical wiring and other hidden utilities. -
Page 5: Lock Option
DaY MoDe nIght MoDe hoW to set the day tempeRatuRe hoW to set the night tempeRatuRe By pressing down the top or bottom button, you will enter the setting By pressing down the top or bottom button, you will enter the setting mode indicated by the flashing SUN icon. - Page 6 PrecIse electronIc control In order to obtain a precise and optimal ambient temperature reading, the unit must operate on a regular basis, i.e. without significant A chrono-proportional electronic thermostat controls this unit with a temperature variation for at least an hour. (This amount of time high degree of accuracy in order to minimize temperature differences increases if a temperature change of more than 4 degrees is requested.
- Page 7 pRoBlem defective paRt oR paRt to check Overheating - Defective thermostat or wrong thermostat setting The unit cycles under control of the thermal protection - Blocked air vents (overheat indicator) - Faulty connections The heater is on and the breaker trips - voltage higher than that indicated on the nameplate The unit does not heat - One or more defective elements...
-
Page 8: Limited Warranty
Moreover, it does not cover the cost of disconnection, transport, and installation. The warranty is limited to the repair or the replacement of the unit or the refund of its purchase price, at the discretion of stelpro. Any parts replaced or repaired within the warranty period with the written authorization of Stelpro will be warranted for the remainder of the original warranty period.
