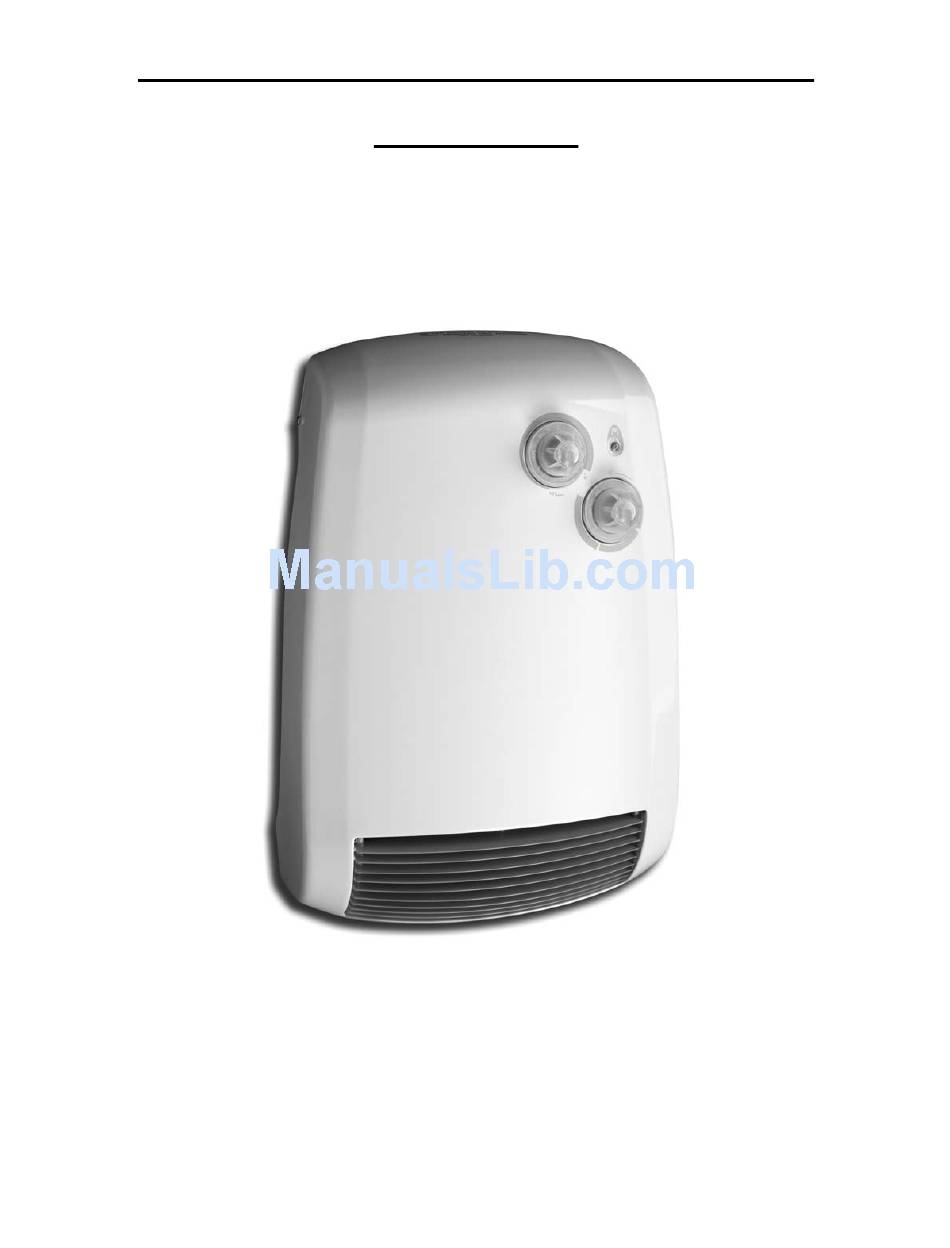

- Page 1 Installation & Instruction Manual ATHROOM ORCED EATER SILBH2060 Series (List of replacement components included) ENGLISH SILBH20600306...
-
Page 2: Specifications
WARNING *** VERY IMPORTANT *** WARNING *** VERY IMPORTANT *** WARNING Before installing and operating this product, the owner and/or installer must read, understand and follow these instructions and keep them handy for future reference. If these instructions are not respected, the warranty will be considered null & void and the manufacturer deems no further responsibility for this product. This product has been designed to heat, therefore the risk of fire is possible if it is not properly installed & maintained as per the instruction manual. Not following these instructions could lead to serious injury causing bodily harm, property damage, and electrocutions resulting in death. This product must be installed by a certified master electrician, in accordance with all local & national building codes. It is the user’s responsibility to assure that materials such as blankets, towels, beds, furniture, laundry baskets, clothing, etc. do not come in contact with, nor come within 4 inches (10 centimetres) of the heater. Not heeding this warning could lead to fire. Never obstruct the airflow locations, i.e., air intake and exhaust. This could cause the product to overheat and lead to fire. Certain locations are dustier than others. It is therefore the user’s responsibility to determine whether or not the product must be cleaned based on dirt build-up on the unit’s air intake & exhaust, as well as inside the unit. Accumulated dust and dirt could cause components to become defective, which could lead to fire. If the installer and/or user modifies this product in any way, he/she will be held responsible for any damages resulting from this modifica- tion. Assure that the heating capacity of the unit be sufficient for the size of room it is intended to heat. If the capacity is insufficient, the heater will work constantly, causing it to discolour (turn yellow) and/or prematurely deteriorate. Suggested calculation to determine heating requirements : 10 watts / square foot (0.3 m2) based on a ceiling height of 8 feet (2.44 meters). 1.2 watts / cubic foot (0.3 m3) for locations where the ceiling height exceeds 8 feet (2.44 meters). An activated thermal protection (overheat sensor) warns us that the heater has been subjected to an abnormal condition. If this occurs, it is highly recommended that the unit be inspected by an electrician or reputable repair centre to assure that it is not ruined. A heater contains components that become hot and produce electrical sparks. Do not operate it in areas where gasoline, paint, or flam- mable liquids are used or stored. -
Page 3: Electrical Connection
INSTALLATION 6” (152 mm) Wall Wall Minimum Minimum 12” (305 mm) 12” (305 mm) Minimum 12” (305 mm) Floor Ill. 02 Ill. 03 Ill. 01 • The unit must be secured to a wall, 12 in (305 mm) away from the floor and adjacent walls (Ill. 01). The unit cannot be covered or hidden by a door. • Drill three holes with a diameter slightly smaller than the one for the plastic pins provided. • Insert the pins. • Insert the two top screws provided, leaving a gap of 5/16 in (8 mm) between the screw head and the wall (Ill. 02). • Hang the unit on the two installed screws while holding it securely in your hands; CAUTION! Before letting go of the unit, check that it is securely hung on the two screws. •... - Page 4 In order for this warranty to be valid, the unit must be secured according to the above-mentioned instructions and regularly maintained. LIST OF REPLACEMENT COMPONENTS NUMBER ELEMENT DESCRIPTION BLO-SILBH2060 BLOWER WHEEL ELF-SILBH2060 ELEMENT WITH PROTECTION AND FUSE LINK COV-SILBH2060 FRONT COVER GRI-SILBH2060 BOTTOM GRILL ONLY TIM-SILBH2060 60-MINUTE TIMER MO-SILBH2060 MOTOR ST-SILBH2060 THERMOSTAT BOUT-SILBH2060 KNOB FIL-SILBH2060 BACK FILTER This unit has been approved cCSAus, for your peace of mind. Imported par Stelpro Design Inc. Made in Italy SILBH20600306...
