| Introduction
C 1
HAPTER
Description of Hardware
drain pipes, and other electrostatic conductive devices that lead to the ground,
or if located on the first floor of a building, the ground outside itself.

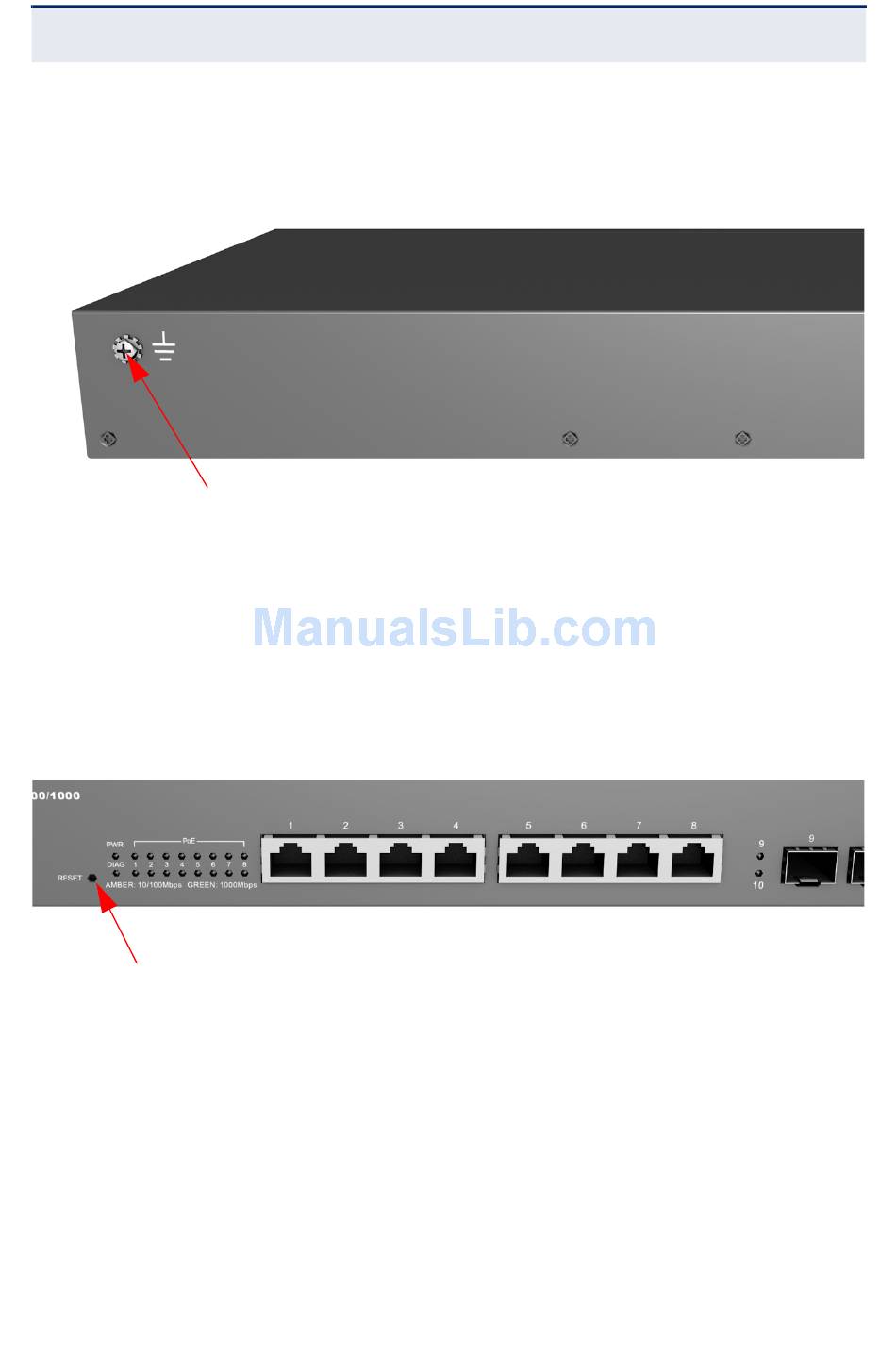

Figure 5: Grounding Point

Grounding Point
R B
ESET UTTON
If you encounter any switch malfunctions, such as a hang or non-recoverable
error, you might want to reset the switch to its default configuration by pressing
and holding the reset button for more than 10 seconds. The reset button is
located on the front panel.

Figure 6: Reset Button

Reset Button

– 31 –
