To rack-mount devices:
Attach the brackets to the device using the screws provided in the Bracket
1.
Mounting Kit.

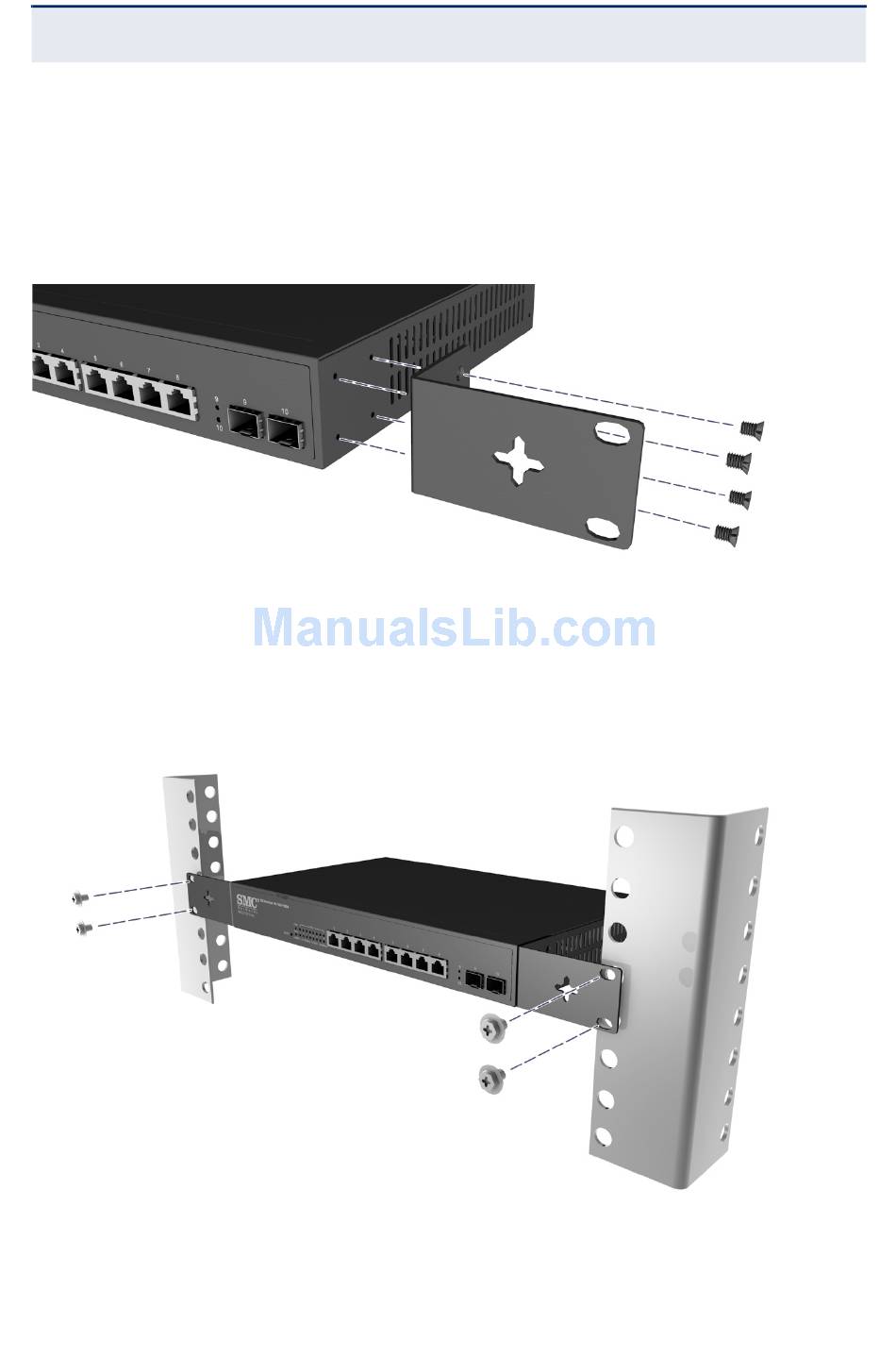

Figure 14: Attaching the Brackets

Mount the device in the rack, using four rack-mounting screws (not
2.
provided). Be sure to secure the lower rack-mounting screws first to
prevent the brackets being bent by the weight of the switch.

Figure 15: Installing the Switch in a Rack

If installing a single switch only, turn to
3.
page 48.
C
HAPTER
"Connecting to a Power Source" on
– 45 –
| Installing the Switch
3
Mounting
