Desktop Or Shelf Mounting - SMC Networks EZ Switch SMCGS10P-Smart Installation Manual

D S
ESKTOP OR
Attach the four adhesive feet to the bottom of the first switch.
1.

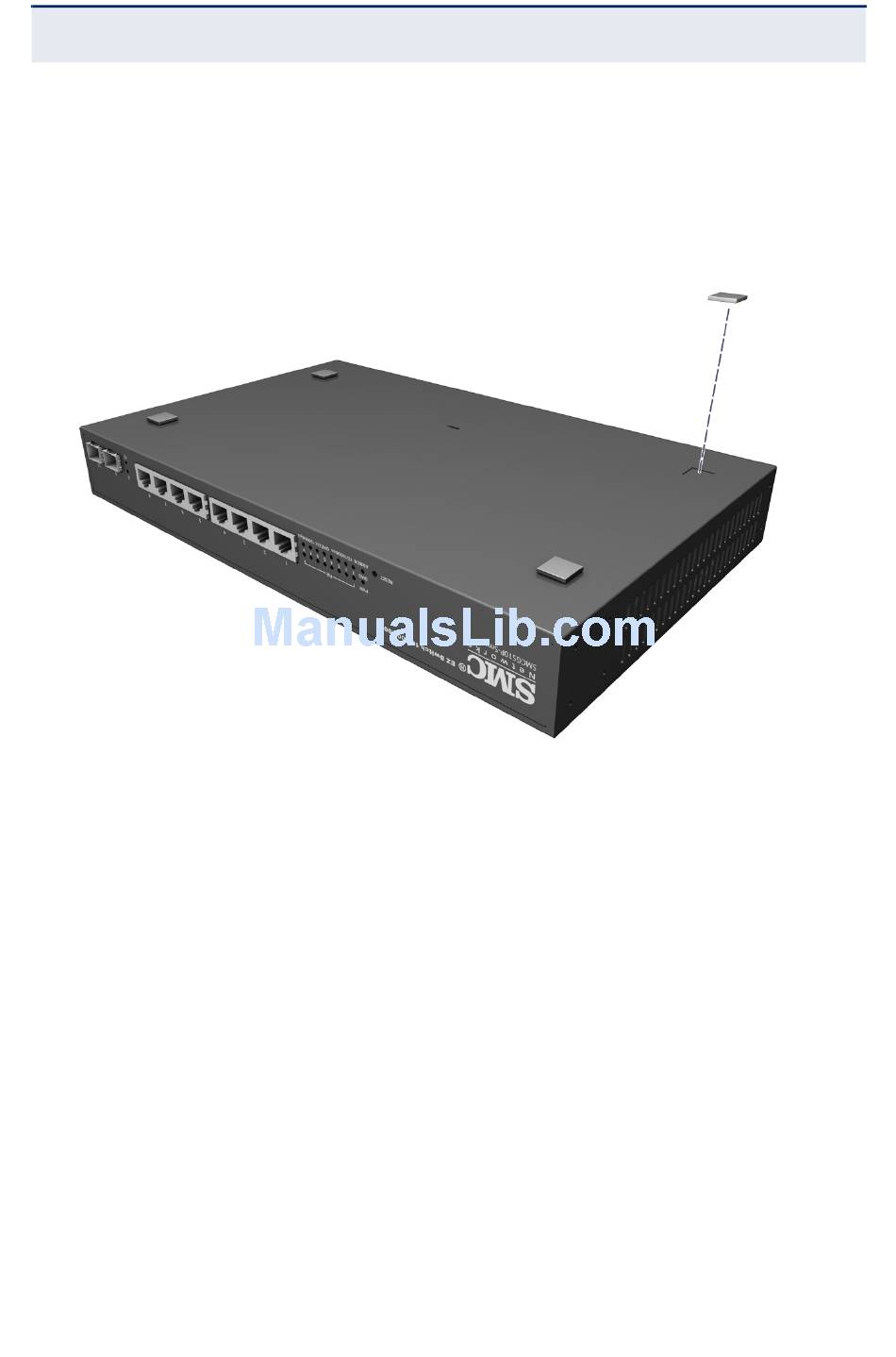

Figure 17: Attaching the Adhesive Feet
Set the device on a flat surface near an AC power source, making sure there
2.
are at least two inches of space on all sides for proper air flow.
If installing a single switch only, go to
3.
page 48.
If installing multiple switches, attach four adhesive feet to each one. Place
4.
each device squarely on top of the one below, in any order.
M
HELF OUNTING
C
HAPTER
"Connecting to a Power Source" on
– 47 –
| Installing the Switch
3
Mounting
