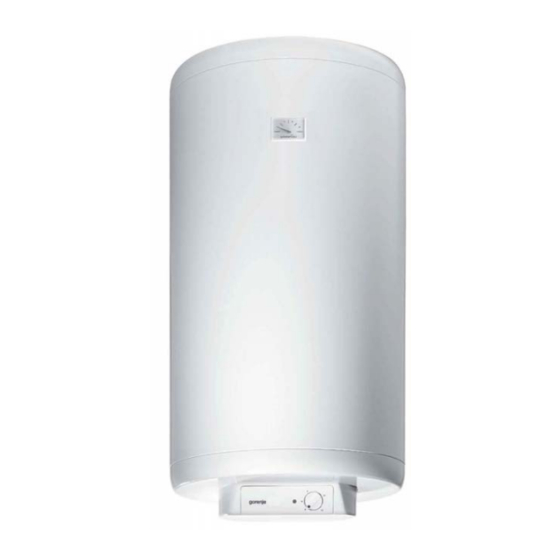

Summary of Contents for Gorenje GBK (V)

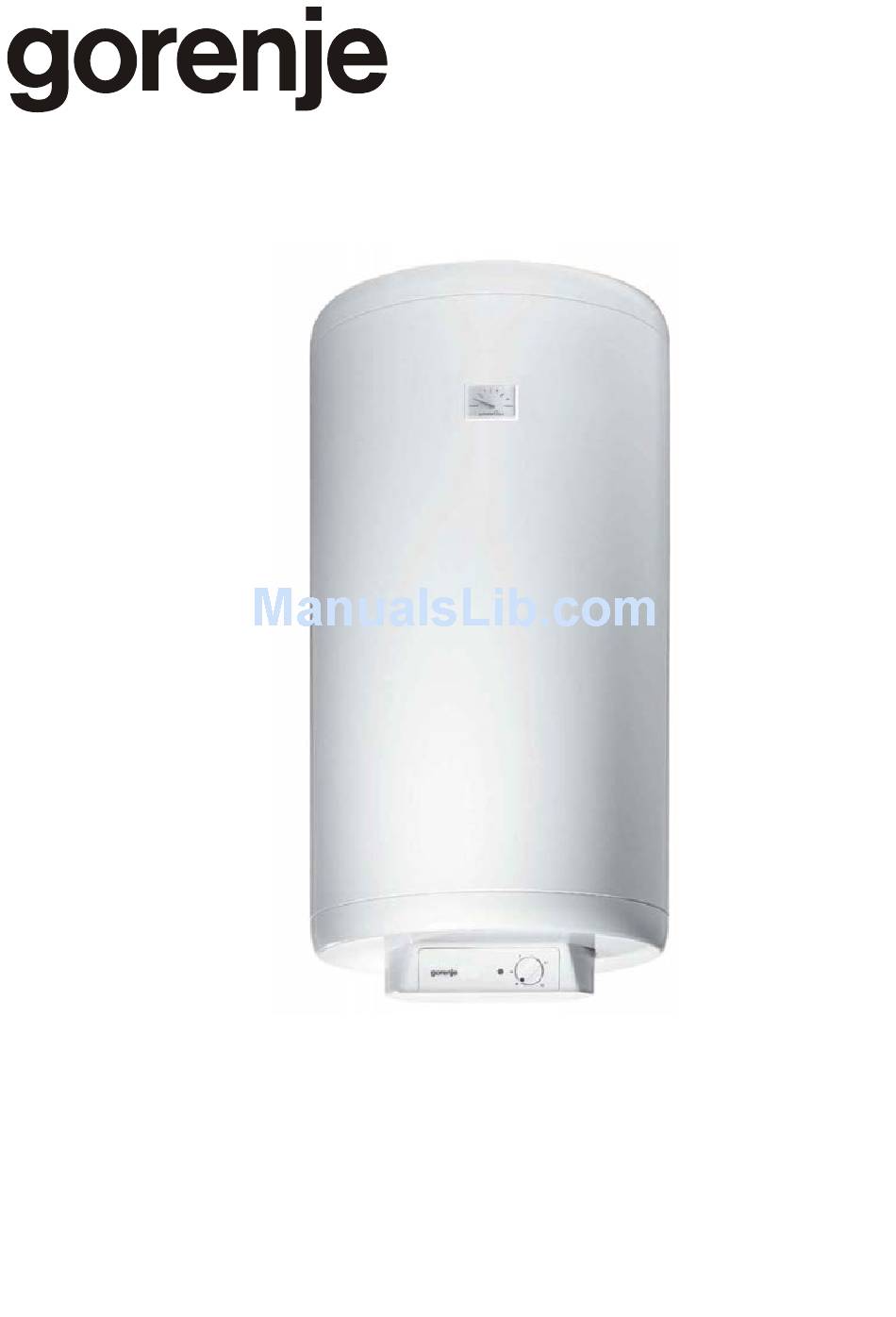

- Page 1 GBK (V)
- Page 3 Dear customer, we thank you for purchasing our product. PLEASE READ THE INSTRUCTIONS THOROUGHLY PRIOR TO THE INSTALLATION AND FIRST OPERATION OF THE WATER HEATER. This water heater has been manufactured in compliance with the relevant standards and tested by the relevant authorities as indicated by the Safety Certificate and the Electromagnetic Compatibility Certificate.
- Page 4 GBK 80 LN/RN (V) GBK 100 LN/RN (V) GBK 120 LN/RN (V) GBK 150 LN/RN (V) GBK 200 LN/RN (V) 1103 1318 1510 1065 1050 Connection and installation dimensions [mm]. CONNECTION TO THE WATER SUPPLY SYSTEM Inlet and outlet of water are on the water heater pipes marked with colour.
- Page 5 Closed-circuit (pressure) system Open-circuit (gravity) system Key: 1 - Safety valve 2 - Test valve 3 - Non-return valve 4 - Pressure-reducing valve 5 - Stop valve 6 - Testing piece 7 - Funnel outlet to the drain H - Cold water T - Hot water Combined GBK water heater operates in the same manner as the electrical GB water heater however, it has also been fitted with the cooling water heat exchanger allowing the sanitary...
- Page 6 Key: 1 - Thermostat 2 - Bimetal fuse 3 - Heating element (2 x 1000 W) 4 - Light indicator 5 - Connector L - Phase conductor N - Neutral conductor - Earth conductor WARNING: The appliance must be disconnected from the power supply prior to doing anything that requires you to open the body of the water heater! OPERATION AND MAINTENANCE After the connection to water and electric network the heater is ready for use.
- Page 7 10/2008 248139...
