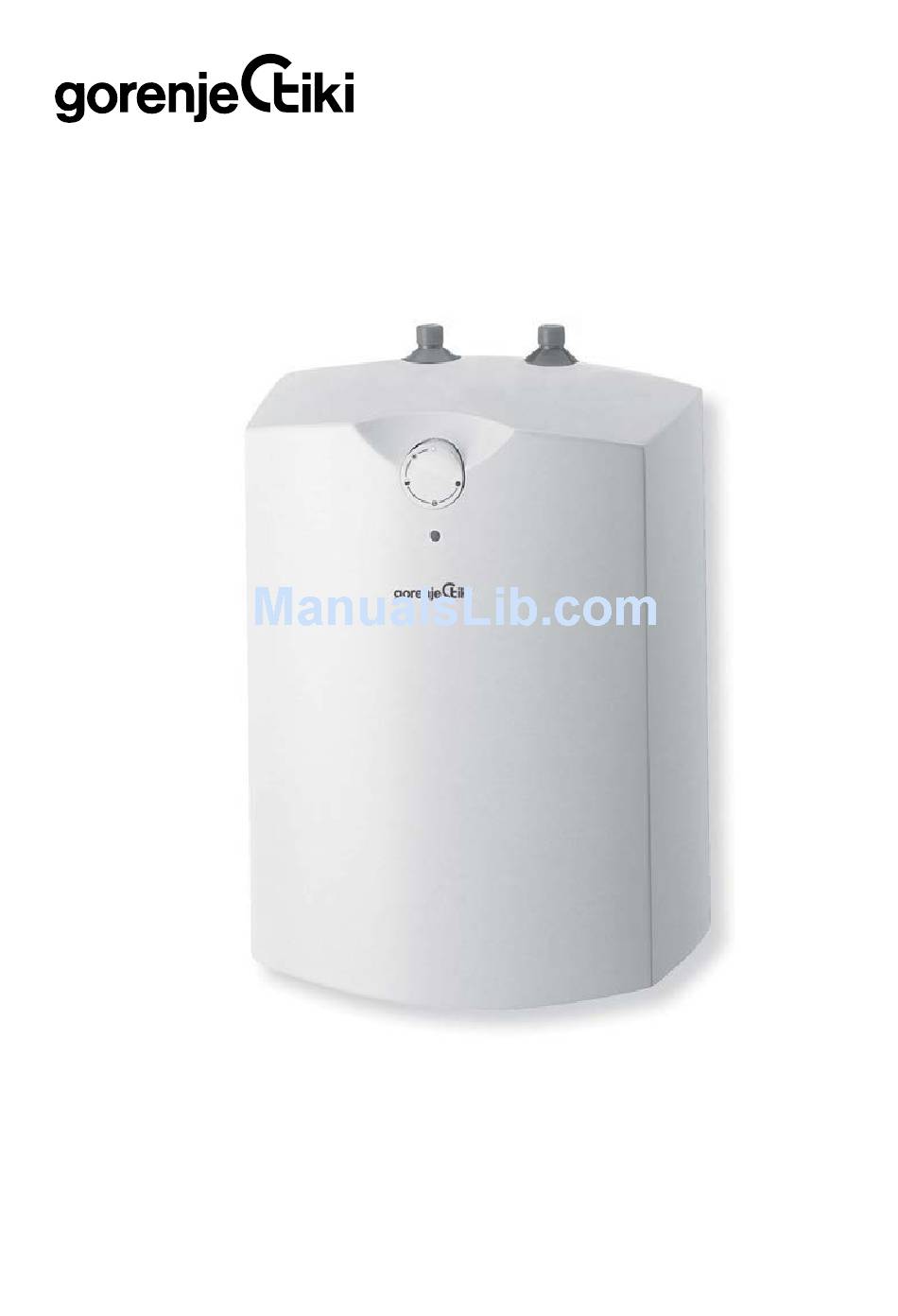

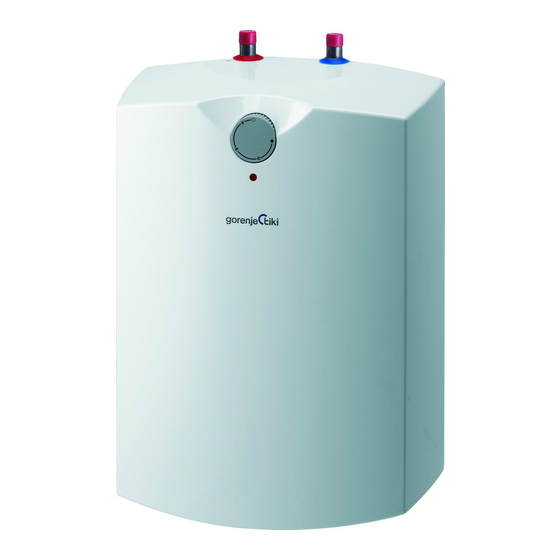

- Page 1 GT 10-15 01/2014 766048...
- Page 3 Installation of the heater without fixing on the wall is not correct and may cause damage to the heater casing. TECHNICAL PROPERTIES OF THE APPLIANCE Type GT 10 O GT 10 U GT 15 O GT 15 U Nominal capacity Nominal pressure...
- Page 4 Dimensions of the water heater for installation and connection [mm] Installation above the basin/sink Installation below the basin/sink GT 10 O GT 10 U GT 15 O GT 15 U CONNECTION TO THE WATER SUPPLY Inlet and outlet of water are on the water heater pipes marked with colour. The supply of cold water is marked with blue, the outlet of warm water is marked with red.
- Page 5 Open-circuit (gravity) system Closed-circuit (pressure) system Installation above the basin/sink Installation above the basin/sink Installation below the basin/sink Installation below the basin/sink Legend: 1 - Safety valve 7 - Mixer tap - installation above the basin/sink 2 - Non-return valve 7a - Mixer tap - installation below the basin/sink 3 - Test valve 8 - Funnel outlet to the drain...
-
Page 6: Operation And Maintenance
Legend: 1 - Thermostat 2 - Thermal fuse 3 - Heating element 4 - Light indicator 5 - Connector L- Phase lead N- Neutral lead - Earth lead Electrical installation drawing OPERATION AND MAINTENANCE The water heater is ready for use once it has been connected to water and power. By turning the thermostat knob on the front side of the protective cover, water temperature can be set between 25 °C, position “...
