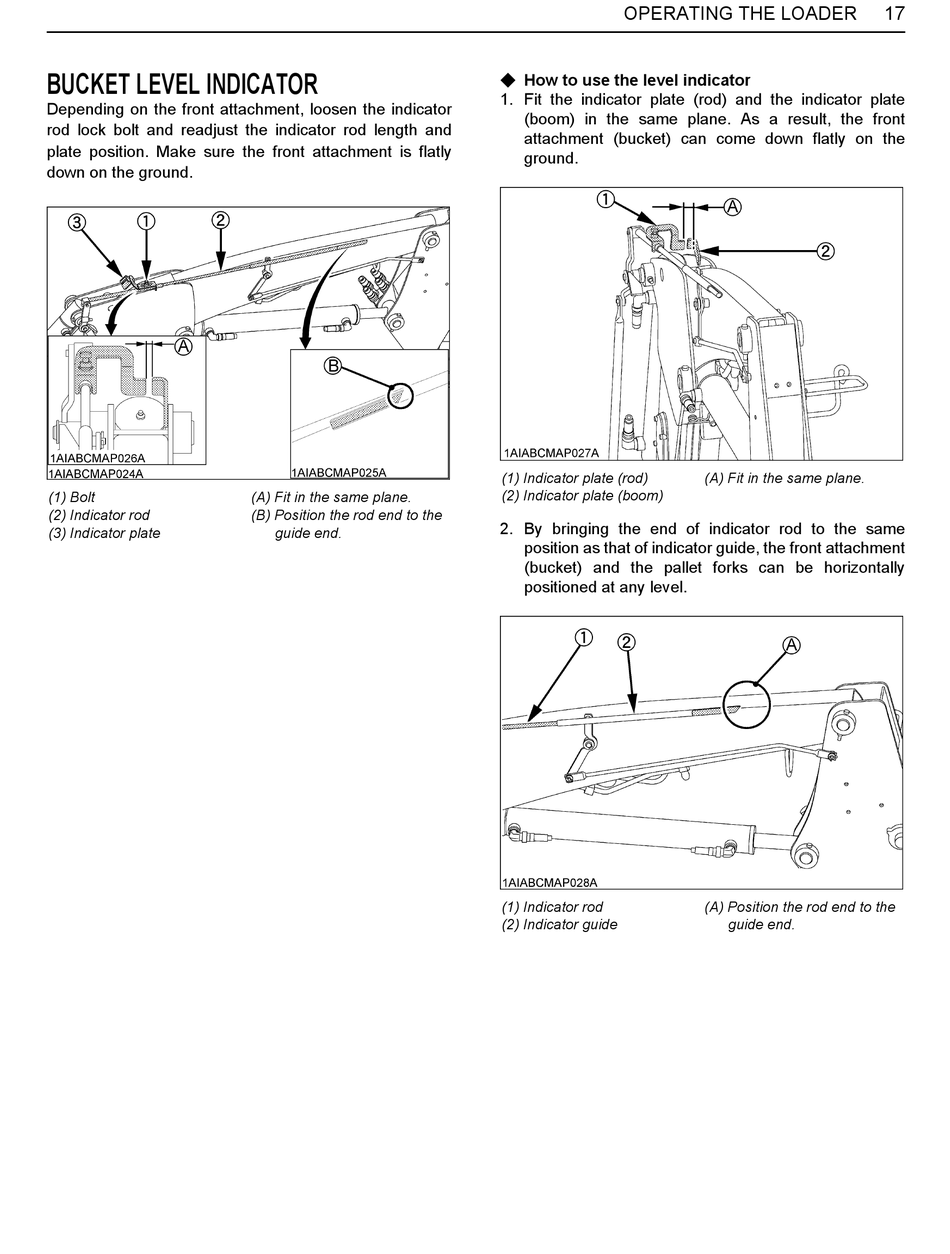

BUCKET LEVEL INDICATOR

Depending on the front attachment, loosen the indicator
rod lock bolt and readjust the indicator rod length and
plate position. Make sure the front attachment is flatly
down on the ground.
(1) Bolt
(2) Indicator rod
(3) Indicator plate
(A) Fit in the same plane.
(B) Position the rod end to the
guide end.
OPERATING THE LOADER
C How to use the level indicator
1. Fit the indicator plate (rod) and the indicator plate
(boom) in the same plane. As a result, the front
attachment (bucket) can come down flatly on the
ground.
(1) Indicator plate (rod)
(2) Indicator plate (boom)
2. By bringing the end of indicator rod to the same
position as that of indicator guide, the front attachment
(bucket) and the pallet forks can be horizontally
positioned at any level.
(1) Indicator rod
(2) Indicator guide
(A) Fit in the same plane.
(A) Position the rod end to the
guide end.
17
