Configure At-530 To Make Voip Calls; Wan Config - ATCOM AT-530 Quick Start Manual

Configure AT-530 to make VoIP calls

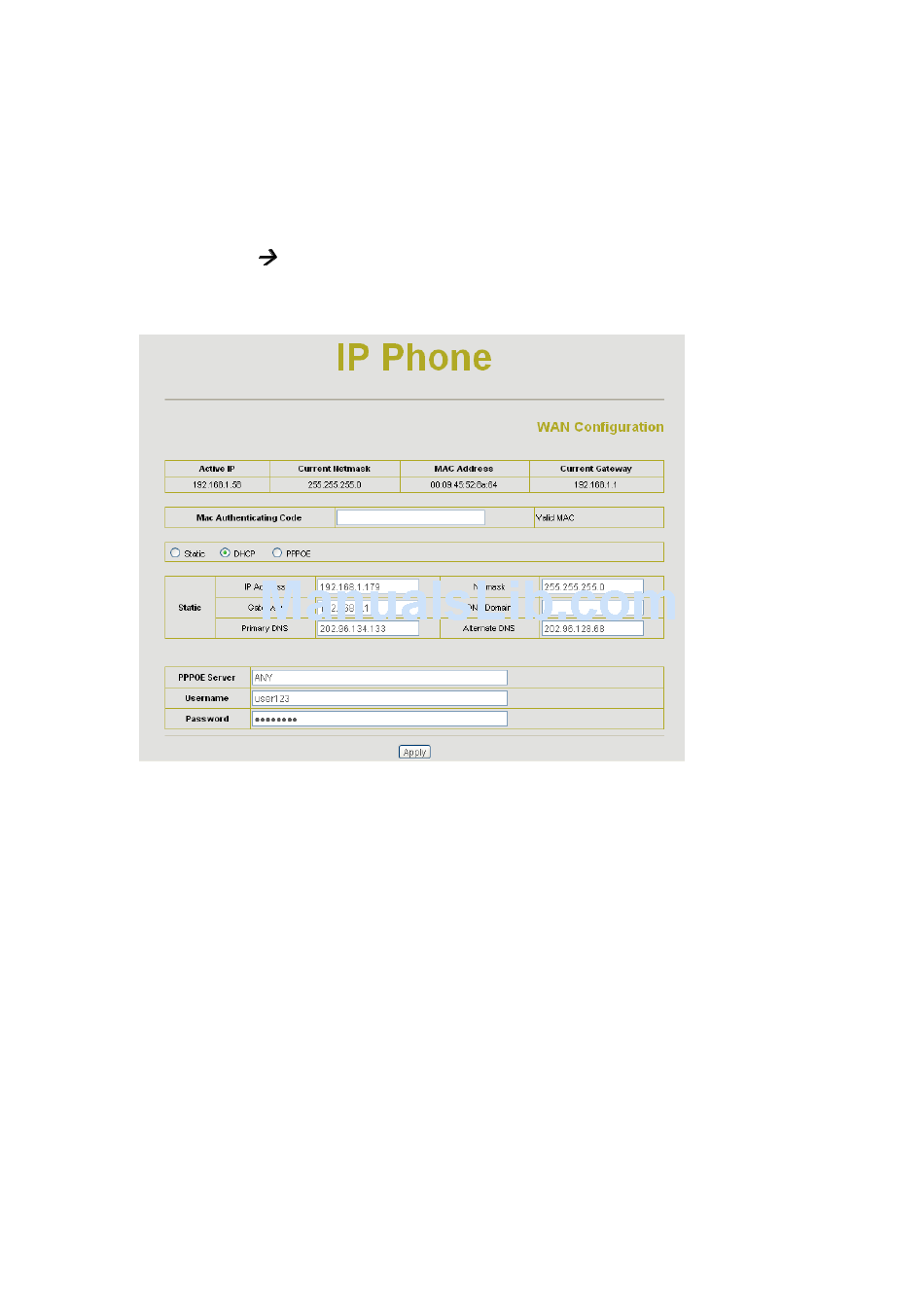

WAN Config

Network WAN Config
Enter to set the WAN setting:
AT-530 supports three different IP types: Static IP, Dynamic obtain IP (DHCP) and PPPoE. You
can use either of these IP types to connect the internet.
Use Static IP:
----Select "Static";
----Enter the AT-530's IP address in the "IP address" field.
----Set the "Netmask", default 255.255.255.0
----Enter the AT-530's upper gateway IP address(for example:Router) in the "Gateway" field
----Key in the DNS information in the "Primary DNS" and "Alter DNS" fields.
Use DHCP:
----Select DHCP
If you have a DHCP server in your network, AT-530 will automatically obtain the network
information from your DHCP server.
Use PPPoE:
----Select PPPoE
----Type your PPPoE dialup information in the PPPoE setting fields:PPPoE server(option),
Username and password.
