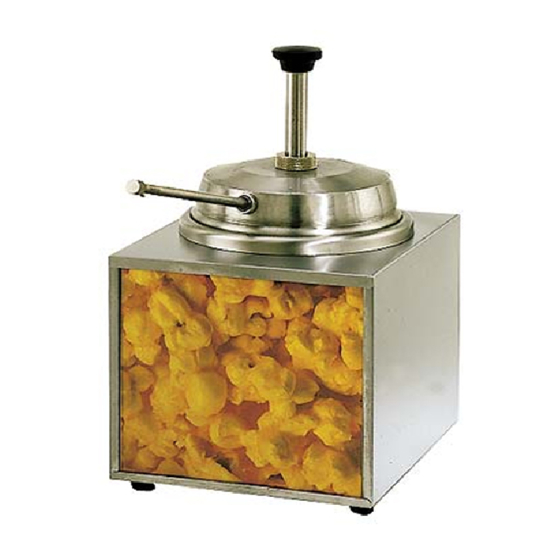

Star 3W SERIES Installation And Operation Instructions Manual
3 1/2 quart
Hide thumbs
Also See for 3W SERIES:
- Installation and operation instructions manual (12 pages) ,
- Installation and operation instructions manual (17 pages)
Related Manuals for Star 3W SERIES
Summary of Contents for Star 3W SERIES

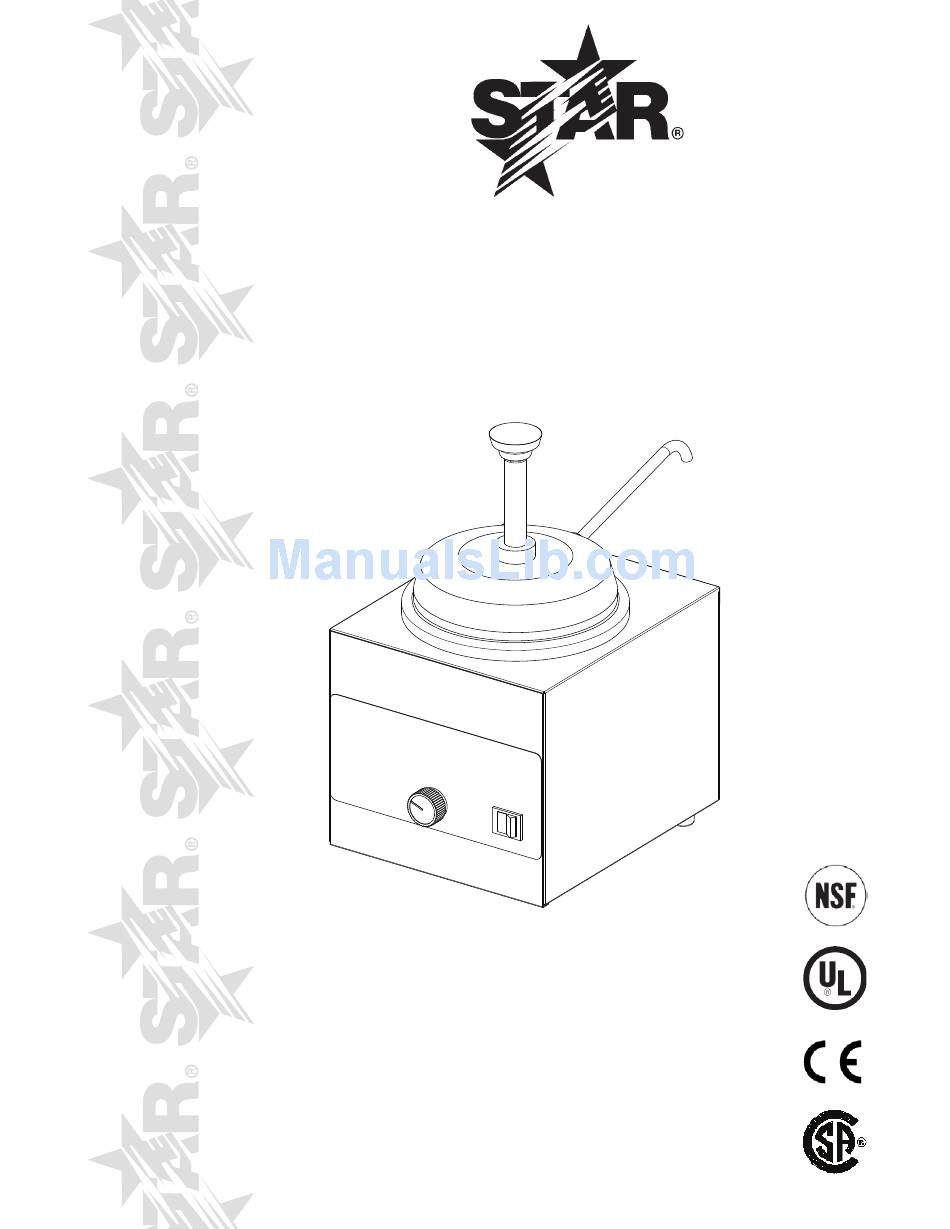

- Page 1 3 1/2 QUART WARMERS MODEL 3W SERIES Installation and Operation Instructions 2M-Y8316 Rev. M 6/10/2013 3WLA-P...
-
Page 2: Safety Symbol
RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. Star reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment. -
Page 3: Specifications
Height Width Depth IL2482 Specifications Electrical Dimensions Model Capacity Weight Voltage Watts Amps Depth Width Height 120V 3WLA-4H 4.125 Qtz 50/60 11” 9” 11.75” 11lbs 240V 3WLA-B 3.5 Qtz 120V 50/60 10.5” 9” 15.5” 10.5lbs 3WLA-BQC 4.125” 120V 50/60 10.5” 9”... -
Page 4: Installation
This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the general public in food service locations. CAUTION Before using your new equipment, read and understand all the instructions &... -
Page 5: Priming Pump
CLEANING INSTRUCTIONS IMPORTANT Stainless steel may corrode if not cleaned properly. Clean and dry the heated bowl inside the warmer every night. Use a soft cloth and mild soap to keep exterior surfaces bright and shining. To keep the inside surface of the bowl clean, use steel wool pads as often as necessary. - Page 6 LIMITED EQUIPMENT WARRANTY All workmanship and material in Star products have a one (1) year limited warranty on parts & labor in the United States and Canada. Such warranty is limited to the original purchaser only and shall be effective from the date the equipment is placed in service. Star's obligation under this warranty is limited to the repair of defects without charge, by the factory authorized service agency or one of its sub-agencies.
- Page 8 = Pump Service Kit = Pump Service Kit PUMP MODELS LIGHTED MODELS PUMP ACCESSORIES MODELS WITH RING & COVER * = FOR INSETS & LADLES CONTACT DEALER MODEL 3WLA-3WSA STAR MANUFACTURING INTERNATIONAL, INC. 3 1/2QT., 4 QT. 120V/240V SK1165 REV. K 6/10/2013...
-
Page 9: Parts List
STAINLESS INSET (OPTIONAL) 2R-Y5701 HANDLE N2-30436 COVER 2L-Z0577 LADLE 1 OZ. N2-30437 INSET O2-Y5703 HINGE-LEAF 2B-Y5792 PIN-HINGE 2R-Y9854 KNOB-BLK. 2A-Y9637 2L-Y7618 COVER N2-Z0253 COVER PUMP (3WSA-HSS ONLY) 2V-Y7661 PLUNGER-SHIELD 2A-Z0718 GUIDE 2P-Z0830 SPRING N2-Y4146 WASHER 2I-Y9636 ROD/PLUNGER Star Manufacturing International, Inc. - Page 10 H.L. THERMOSTAT (ON 240V MODELS ONLY) N2-30404 PUMP ASSEMBLY COMPLETE N2-62034-PS PUMP SERVICE KIT, Item No: 34, 40, 42, 43, 46, 60 N2-62000 BASIC ASSY PUMP KIT, Item No: 35, 39, 40, 41, 42, 43, 46 Star Manufacturing International, Inc.
- Page 12 STAR INTERNATIONAL HOLDINGS INC. COMPANY Star - Holman - Lang - Wells - Bloomfield - Toastmaster 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (314) 678-6303 www.star-mfg.com...
