2.1 ASSEMBLY
NOTE:
The pictures used in the following assembly instructions use the USB 3.0 version
of the OWC Express. The assembly instructions are identical between the USB 2.0 and
USB 3.0 version; the only thing different is the connector on the outside of the OWC
Express.
1. First, remove the top cover from the OWC Express. Inside the bottom case you will
see a small plastic bag containing the screws needed for assembly. Remove the bag
and set aside the screws for now.

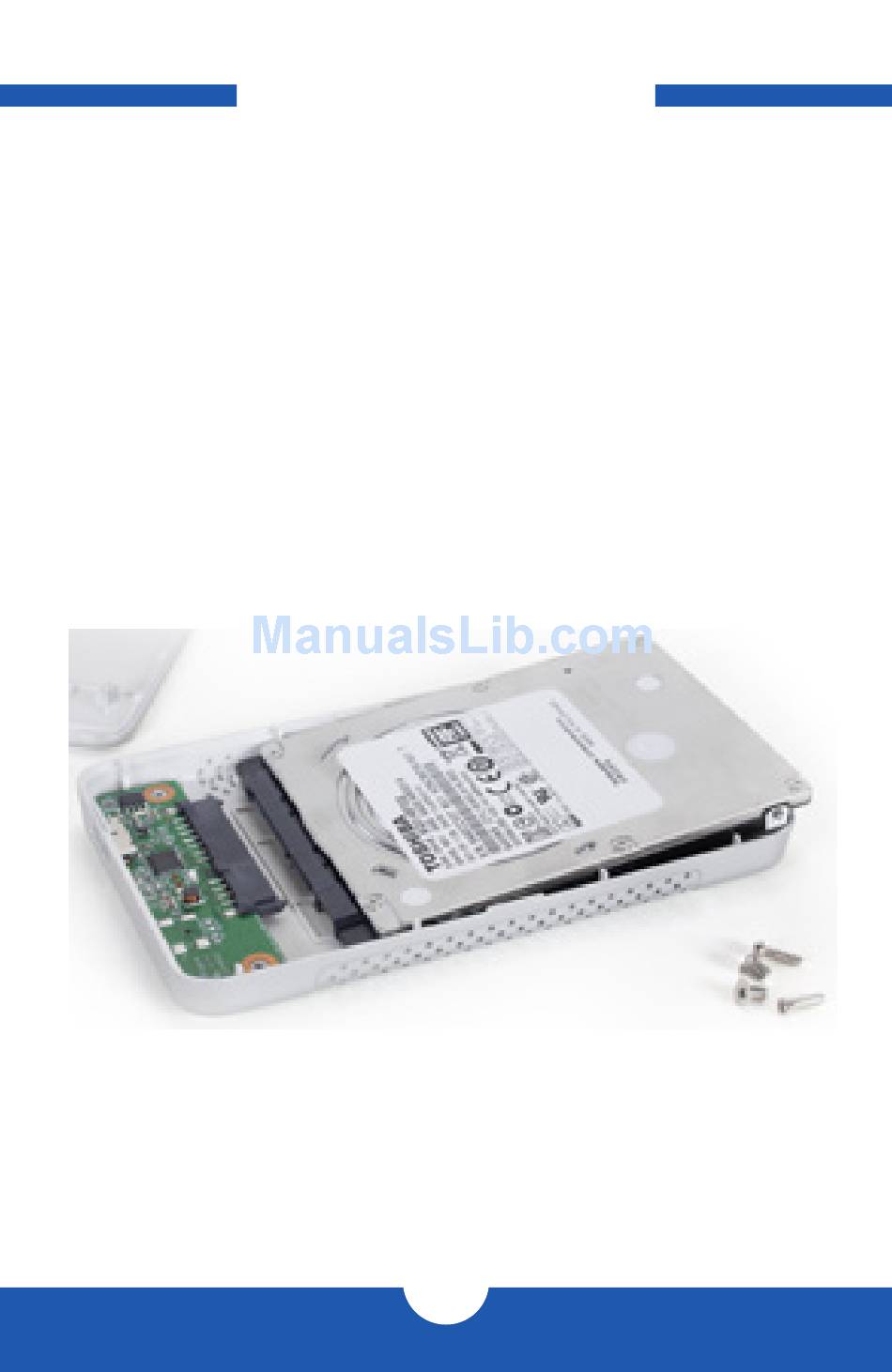

2. Install the 2.5" SATA hard drive or SSD of your choice (up to 9.5 mm tall). As shown
in the picture below, insert the drive into the bottom case of the OWC Express at
a shallow angle, lining up the SATA connector on the drive with the connector in
the bottom case. Make sure that the drive is seated fully in the connector inside the
bottom case, then proceed to the next step.
