MPR30-ENG User Manual

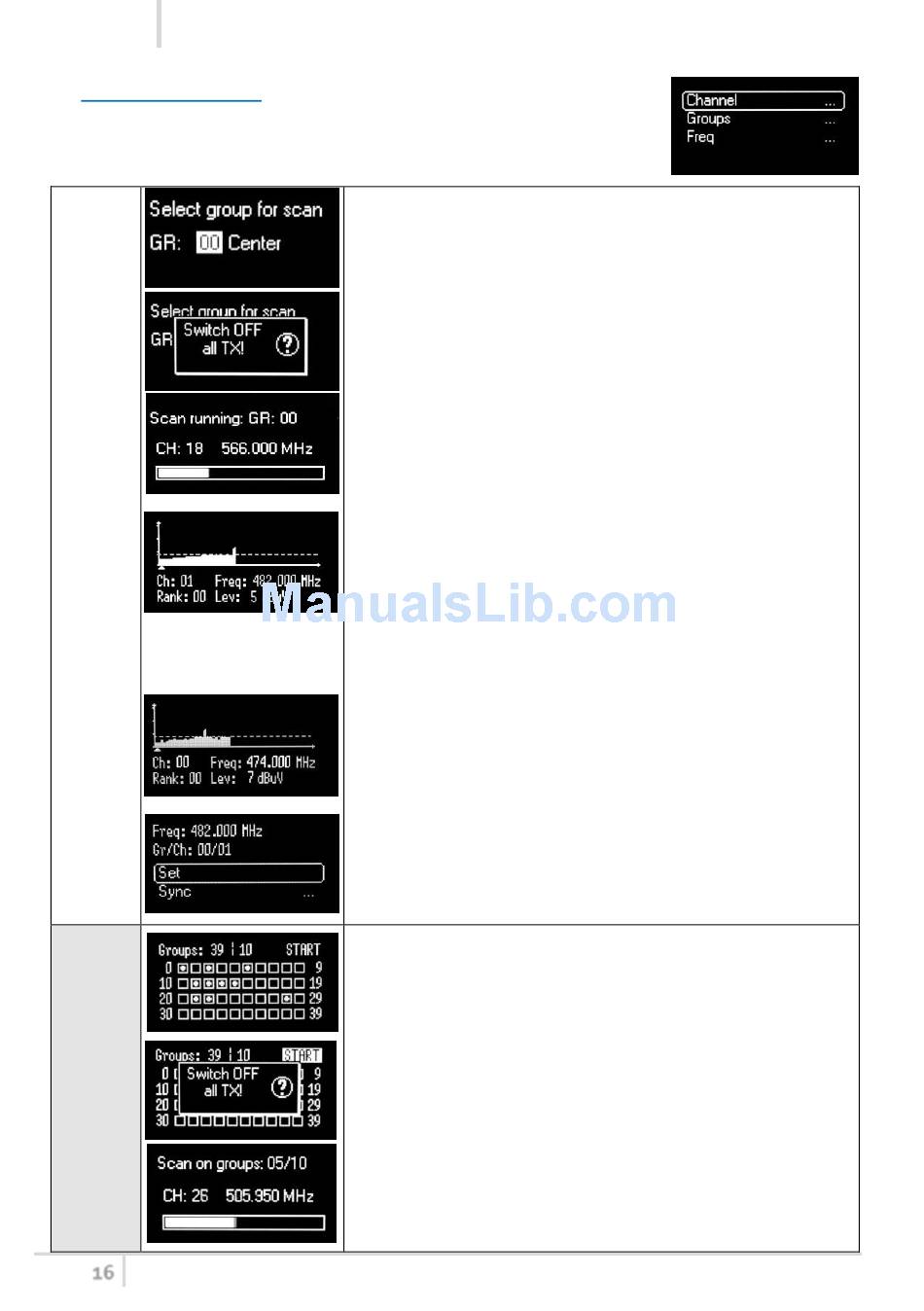

"Scan now" menu
The following table lists the three types of scans that can be performed
Channel
Groups
16
Once started a Channel scan operation the receiver asks for
group to be used*. Press and hold the SEL button to select
the group to scan.
Then it prompts to turn off all transmitters.
So press SEL to start the scan!
After few seconds, scan results are displayed sorted by level,
making easier to pick up the best one.
The dotted line in the graph indicate the squelch threshold.
Under the graph are reported the following parameters:
- Ch: Channel
- Rank: Ranking position
- Freq: Frequency
- Lev: RF level
Pushing simultaneously UP and DOWN button, the results
can be also displayed on a chart in ascending order
according to the number of the channel.
After the selection of the desired channel, a screen appears
with the selected frequency, channel and group and it is
possible to Set or Synchronize the receiver with the
transmitter. We recommend setting the frequency and then
synchronize it with the transmitter.
If the scan is done on Groups, you can choose a maximum of
10 groups from among the 40 groups shown in the table
(Press the SEL button to select and press it again to
deselect).
In the upper left shows the number of the selected group
and the number of selected groups, while in the upper right
corner there is the item "START" to start the scan.
To select START, go to the box 39 and press the "UP" button
or go to the box 0 and press the "DOWN" button, so press
SEL to run the scansion.
Then it prompts to turn off all transmitters.
