MPR30-ENG User Manual

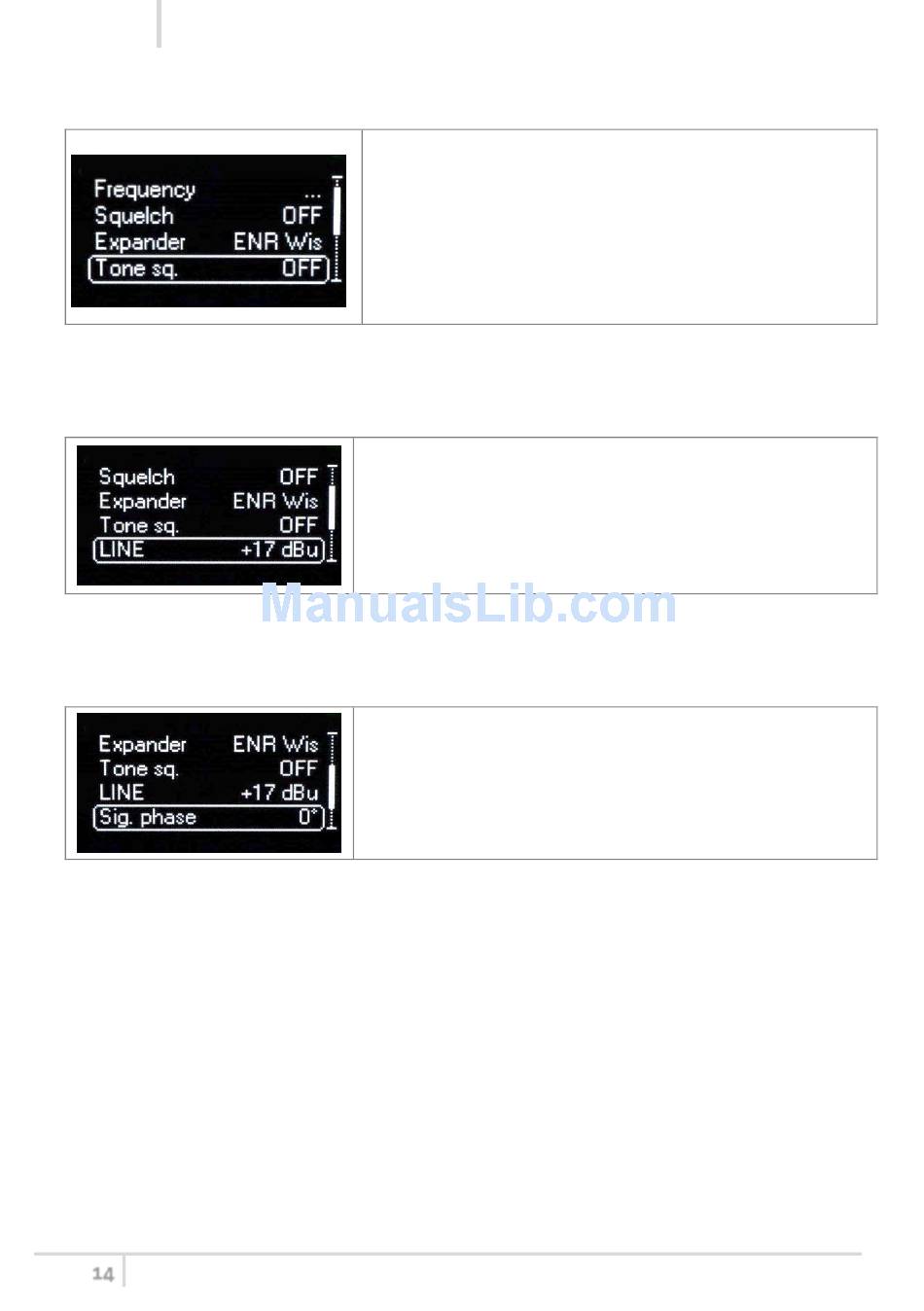

Edit RX menu > Tone sq. submenu

MPR30-ENG is able to detect a digital tone squelch generated by a Wisycom transmitters

Edit RX menu >LINE submenu

Edit RX menu > Sig. phase submenu

Tone squelch ON: when the tone squelch is enabled the

audio is muted unless the correct carrier is detected. Tone

squelch allows working with lower RF squelch, increasing the

coverage and the robustness especially in presence of digital

television carriers

(DVB-T).

enabled, in the status menu is displayed "+TS".

Tone squelch OFF: the audio is muted if

RF level<Squelch level

It is possible to set the nominal audio from +18dBu (peak

deviation) and -35 dBu:

LINE: -5 dBu ÷ +18 dBu (1 dB step)

MIC: -35 dBu ÷ -12 dBu(1 dB step)

To change audio phase of 0 deg or 180 deg.

Only when the tone squelch is
