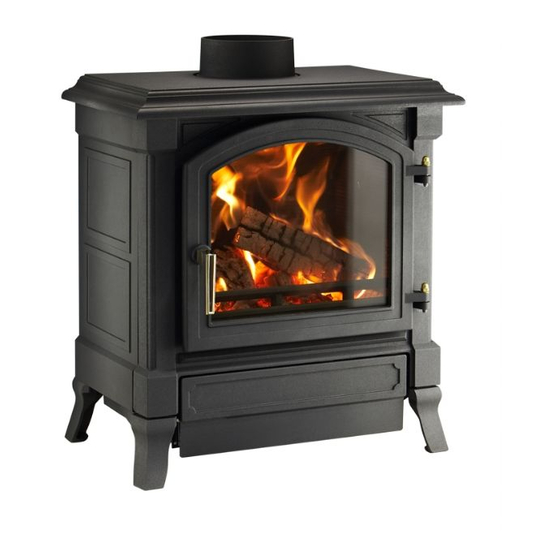

NESTOR MARTIN HARMONY H13 Installation Instructions Manual

Wood and multifuel stoves with plexus control and zr technology
Hide thumbs Also See for HARMONY H13:

Advertisement

Table of Contents

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. June 2008
Installation Instructions For
With Plexus Control and ZR Technology
This manual must be used in conjunction with document IN1173.
The Wood and Mutlifuel Chimney and Installation Guide.
Since April 2002 only Registered Competent Engineers may install solid fuel fired
appliances without involving the Local Authority Building Control Department. For
more details contact HETAS.
Euroheat would suggest only Registered Competent Engineers install Euroheat
appliances.
If the installer is not a registered Competent Engineer we would advise that
property owners insurance company is contacted to confirm there insurance is not
effected.
This Manual Must Always Be Available To The Stove Operator
IN1115 Edition G3
HARMONY
H13, H23, H33, H43
STANFORD
S13, S23, S33, S43
SP23, SP33, SP43
NESTOR MARTIN
R23, R33
RH33, FH33
Wood and Multifuel Stoves
Part No.
Model Name
Serial Number
1
E & OE
Instructions Part number IN1115 Edition G3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HARMONY H13 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NESTOR MARTIN HARMONY H13

Summary of Contents for NESTOR MARTIN HARMONY H13

  • Page 1 Installation Instructions For HARMONY H13, H23, H33, H43 STANFORD S13, S23, S33, S43 SP23, SP33, SP43 NESTOR MARTIN R23, R33 RH33, FH33 Wood and Multifuel Stoves With Plexus Control and ZR Technology This manual must be used in conjunction with document IN1173.
  • Page 2 IMPORTANT  The installation of this appliance must comply with all local regulations, including those referring to national and European Standards before it can be operated. The stove is not suitable for a shared flue. However, for England and Wales, only, the coming into force on 1st April 2002 of SI 2002 No 440 exempts the householder from this legal requirement for the installation of solid fuel fired appliance whose rated heat output is 50kW or less in a building having no more than 3 storeys (excluding any basement) if a Competent Engineer is employed who is registered under the Registration Scheme for Companies and Engineers involved in the Installation and Maintenance of...

  • Page 3: The Model Range Explained

    Our aims are to produce stoves with the latest innovations, user friendly operation and highly efficient for lower cost operation. This manual offers installation information for the range of HARMONY H13, H23, H33, H43. STANFORD S13, S23, S33, S43 SP23, SP33, SP43. NESTOR MARTIN R23, R33 RH33, FH33.
  • Page 4 12pa Stanford 43 S43* 10.5Kw 11.3kW 12pa See smoke control Stanford SP43 HP SP43 HP* 10.5Kw 11.3kW 12pa exempted Nestor Martin R23 R23* 5.9kW 6.1kW 12pa table Nestor Martin R33 7.9kW 8.4kW 12pa Nestor Martin RH33 RH33* 8.4kW 7.2kW 12pa...
  • Page 5 72.8** Stanford 43 7” (180mm) 4125mm 2 80** 72.8** Stanford SP43 HP 7” (180mm) 1100mm 2 73** 65.7** Nestor Martin R23 6” (153mm) Approved 2750mm 2 77.6 Nestor Martin R33 6” (153mm) Approved 2750mm 2 77.6** 69.7** Nestor Martin RH33 7”...
  • Page 6 Useful Organisations UK Solid Fuel Association 0845 601 4406 www.solidfuel.co.uk The National Association of Chimney Sweeps 01785 811732 www.chimneyworks.co.uk HETAS Ltd. 0845 634 5626 www.hetas.co.uk Stoves Construction The plexus control is the centre of the air inlet system. The fuel select lever, controls the direction of air flow, either air wash or under grate.

  • Page 7: Flue Outlet Configuration

    Stanford 33 A or B Stanford SP33 Stanford 43 Yes (only enamel models) Stanford SP43 Nestor Martin R23 Nestor martin R33 A or B Nestor Martin RH33 Nestor Martin FH33 © EUROHEAT DISTRIBUTORS (H.B.S) LTD. June 2008 E & OE...
  • Page 8 Gasket 9. The Nestor Martin R23, R33, RH33, FH33 have an additional top closing plate for the top cover. This is retained in place by a square steel plate which is supplied with the stove. This plate slides into fixings under the top removable plate.

  • Page 9: Fireplace Design

    Fireplace Design Do not be tempted to fit the stove into an unsuitable fireplace. Beyond the requirements of Building Regulations and access to facilitate servicing the stove, providing a setting which will compliment a stove is not a luxury, it is the practicality of making the most of an investment. A good builder or fireplace specialist will be able to transform even the most utilitarian of fireplaces.

  • Page 10: Minimum Installation Clearances

    Stanford 43 Wood 300mm 250mm 300mm 300mm 250mm 12mm Stanford SP43 Wood 300mm 250mm 300mm 300mm 250mm 12mm Nestor Martin R23 Wood 300mm 250mm 300mm 300mm 250mm 12mm Nestor Martin R33 Wood 300mm 250mm 300mm 300mm 250mm 12mm Nestor Martin RH33 Wood...

  • Page 11: General Advice

    Minimum Installation Clearances From Non-combustible Materials. From Non-combustable materials 100mm 75mm 300mm 50mm 75mm 12mm * If a remote control is to be used with the appliance, the distance E requires to be increased to at least 100mm to allow access to the remote control receiver. If this space is not available a remote mounted receiver can be installed.

  • Page 12: Minimum Air Setting

    The Flue It is possible to remove the top chamber baffle to access the flue for cleaning. However we would advise that if at all possible an external cleaning access is provided. If the chimney has been lined with the same size flue as the flue pipe it will be possible to sweep from the flue access point.

  • Page 13: Remote Control Option

    Remote Control Option This stove has the option of remote control. Fitting the Remote Control Motor At the rear of the appliance you will see the motor fitting bracket. This incorporates a magnet and the mechanism friction plate. The friction plate is hinged. To fit the motor this friction plate needs to be detached from the magnet and swung to the left.

  • Page 14: Commissioning Check List

    Complete the Stoves Registration Form and Pass to User for Registration Euroheat, Efel and Nestor Martin have a policy of continual research and development and reserve the right to modify its appliances without prior notice. We make every effort to ensure that the information provided in this document is correct and accurate at the time of printing.
