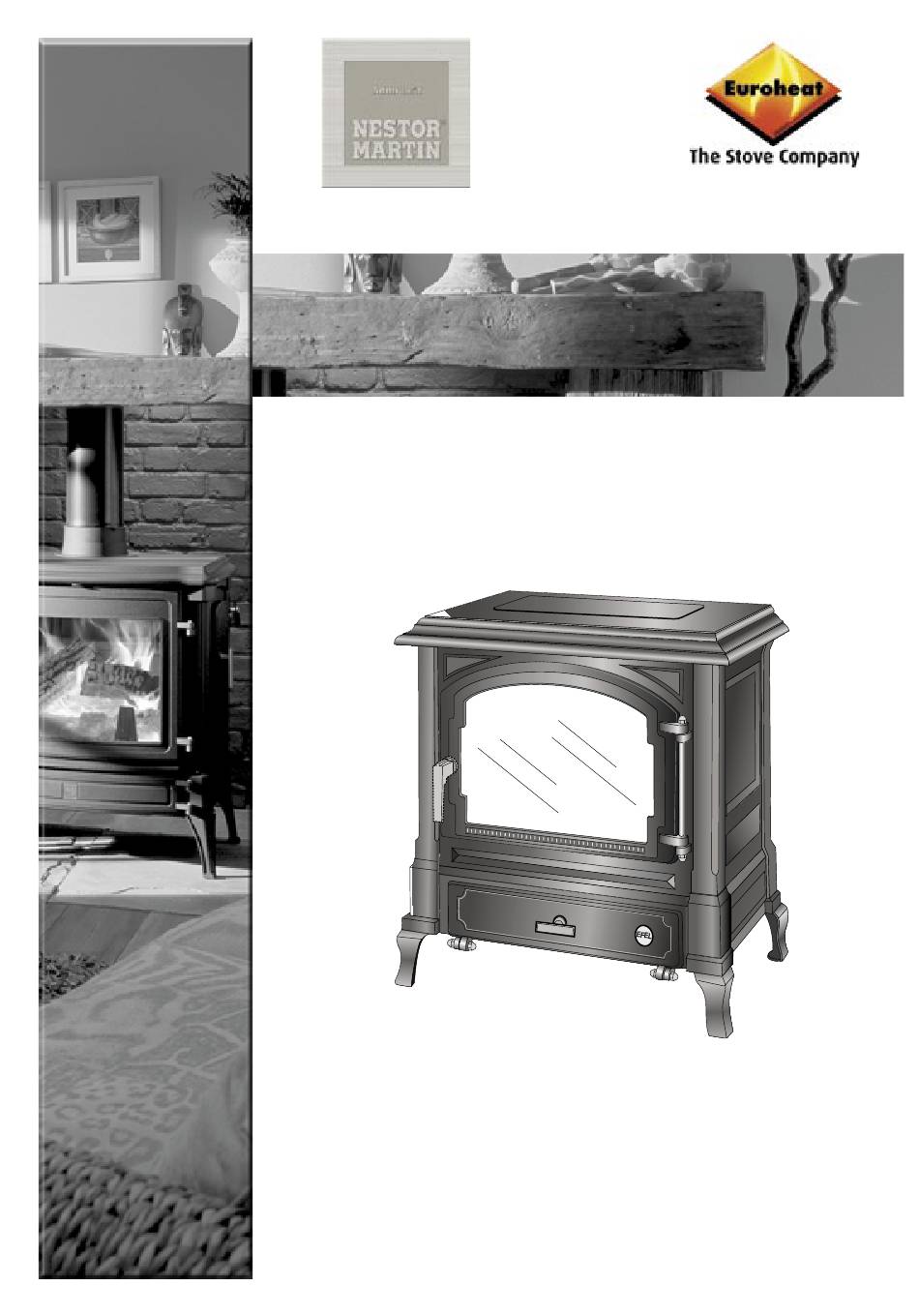

Installation & Servicing
Harmony I Gas Stove
Harmony 1 Gas
49892
Euroheat Distributors
(H.B.S.) Ltd.,
Unit 2, Court Farm
Business Park,
Bishops Frome,
Worcestershire,
WR6 5AY.
Thermic Distribution
Europe SA,
B-5660 Frasnes-lez-
Couvin,
Belgium.
1
E & OE
nstructions Part number IN1024 Ed H
© EUROHEAT DISTRIBUTORS (H.B.S) LTD. Aug 2006
Advertisement
Table of Contents
Related Manuals for NESTOR MARTIN Euroheat Harmony 1 Gas
Summary of Contents for NESTOR MARTIN Euroheat Harmony 1 Gas
- Page 1 Installation & Servicing Harmony I Gas Stove Harmony 1 Gas 49892 Euroheat Distributors (H.B.S.) Ltd., Unit 2, Court Farm Business Park, Bishops Frome, Worcestershire, WR6 5AY. Thermic Distribution Europe SA, B-5660 Frasnes-lez- Couvin, Belgium. E & OE nstructions Part number IN1024 Ed H ©...
-
Page 2: Table Of Contents
Contents Manufacturers Identification Plate................3 Safety Precautions....................3 Technical Data......................4 Dimensions........................5 Optional decorative plinth..................5 Primary Air Collar......................5 Appliance Location....................6 Hearth and Fireplace Requirements................6 Minimum installation clearances................7 Flue and Chimney Requirements................8 Ventilation........................8 Installation of the Stove to the Flue System............9 Flue Outlet Direction....................9 Installation of the Gas Supply up to the Stove............9 Gas Connection to the Stove.................10 Fitting the Coal Effect Kit and Fuel Guard............10... -
Page 3: Manufacturers Identification Plate
Safety Precautions The stove should be visually inspected and if damaged should not be installed. It is a requirement of the Gas Safety (Installation and Use) Regulations that these instructions, together with the Appliance User Instructions, be left intact with the user. In your own interest, and those of safety, and in accordance with the Gas Safety (Installation and Use) Regulations, Efel stoves must be installed by a suitably qualified gas technician using the appropriate fittings for the gas type being used and the stove must not be modified in anyway. -
Page 4: Technical Data
Technical Data with Eurosit Gas Valve 630 Harmony I Gas Conventional Flue Model Number 49892 Heat Output Maximum 7.1 kW/hr (24225 BTU) Heat Output Minimum 2.8 kW/hr (9553 BTU) Gas Input Maximum 8.6 kW/hr (29343 BTU) Gas Input Minimum 3.79 kW/hr (12700 BTU) Heat Control Thermostatic and Manual Fuel Types... - Page 5 Technical Data with Mertik Maxitrol GV34 Gas Valve Harmony I Gas Conventional Flue Model Number 49892 Heat Output Maximum 7.1 kW/hr (24225 BTU) Heat Output Minimum 2.8 kW/hr (9553 BTU) Gas Input Maximum 8.6 kW/hr (29343 BTU) Gas Input Minimum 3.79 kW/hr (12700 BTU) Heat Control Thermostatic and Manual...
-
Page 6: Dimensions
Primary Air Collar L.P.G Natural Gas The air collar should be adjusted to give The air collar should be adjusted to give a 3 mm wide opening. a 5mm wide opening. Dimensions 455mm 420mm 605mm 101 ID 670mm 525mm 1/2” BSP 45mm 200mm Optional decorative plinth... -
Page 7: Appliance Location
Appliance Location This stove must be mounted on a non combustible hearth. The hearth must have a minimum of 12mm non combustible material thickness. The stove can be placed on a wooden floor if it can support the weight and is stable enough that the stove does not move, and as long as the optional decorative cast iron hearth plinth is utilized. -
Page 8: Minimum Installation Clearances
Minimum installation clearances The measurements are for advice only. In all installations surrounding inflammable materials must not exceed 80ºC. The stove must always stand perfectly level and have sufficient space allowed for service work. Minimum clearance Minimum clearance from combustable from non materials inflammable... -
Page 9: Flue And Chimney Requirements
Flue and Chimney Requirements Before installation of the appliance, the chimney or flue system must be inspected and passed as suitable. In particular, the following should be checked: This appliance is suitable for installation onto the following flue types: A suitable sized diameter flexible or fabricated steel flue system, or a purpose built flue lining system. The cross-sectional area of the flue must not be less than the stoves flue connection (see appliance data for flue size). -
Page 10: Installation Of The Stove To The Flue System
Installation of the Stove to the Flue System Flue Outlet Direction Top Flue Option Fit rear section of top flue, supplied screw mounted to the appliance supply pallet. Using the gasket included in the components bag, attach the flue spigot to the top flue adaptor using the gasket. Rear Flue Option Remove the inner section of the top flue adaptor. -
Page 11: Gas Connection To The Stove
Gas Connection to the Stove Connect the 12mm to 1/2 inch BSP adapter elbow, supplied in the stoves bag of installation accessories, to the gas supply pipe at the rear of the stove. A 1/2 inch BSP to 15mm fitting will then be required to connect to the main gas supply to the stove, this is not supplied in the bag of installation accessories. -
Page 12: Coal Kit Layout
Coal Kit Layout Horse Shoe Coal Rear Coal Front Coal Small Coals 8 = Horse Shoe Coal 4, 5 & 9 Small Coals 1,2,3,6,7 = Large coals When bridgeing the coals between the front and rear coal matrix ensure that they do not drop down onto the burner bar. -
Page 13: Lighting
Gas Control Valve Sit Gas Valve Eurosit 630 Manual control. Disables the thermostatic control of the stove and allows the stove to operate at any chosen setting. Ignition Button. Pushing the button energizes Thermostatic control. the electronic spark generator to Allows the stove to be controlled produce a pulsed sparks to ignite room... - Page 14 Thermostatic Eurosit Gas Valve 630 with Manual Override Removing Gas valve Cover Plate Pilot adjustment SHOULD NOT BE Remove screw and ALTERED gently remove cover Low operation bypass. SHOULD NOT BE ALTERED Supply pressure Operating test nipple pressure test nipple Front Operating pressure adjustment...
- Page 15 Mertik Maxitrol GV34 Gas Valve Manual Control. The manual control will On/Off set the output from the Pilot Setting and burner, varying from Ignition Control maximum to minimum output or any setting in between. Lighting For full operating instructions see operation manual. Turn the on/off knob, smaller right hand knob, slightly counter-clockwise towards the ignition position until the control knob stops turning, press it down and hold for 5 seconds to allow the gas to the pilot light.
- Page 16 Mertik Maxitrol GV34 Gas Valve Removing Gas valve Cover Plate Pilot gas and pressure regulator adjustment screws are located under the cover. To remove the cover, first loosen the screw next to the temperature knob. Insert the tip of a small screwdriver into the slot on the side of the front cover next to the on/off knob, push outwards and lift the cover off.
- Page 17 Gas Pressure Test Nipple Locations Operating Pressure System Pressure Test Test Nipple Nipple (Line Pressure) Fitting the Remote Control Motor and Micro switch Fitting the Electrical Connections The wiring loom has 5 connections. a. 1 x four wire white connector. Connect this to the remote control receiver. b.
-
Page 18: Commissioning
Commissioning Carry out a gas leak test as regulations require. Ensure that all openable doors and windows in the room are shut, light the stove and operate on maximum for five minutes. Position a smoke match just beside the thermocouple TTB (see diagram) and check that all the smoke is drawn into the opening to the flue diverter. - Page 19 Information for Users which must be advised by the installer verbally or in writing. Hand this manual and the users manual to the user and explain the operation of the appliance. Also explain that: The stove must not be run with the door open. It must be serviced on a regular basis, i.e.
-
Page 20: Servicing Instructions
Servicing Instructions Note: This stove must be serviced regularly, at least once a year by a qualified and competent gas fitter registered with C.O.R.G.I., the Council of Registered Gas Installers. Annual Service The following outlines the minimum work required at the annual service. a) Carry out the ignition functional check. - Page 21 Pilot assembly Correct pilot flame position Thermocouple Pilot jet Ignition electrode E & OE nstructions Part number IN1024 Ed H © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Aug 2006...
-
Page 22: Changing Gas Operating Type
Changing Gas Operating Type The appliance will be set to operate with the gas type indicated on the packaging and on the appliance. If the gas operating type requires changing the following procedure must be followed. The main burner nozzle must be changed to the required nozzle for the gas type to be used. -
Page 23: Main Burner Jet Replacement
Main Burner Jet Replacement Air Collar Main Jet When fitting main gas burner jet ensure sealing washers are fitted. Washers Accessing Gas Valve and Thermocouple TTB Ignition Battery Replacement E & OE nstructions Part number IN1024 Ed H © EUROHEAT DISTRIBUTORS (H.B.S) LTD. Aug 2006... -
Page 24: Replacing Gas Valves Eurosit 630 Thermostatic And Manual
Replacing Gas Valves Eurosit 630 Thermostatic and Manual. In our experience, gas valves very rarely need replacing. When they do it is usually due to either the knob being forced or the thermostat capillary being crushed or twisted off. When replacing gas valves there are several things to be checked and possibly changed. Firstly you should check that the low pressure by pass screw is the correct one for the stove and the type of gas ( L.P.G. -
Page 25: Service Record
Service Record Year 1 Annual Service Completed :- Date ___________ Parts Replaced Service Engineer :- ......................... House Name ......................... Number/Street Name ......................... Locality Name ......................... Post Town ......................... County ..............Post Code ..............Telephone Number ............Year 2 Annual Service Completed :- Date ___________ Parts Replaced Service Engineer :- ......................... - Page 26 Euroheat, Efel and Nestor Martin have a policy of continual research and development and reserve the right to modify its appliances without prior notice. We make every effort to ensure that the information provided in this document is correct and accurate at the time of printing.
