INSTALLATION AND OPERATING INSTRUCTIONS
THERMIC DISTRIBUTION EUROPE
5 VOIE AXIALE
5660 COUVIN, BELGIUM
WARNING
If the information in this manual is not followed exactly, a fire or explosion
may result causing property damage, personal injury or loss of life.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity
of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
- Open windows
- Do not try to light any appliance.
- Do not touch any electrical switch; do not use any phone in your building.
- Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
- If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency
or the gas supplier.
FH35 – RH35
DIRECT VENT GAS STOVES
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
FH35##9710A
United States and Canada
Exclusive Importer
Fiamma LLC.
704 Main St. South
Woodbury CT 06798
www.fiammafirelaces.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fiamma FH35 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for NESTOR MARTIN Fiamma FH35

  • Page 1 FH35 – RH35 DIRECT VENT GAS STOVES INSTALLATION AND OPERATING INSTRUCTIONS United States and Canada THERMIC DISTRIBUTION EUROPE Exclusive Importer 5 VOIE AXIALE Fiamma LLC. 5660 COUVIN, BELGIUM 704 Main St. South Woodbury CT 06798 www.fiammafirelaces.com WARNING If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life.
  • Page 2: Safety Precautions

    SAFETY PRECAUTIONS For safe installation and operation of your NESTOR MARTIN stove, please, carefully read the following information: • All NESTOR MARTIN gas fired appliances must be installed in accordance with these instructions. Carefully read all the instructions in this manual first. Consult the building authority having jurisdiction to determine the need for a permit prior to commencing the installation.
  • Page 3: Product Specifications

    This appliance may be installed in an aftermarket, permanently located, manufactured home (USA only) or mobile home, where not prohibited by local codes. This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible with other gases, unless a certified kit is used. FH35##9710A...

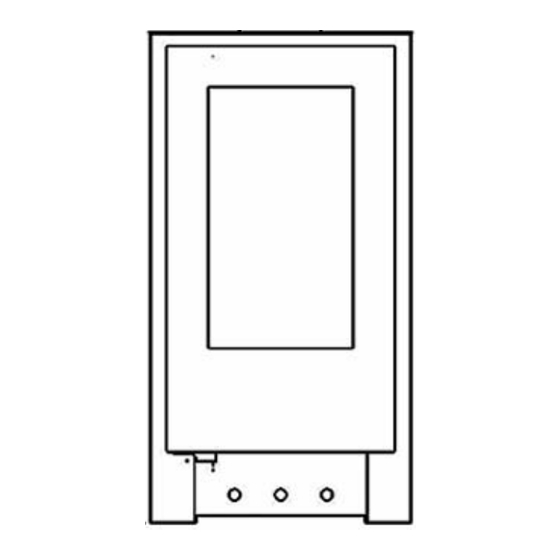

  • Page 4 STOVE DIMENSIONS FH35 22½" 41⅞" 15½" 5½" 8⅞" 36⅝" 22½" 41⅞" 17” 5½" 8⅞" 36⅝" RH35 FH35##9710A...
  • Page 5: Installation

    Common vents are prohibited. Refer to the manufacturer's instructions included with the venting system for complete installation procedures. LOCATION OF THE VENT TERMINAL The vent terminal must be located observing the minimum clearances shown on pages 6 and 7. FH35##9710A...
  • Page 6 2 sides beneath the floor: NOTE: Local codes or regulations may require different clearances. Important Note: Vent terminals cannot be recessed into a wall or siding FH35##9710A...
  • Page 7 C. Top flue outlet straight through the roof (using a Simpson Duravent type chimney cap) In each type of installation, it is essential to respect the minimum clearances to combustible materials. It is recommended that a bead of RTV High Temperature Silicone be applied to each vent joint. FH35##9710A...
  • Page 8 The horizontal termination must not be recessed into the exterior wall or siding. • Horizontal vent runs must be level toward the vent termination. • Clearances around the vent termination must be maintained. Total horizontal length Total vertical height FH35##9710A...
  • Page 9 All vegetation within three feet which may interfere with the draft. Nearby combustible materials that could come into contact with the exhaust gas. Other nearby openings (within 12”) through which exhaust gas could re-enter the building. Other obstructions or impediments to venting FH35##9710A...
  • Page 10 FH35##9710A...
  • Page 11 CERAMIC BURNER Your stove is equipped with a 100% ceramic fiber gas burner. Nestor Martin's ceramic burner offers numerous technical and esthetic advantages: - Flames and glowing effect similar to a real wood fire - Highly resistant to leaks, corrosion and deformation over time - The elasticity of its gel foam ceramic fibers allow the burner to retain its heat resistant properties without deforming, withstanding even the most extreme temperature variations.
  • Page 12 1” of space in between points. them. Place log B on the left side of the burner, in the Place log C at the front as shown, against the notches and leaning against log A. positioning points on the burner. FH35##9710A...
  • Page 13 By rubbing the embers into the faces of the logs which are heated by the gas jets, the fibers which adhere to the logs will glow. With suitable gloves, gently rub a square of fibers into the areas of the logs which glow when hot. FH35##9710A...
  • Page 14 Sit Nova Millivolt Fuel Conversion With Manual Flame Turn Down...
  • Page 15: Lighting Instructions

    Transmitter/Receiver and/or Battery Backup Pack. Access door inside the firebox must be removed to access the manual shutoff valve. If alternate shut-off valve was installed it can be shutoff instead of going through the fireplace to access the fireplace shut off valve. FH35##9710A...
  • Page 16 SIT IPI Proflame System FH35##9710A...
  • Page 17 ½ psi (3.5 kPa). Always check for gas leaks with a mild soap and water solution. Do not use an open flame for gas leak testing. FH35##9710A...
  • Page 18 Stone Placement NOTICE: Stones are laid out for Illustration purposes. You MUST place a layer of Glowing Embers (RockWool) (Only for OPTIONAL Fiamma Manufacturing llc Stainless Burner ) Supplied with unit Before stone placement FH35##9710A...
  • Page 19 Glass Placement ( Used Only with Fiamm Manufacturing Stainless steel Burner ) An Additional Ring Required to Hold Glass on top of Burner pan FH35##9710A...
  • Page 20: Maintenance

    Vacuum any dust on the logs and remove any lint form the main burner and pilot burner. After carefully replacing the logs in their correct positions, and the door has been released, relight the pilot, following the instructions on the attached label. And turn in the main burner. FH35##9710A...
  • Page 21 Some states do not allow limitation on how long an implied warranty lasts, so this limitation may not apply to you. NESTOR MARTIN and FIAMMA LLC. ARE NOT LIABLE for any special, indirect or consequential damages. FH35##9710A...

This manual is also suitable for:

Fiamma rh35

Table of Contents
