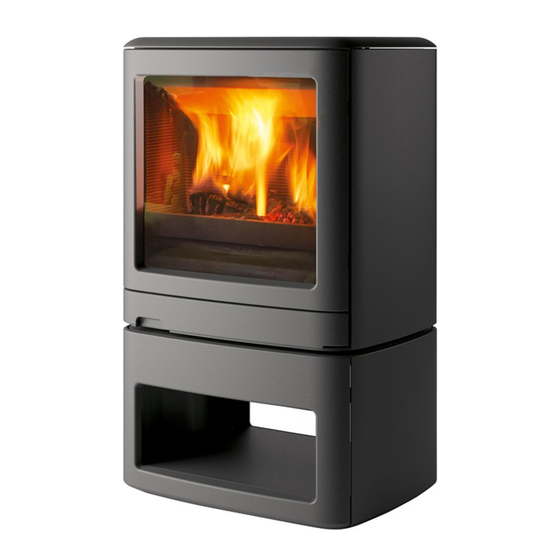

- Page 1 ® WOODBOX TECHNOLOGY MQ33 INSTRUCTIONS...
-
Page 3: Safety Requirements
In the event of a problem, contact your installer directly. • Ask him to obtain the original NESTOR MARTIN parts. Beware of forgeries. To obtain a part, contact your installer/dealer in order to identify the order number of the part. Pass on this information to your installer and he will order the part directly from NESTOR MARTIN. - Page 4 INTRODUCTION INTRODUCTION We thank you for choosing a NESTOR MARTIN stove. This model is ofcutting edge design and complies with environmental standards. It is equipped with Woodbox technology which constitutes an important technical advance in the fi eld of wood fuel.
-
Page 5: Installation Instructions
INSTALLATION INSTALLATION INSTRUCTIONS • Installation must conform to current building regulations. • The position of the appliance must respect the minimal distances in regards to combustible materials, shown on the descriptive plate. If necessary, install a wall protector. If the ground is not tiled, (i.e. fi tted carpet, parquet…) install a fl oor protector plate which extends out from under the appliance for at least 20cm at the back, 20cm at the sides and 50cm at the front. - Page 6 CONNECTING AN EXTERIOR AIR-INTAKE Your appliance is pre-equipped to have a vertical exterior air duct through the ground. If you have purchased an optional base, you can also connect the duct through that. Vertical connection through the ground Horizontal connection through the stand Ce type de raccordement n’est possible qu’avec Warning: for this kind of connection, install a un socle vendu en option.
-
Page 7: Optional Extras
OPTIONAL EXTRAS RANGE OF STAND Thanks to our range of quality stands, your stove has the possibility to become a practical, swivelling stove. Effectively, the stands are equipped with a bearing that allows them to be rotated 360°, giving you the chance to take full advantage of your wood fire. - Page 8 BENCH STAND This 6mm thick, lacquered-steel bench stand is equipped with a bearing so that your stove can move as well as having an exterior air-intake system. Dimensions in mm 1700 By default, your base is built for a rear exterior air-intake system but you also have the possibility of modifying it for an air-intake system through the bottom.
- Page 9 SETTING UP ON THE STAND Procedure • Place the stand in the prepared position. • Place the stove on the stand using a lift or sharing the weight between several people. • Unscrew the 2 fixing screws from the control panel and remove it (photo 1). Photo 1 Photo 2 •...
-
Page 10: Approved Fuels
FUELS APPROVED FUELS Your appliance has been designed to burn the following approved fuels: Recommended solid fuels: beech wood, birch, oak, ash, hornbeam and wood from fruit trees. Non-recommended solid fuels: conifer, damp wood, chemically treated wood, shavings, wood pellets, coke. It is prohibited to burn refuse or fl ammable liquids (petrol, solvents or motor oil) inside the stove. - Page 11 USER INSTRUCTIONS THE CONTROLS The appliance has two main controls: > the UPPER AIR FLOW control >the LOWER AIR FLOW control The two controls can be used together in a way to combine the two air fl ows to achieve optimum performance.
- Page 12 Controls>different uses With the Woodbox combustion system, the air needed for the combustion can be brought from above or below the fi re according to the type of fuel used. A wood fi re must be fuelled from above (upper air supply), while a coal fi re is better fuelled from below (lower air supply).
- Page 13 USING WOOD> LIGHTING MANUALY • Set the UPPER AIR SUPPLY to maximum • Set the LOWER AIR SUPPLY to maximum Tip: leave the door slightly open to stoke the fi re. It will increase the draw and allow an ember bed to be achieved. •...
- Page 14 USING WOOD>ADDING LOGS To prevent smoke fumes from entering the room while adding wood and to ensure a rapid recovery of the hearth, do as follows: • Refi ll the appliance only when there is no longer an ember bed. •...
-
Page 15: Emptying The Ashtray
SELF-CLEANING OF THE WINDOW Your appliance is equipped with an integrated glass pane cleaning system (“Airwash”) which uses hot air to minimalize the marks on the glass pane. If you use a dry fuel, a large part of the tar deposited on the window will burn and disappear when the appliance is running at a high temperature. -
Page 16: Maintenance
To clean a painted appliance, use a stiff brush. For tough marks, it is better to touch up the paint with a paint designed for stoves (NESTOR MARTIN high temperature gloss paint) than to try to clean them. In the event of condensation, wipe the drops before they dry. -
Page 17: Replacing The Glass Panel
REPLACING THE Glass panel To replace the glass: Front door • Lift the front door to remove it from the hinges. • Lay the door on a flat surface. • Unscrew the eight nuts on the iron door that holds the glass. •... -
Page 18: Garantie
NESTORMARTIN. To make a warranty request for a faulty part, have the part replaced and send the faulty part to a NESTOR MARTIN distributor for inspection. If the fault is covered by the warranty, you will not be charged for the replacement part. The transport costs of the replacement part and returning the faulty part are your responsibility. - Page 19 DIMENSIONS / AFMETINGEN / DIMENSIONI / DIMENSIONES / DIMENSIONS SOCLE / SOKKEL/ BASE / BASE / STAND: 993900216...
- Page 20 PERMUTATION BUSELOT DESSUS/ARRIERE/ OMBOUWEN VOOR BOVENAFVOER/ACHTERAFVOER / COLLEGAMENTO RACCORDO FUMI / PERMUTACIÓN DE LA SALIDA DE HUMOS / INTERCHANGING THE TOP/BACK FLUE OUTLETS...
- Page 21 PERMUTATION BUSELOT DESSUS/ARRIERE OMBOUWEN VOOR BOVENAFVOER/ACHTERAFVOER / COLLEGAMENTO RACCORDO FUMI / PERMUTACIÓN DE LA SALIDA DE HUMOS / INTERCHANGING THE TOP/BACK FLUE OUTLETS...
- Page 22 MQ33 MQ33 MQ33 Nº Nº Nº 38333153 38333153 38333153 993045228 993900217 993062697 993900226 993062588 993062696 993900227 993061841 993062698 993011838 99J05700DA315 993062270 993900212 99J14 993062591 993900228 993900218 993063045 993900229 993900209 993043665 993900230 993062583 993062695 993062097 993062109 993043519 993062092 993900219 993900204 993900231 993062595 993900206 993047631...
- Page 26 ® WOODBOX TECHNOLOGY SOTO DE LA MARINA - CANTABRIA Apdo. de correos 208 SANTANDER C07100DC126_1 09/2018...
