Summary of Contents for KERN ILJ-C

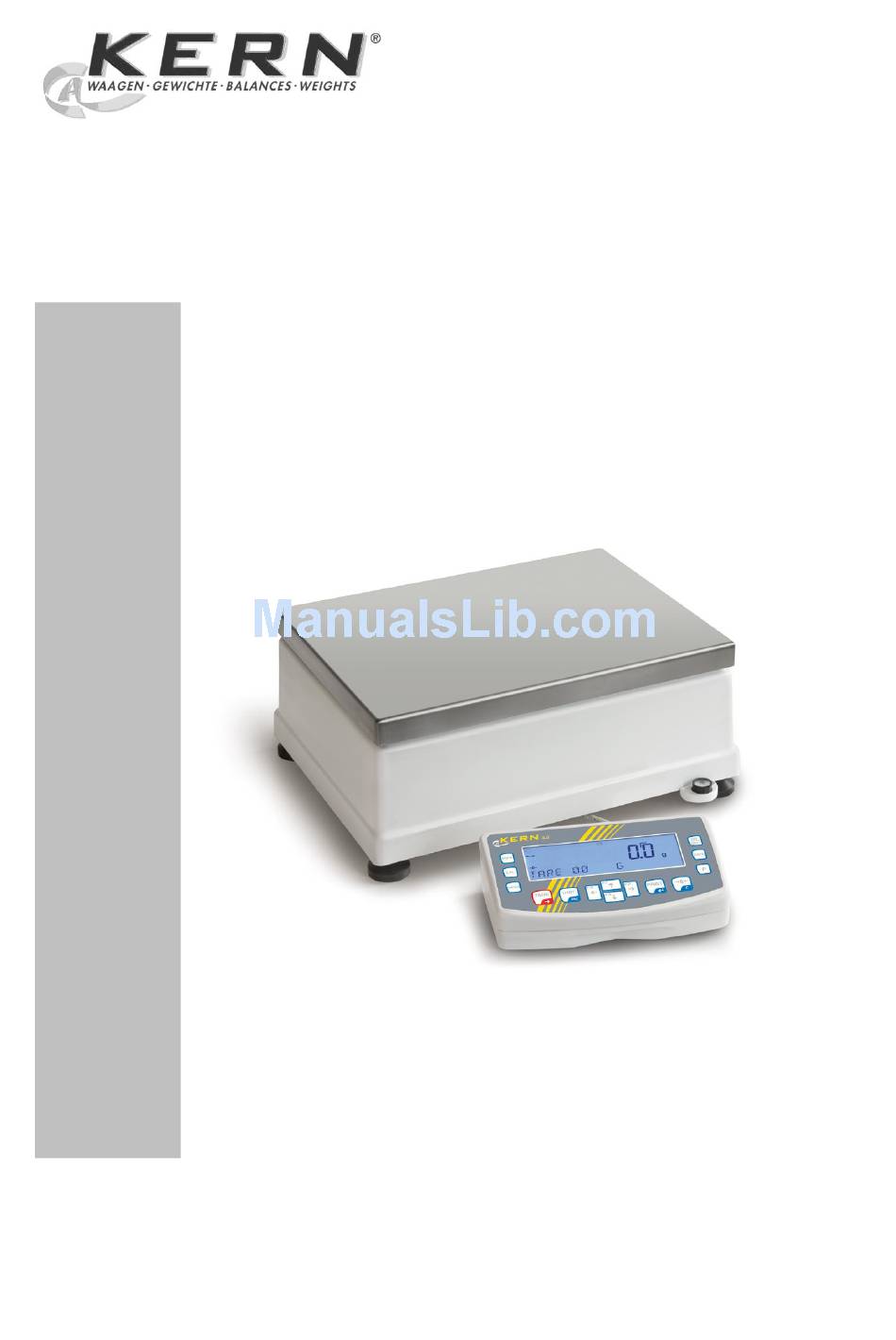

- Page 1 KERN & Sohn GmbH Ziegelei 1 Phone: +49-[0]7433- 9933-0 D-72336 Balingen Fax: +49-[0]7433-9933-149 E-Mail: info@kern-sohn.com Internet: www.kern-sohn.com Operating manual Platform balance KERN ILJ-C/ILS-C Version 2.0 10/2013 ILJ-C/ILS-C-BA-e-1320...
-
Page 2: Table Of Contents
7.2.2 P1.2 EXT.JUST.- External adjustment (ILS only) ..............20 7.2.3 P1.3 BE.JUST. User adjustment (model ILS-C only) ............21 P1.4 TEST JUST. – Adjustment report (models ILJ-C only) ..........22 7.2.4 7.2.5 Printing adjustment reports ....................23 Verification ..........................24... - Page 3 Additional operating modes ............... 51 13.1 Parts counting ........................51 13.2 Weighing with tolerance range ..................... 56 13.3 Dosing............................59 13.4 Percent determination......................62 13.5 Animal weighing ........................64 13.6 Statistics ..........................66 13.7 Totalization ..........................69 13.8 HOLD function ........................72 ILJ-C/ILS-C-BA-e-1320...
- Page 4 Exporting and importing data bases .................. 105 Servicing, maintenance, disposal ............108 19.1 Clean ............................108 19.2 Servicing, maintenance ....................... 108 19.3 Disposal ..........................108 Instant help ....................109 20.1 Error messages ........................110 Declaration of conformity ................. 111 ILJ-C/ILS-C-BA-e-1320...
-
Page 5: Technical Data
19.9 Permissible +10° C to +40° C ambient condition Humidity of air 80 % relative (not condensing) Input voltage 100 - 240 V AC, 50 Hz Power pack 15 V secondary voltage Interface RS 232C Underfloor weighing device Hooks ILJ-C/ILS-C-BA-e-1320... - Page 6 13.5 Permissible +10° C to +40° C ambient condition Humidity of air 80 % relative (not condensing) Input voltage 100 - 240 V AC, 50 Hz Power pack 15 V secondary voltage Interface RS 232C Underfloor weighing device Hooks ILJ-C/ILS-C-BA-e-1320...
-
Page 7: Dimensions
1.1 Dimensions ILJ-C/ILS-C-BA-e-1320... -
Page 8: Appliance Overview
2 Appliance overview Example KERN ILS-C: Weighing plate Bubble level Display Buttons Levelling screw ILJ-C/ILS-C-BA-e-1320... -
Page 9: Display And Keyboard Summary
2.1 Display and Keyboard Summary Example ILJ-C: 1. Stability display 2. Zero indicator 3. The non-verified value is given in brackets in verified scales. 4. Weighing unit “g“ 5. Information line ILJ-C/ILS-C-BA-e-1320... - Page 10 Call up menu Taring Switch-over weighing unit In menu: Return to weighing mode Scroll backwards in menu Scroll forward in menu Navigation key, see chap. 2.1.1 Calculate weighing data via interface Confirm/save in menu Zeroing Delete entry in data base ILJ-C/ILS-C-BA-e-1320...
-
Page 11: Navigation Buttons / Numeric Input
Navigation buttons / numeric input Button Designation Function Increase flashing digit Navigation button Decrease flashing digit Navigation button Digit selection to the right Navigation button Navigation button Digit selection to the left Confirm entry Navigation button Cancel input ILJ-C/ILS-C-BA-e-1320... -
Page 12: Basic Instructions
The balance may only be used according to the described conditions. Other areas of use must be released by KERN in writing. 3.3 Warranty Warranty claims shall be voided in case... -
Page 13: Monitoring Of Test Resources
In KERN's accredited DKD calibration laboratory test weights and balances may be calibrated (return to the national standard) fast and at moderate cost. 4 Basic Safety Precautions 4.1 Pay attention to the instructions in the Operation Manual... -
Page 14: Unpacking, Setup And Commissioning
Verify that there has been no damage and that all packing items are present. Scope of delivery / serial accessories: Balance, see chap. 2 Mains adapter Operating manual Protective cover Flush-mounted hook Transport locking device (models ILJ-C only) ILJ-C/ILS-C-BA-e-1320... -
Page 15: Placing
6.3 Placing Remove transport locking (only models ILJ-C) To detach transport locking device, unscrew locking screw. For transportation screw in locking screw carefully right up to the limit stop. Level balance with foot screws until the air bubble of the water balance is in the... -
Page 16: Mains Connection
Before connecting or disconnecting of additional devices (printer, PC) to the data interface, always disconnect the balance from the power supply. With your balance, only use accessories and peripheral devices by KERN, as they are ideally tuned to your balance. -
Page 17: Adjustment
Adjustment with external weight, see chap. 7.2.2 Adjustment can only be carried out when the weighing plate is free of objects. Any loads remaining on the weighing plate will be indicated by error message Er1Hi. You can cancel the adjustment by pressing the UNIT-key. ILJ-C/ILS-C-BA-e-1320... -
Page 18: Automatic Adjustment Using Internal Weight (Ilj-C Only)
7.1 Automatic adjustment using internal weight (ILJ-C only) With the internal adjustment weight, the weighing accuracy can be checked and re- adjusted at any time. The automatic adjustment function is always enabled. You can start adjustment at any time by pressing the CAL-key manually. -
Page 19: Menu Settings
TEST JUST. Adjustment test * = Locked in weighing scales with type approval certificate [Er 9 lock]. 7.2.1 P1.1 INT.JUST. – Internal adjustment (models ILJ-C only) For automatic internal adjustment see chap. 7.1 Starting internal adjustment manually Press the CAL-key or invoke menu “P1.1 INT.JUST.“... -
Page 20: P1.2 Ext.just.- External Adjustment (Ils Only)
REMOVE LOAD appears; remove adjustment weight. After successful adjustment the weighing scale will return automatically to sub-menu item P 1.2. To return to weighing mode, press the UNIT key. This function is locked in weighing scales with type approval certificate. ILJ-C/ILS-C-BA-e-1320... -
Page 21: P1.3 Be.just. User Adjustment (Model Ils-C Only)
The display is showing JUSTAGE, adjustment is starting. Adjustment is completed when the message REMOVE LOAD appears; remove adjustment weight. After successful adjustment the weighing scale will automatically return to sub- menu item P 1.3. Return to weighing mode by repeatedly pressing UNIT ILJ-C/ILS-C-BA-e-1320... -
Page 22: P1.4 Test Just. - Adjustment Report (Models Ilj-C Only)
7.2.4 P1.4 TEST JUST. – Adjustment report (models ILJ-C only) This function is applied to compare the internal adjustment weight with the saved value. The test is carried out automatically. The result will be shown on the display and issued via the interface if an optional printer is connected. -
Page 23: Printing Adjustment Reports
An adjustment report will be generated automatically after an adjustment and sent to the RS232 connection COM 1. For setting of adjustment report see chap. 17.1.1 Sample adjustment record: -------------------Just.Prot.------------------ Art Just External User Kern Draft Date 21.11.2013 Time 9:54:39 ID Balance 132051 Diff.Adjust. -0.2 g Signature …………………………………………….. ILJ-C/ILS-C-BA-e-1320... -
Page 24: Verification
If the seal mark is destroyed, verification looses its validity. Please observe all national laws and legal regulations. In Germany a re- verification will be necessary. ILJ-C/ILS-C-BA-e-1320... - Page 25 Balances with obligation to verify must be taken out of operation if: The weighing result of the balance is outside the error limit. Therefore, in regular intervals load balance with known test weight (ca. 1/3 of the max. load) and compare with displayed value. The reverification deadline has been exceeded. ILJ-C/ILS-C-BA-e-1320...
-
Page 26: Menu
Use the cursor key to scroll down. Use the cursor key to scroll up. Confirm setting / back Either confirm by pressing the PRINT-key or reject by to menu pressing the TARE-key. Save / back to see chap. 8.3 weighing mode ILJ-C/ILS-C-BA-e-1320... -
Page 27: Menu Overview
8.2 Menu overview The menu is sub-divided into eight menu blocks (P1 – P8). P1 Adjustment [Adjustment] P1.1 INT JUST. [Internal adjustment] ILJ-C only P1.2 EXT. JUST. [External adjustment] * P1.3 USER ADJUSTMENT [Entry adjustment weight] P1.4 TEST JUST [Adjustment test] ILJ-C only* P1.5... - Page 28 COM 2 [Transmission parameter COM 2] For sub-menus see menu item P3.1 P3.3 WIFI [W-LAN-connection] P3.3.1 STATUS NONE P3.3.2 SELECT NET P3.3.3 NET-PAR. P3.3.3.1 NAME P3.3.3.2 PASSWORD P3.3.3.3 CHANNEL NR AUTO/1/2/…14 P3.3.3.4 IP 10.10.1.250 P3.3.3.5 MASK 255.255.0.0 P3.3.4 WI-FI ILJ-C/ILS-C-BA-e-1320...
- Page 29 P4.3 BARCODE READER [not documented] P4.3.1 PORT NONE/COM 1/COM 2/NONE P4.4 ADDITIONAL DISPLAY SCREEN [not documented] P4.4.1 PORT COM 1/COM 2/NONE P4.5 EXTERNAL KEYS ILJ-C only P5 PRINTOUTS [Printer settings] P5.1 ADJUST.REP. [Printout of adjustment report] P5.1.1 DRAFT _/0-9/A….Z P5.2...
-
Page 30: Additional Useful Functions
[Setting the time] P6.7 DATE–FORM DDMMYYYY [Date format] P6.8 TIME-FORM [Time format] P7 INFO [Balance settings] P7.1 ID BALANCE 123456 [Balance ID] P7.2 BALANCE TYPE [Balance model] P7.3 PROGRAM VERSION [Software status] P7.4 TEMPERATURE 25.3 °C [Temperature] P7.5 ADJUSTMENT-DR [Printer settings] ILJ-C/ILS-C-BA-e-1320... -
Page 31: Exit Menu / Back To Weighing Mode
8.3 Exit menu / back to weighing mode Any changes carried out are stored by pressing the PRINT key. To cancel changes, press the UNIT-ESC-key. Then the balance returns automatically into the weighing mode. ILJ-C/ILS-C-BA-e-1320... -
Page 32: Entry By Navigation Keys
Decreasing the value for selected numeral or number Overview data input / data output: Lower-case letters have to be entered via a keyboard (such as on a computer). Examples: Data input Data output 1. Upper case characters OP1_WILK 2. Lower case characters op1_wilk ILJ-C/ILS-C-BA-e-1320... -
Page 33: User
When logging in next time, select respective user and enter password. The weighing scale starts operation according to the authorisations of the selected user. Logout: Select user and confirm “NONE“ by pressing PRINT. The balance returns automatically into weighing mode. For creating new users and allocating authorisations, see chap. 18.1. ILJ-C/ILS-C-BA-e-1320... -
Page 34: Authorisation Levels
DATE and TIME The user is entitled to: Carry out all weighing processes ADMINISTRATOR Access to all user parameters, functions and to editing of data bases Authorisations are set in menu chap. 8 under menu item P6.2 (See chap 18.1). ILJ-C/ILS-C-BA-e-1320... -
Page 35: Weighing
] and set to zero with the help of the TARE key, as required. Place goods to be weighed on balance. Wait until the stability display appears ( Read weighing result When an optional printer is connected, the weighing value can be edited. ILJ-C/ILS-C-BA-e-1320... -
Page 36: Weighing Units Switch-Over
Use the arrow keys for entering the tare value and confirm by pressing PRINT. The entered tare value will be displayed with a “ “ 11.4.2 Deleting the tare value To delete the tare value, press the TARE-key or enter value“0.000“. ILJ-C/ILS-C-BA-e-1320... -
Page 37: Underfloor Weighing
(danger of breaking) CAUTION Always ensure that there are no persons, animals or objects that might be damaged underneath the load. After completing the underfloor weighing the opening on the bottom of the balance must always be closed (dust protection). ILJ-C/ILS-C-BA-e-1320... -
Page 38: Selecting The Operating Mode
Press the MODE-key and the name of the first available operating mode will be displayed. Weighing mode To go to other functions press or . Piece counting (example) Select desired function by pressing . Select additional functions in the same way (See chap. 8 menu – P2 operating modules). ILJ-C/ILS-C-BA-e-1320... -
Page 39: To Select Operating Modes
(example) YES will be flashing (example) Either confirm with or with go to NO and then acknowledge with Please repeat this sequence of operations for any other operating mode available. Press and the scales will return to weighing mode. ILJ-C/ILS-C-BA-e-1320... -
Page 40: Weighing Scale Settings Operating Mode Weighing
Save your selected setting by pressing PRINT (example) You have successfully saved your filter setting and the weighing scale will return to menu. To return to weighing mode, press UNIT repeatedly. ILJ-C/ILS-C-BA-e-1320... -
Page 41: Rest Position Control
Use the arrow keys to select your desired setting Save your selected setting by pressing PRINT (example) The setting is saved in such a way that the weighing scale returns to the menu. To return to weighing mode, press UNIT repeatedly. ILJ-C/ILS-C-BA-e-1320... -
Page 42: Auto Zero
YES - – Auto zero enabled NO – Auto zero disabled To save desired setting, press PRINT (example) The setting is saved in such a way that the weighing scale returns to the menu. To return to weighing mode, press UNIT repeatedly. ILJ-C/ILS-C-BA-e-1320... -
Page 43: Hide Last Decimal Place
IF STABLE – last decimal place is only displayed for stable weighing values. To save desired setting, press PRINT (example) The setting is saved in such a way that the weighing scale returns to the menu. To return to weighing mode, press UNIT repeatedly. ILJ-C/ILS-C-BA-e-1320... -
Page 44: Environmental Conditions
(vibrations, etc.) STABLE – normal ambient conditions To save desired setting, press PRINT (example) The setting is saved in such a way that the weighing scale returns to the menu. To return to weighing mode, press UNIT repeatedly. ILJ-C/ILS-C-BA-e-1320... -
Page 45: Printout Mode
Invoke menu item P2.2.2, go to PRINTOUT MODE, press ALL will be flashing. Use the arrow keys to select your desired setting Confirm with PRINT (example) You have successfully saved this setting. To return to weighing mode, press UNIT. ILJ-C/ILS-C-BA-e-1320... -
Page 46: Setting Weighing Units
UNIT-key. To return to weighing mode, press UNIT. For all other weight units follow the same sequence of operations. Weighing scales with type approval options are restricted to [g] [kg] [ct]. ILJ-C/ILS-C-BA-e-1320... -
Page 47: How To Set A Standard Weight Unit
The previously set standard weighing unit will be displayed. G will be flashing. Use the arrow keys to select the desired standard weighing unit. Confirm with PRINT (example) KG is now set as standard weighing unit. To return to weighing mode, press UNIT. ILJ-C/ILS-C-BA-e-1320... -
Page 48: Information Display
(example) To save desired setting, press PRINT The setting is saved in such a way that the weighing scale returns to the menu. To return to weighing mode, press UNIT repeatedly. The information display shows GROSS. ILJ-C/ILS-C-BA-e-1320... -
Page 49: Special Information
Confirm with PRINT. (example) The entered text will be displayed as special information. Press UNIT repeatedly until the balance is in weighing mode. The entered text will be displayed on the information line. ILJ-C/ILS-C-BA-e-1320... -
Page 50: Shortcut Keys
Use the arrow keys to select the desired function To save desired setting, press PRINT (example) This function is now allocated to the F1- key. To return to weighing mode, press UNIT repeatedly. If the F1-key is pressed in weighing mode, the set function will appear. ILJ-C/ILS-C-BA-e-1320... -
Page 51: Additional Operating Modes
(the so- called reference quantity). Counting is then carried out on the basis of the calculated average piece weight. As a rule: The higher the reference quantity the higher the counting exactness. ILJ-C/ILS-C-BA-e-1320... - Page 52 Use the arrow keys to select ENTER REFERENCE WEIGHT. This completes the allocation of the function used to enter the reference weight to the F1-key. In piece counting mode this enables you to invoke the function used to enter the reference weight by pressing F1. ILJ-C/ILS-C-BA-e-1320...
- Page 53 (example) You have successfully entered a reference weight and piece counting can be started. Return to weighing mode Press MODE and F1 WEIGHING will be displayed. Confirm by pressing PRINT and the weighing scale will change to weighing mode. ILJ-C/ILS-C-BA-e-1320...
- Page 54 DETERMINE REFERENCE WEIGHT. This completes the allocation of the function used to determine the reference weight by weighing to the F2-key. In piece counting mode this enables you to invoke the function used to determine the reference weight by pressing F2. ILJ-C/ILS-C-BA-e-1320...
- Page 55 PRINT. The weight as well as the number of pieces matching this weight will be displayed. Remove reference weight. The balance is now in parts counting mode and counts all units on the weighing plate. ILJ-C/ILS-C-BA-e-1320...
-
Page 56: Weighing With Tolerance Range
The tolerance marker provides the following information: Goods to be weighed below tolerance limit Goods to be weighed within tolerance range Goods to be weighed above tolerance limit Lower limit (example) Upper limit (example) ILJ-C/ILS-C-BA-e-1320... - Page 57 Use the arrow keys to select ENTER THRESHOLDS. (example) Confirm with PRINT. This completes the allocation of the ENTER THRESHOLDS function control weighing to the F3-key. In control weighing mode this allows you to invoke the function used to enter limits by pressing F3. ILJ-C/ILS-C-BA-e-1320...
- Page 58 The left digit will be flashing. Use the arrow keys to enter the lower limit. The lower limit value is thus entered. The display changes to the prompt for entering the upper limit value. (example) ILJ-C/ILS-C-BA-e-1320...
-
Page 59: Dosing
If dosing mode is enabled, the weighing scale will work at increased display speed. Please keep in mind that the weighing scale reacts very sensitively to ambient conditions. Enter the target weight (reference weight) along with the tolerance: The ENTER REFERENCE WEIGHT function is allocated to the F4-key. Select dosing mode ILJ-C/ILS-C-BA-e-1320... - Page 60 The symbol for dosing will be displayed at the upper margin of the display. The setting REFERENCE WEIGHT 0.0 will be displayed at the lower margin. Entering target weight: The display used to enter the target weight appears with the left digit flashing. ILJ-C/ILS-C-BA-e-1320...
- Page 61 Weight smaller than target weight Weight within tolerance Weight greater than target weight Return to weighing mode Press MODE and F1 WEIGHING will be displayed. Confirm by pressing PRINT and the weighing scale will change to weighing mode. ILJ-C/ILS-C-BA-e-1320...
-
Page 62: Percent Determination
Example: 1 kg is supposed to be equivalent to 100%. (example) The reference weight of 1 kg has now been saved as 100% value. Remove reference weight and place load. The weight will be displayed in percent according to reference weight. ILJ-C/ILS-C-BA-e-1320... - Page 63 PRINT. Example: 2 kg (example) The reference weight of 2 kg has now been saved as 100% value. Remove reference weight and place load. The weight will be displayed in percent according to reference weight. ILJ-C/ILS-C-BA-e-1320...
-
Page 64: Animal Weighing
Manually – after pressing a key or Automatically – after selecting the START function Manual confirmation In weighing mode: Use the arrow keys to select AUTOSTART NO. To return to weighing mode, press UNIT: Use the arrow keys to select F8 animal weighing function. ILJ-C/ILS-C-BA-e-1320... - Page 65 Press MODE and F1 WEIGHING will be displayed. Confirm by pressing PRINT and the weighing scale will change to weighing mode. Carrying out automatic measuring In weighing mode: Use the arrow keys to select AUTOSTART YES. To return to weighing mode, press UNIT: ILJ-C/ILS-C-BA-e-1320...
-
Page 66: Statistics
Statistics data available for calculation: Number of samples Total weight of samples Mean value derived from batch Min value in batch Max value in batch Standard Deviation Difference between max and min in batch Standard deviation for batch Variance factor ILJ-C/ILS-C-BA-e-1320... - Page 67 After all values have been saved, the results are ready for evaluation under statistics. Press the F-key. (example) The arrow keys allow you to display all data: Examples: 455.600 50.6222 49.939 51.380 1.441 0.39605 0.78 PRINTING ILJ-C/ILS-C-BA-e-1320...
- Page 68 The start window for the statistics function will appear. Weighing data has been deleted. Return to weighing mode Press MODE and F1 WEIGHING will be displayed. Confirm by pressing PRINT and the weighing scale will change to weighing mode. ILJ-C/ILS-C-BA-e-1320...
-
Page 69: Totalization
Add up: Place load A and wait until the stability display appears, the press PRINT. Weight is displayed as total, the weighing scale automatically tared (NET appears) followed by the zero display. “1“ is displayed for number of (example) ingredients. ILJ-C/ILS-C-BA-e-1320... - Page 70 With the further ingredients proceed as described above. (example) Once all ingredients have been added: The total weight for the ingredients will be displayed and printed out if a printer is connected. The report contains the weight for all ingredients, the total and the tare weight. ILJ-C/ILS-C-BA-e-1320...
- Page 71 To return to the start window of the adding-up function press UNIT. Data is reset to zero. Return to weighing mode Press MODE and F1 WEIGHING will be displayed. Confirm by pressing PRINT and the weighing scale will change to weighing mode. ILJ-C/ILS-C-BA-e-1320...
-
Page 72: Hold Function
To carry out additional measurements, remove the sample from the weighing plate and press UNIT. Return to weighing mode Press MODE and F1 WEIGHING will be displayed. Confirm by pressing PRINT and the weighing scale will change to weighing mode. ILJ-C/ILS-C-BA-e-1320... -
Page 73: Further Useful Functions "P6 Other
GERMAN will be flashing. Use the arrow keys to select the language of your choice. Example: Confirm SPANISH by pressing PRINT. (example) The desired language is now set. (example) To return to weighing mode, press UNIT repeatedly. ILJ-C/ILS-C-BA-e-1320... -
Page 74: Authorisations
Setting authorisations: AUTHORISED ADMIN is displayed ADMIN is flashing. Use the arrow keys to select the desired authorisation. Example: Confirm USER by pressing PRINT. (example) The authorisation USER is now set. (example) To return to weighing mode, press UNIT repeatedly. ILJ-C/ILS-C-BA-e-1320... -
Page 75: Acoustic Signal For Key Operation
(example) YES will be flashing. Use the arrow keys to select the desired setting. Example: Confirm NO by pressing PRINT. (example) The key-operated audio signal is now disabled. (example) To return to weighing mode, press UNIT repeatedly. ILJ-C/ILS-C-BA-e-1320... -
Page 76: Background Illumination And Brightness Control For Display
Use the arrow keys to select the desired setting. Example: Confirm 100 by pressing PRINT. (example) The brightness for the Background illumination is now set to 100, i.e. maximum brightness. (example) To return to weighing mode, press UNIT repeatedly. ILJ-C/ILS-C-BA-e-1320... -
Page 77: Date
One of the digits will be flashing. Use the arrow keys to set the current date. Confirm with PRINT (example) The current date is now set. (example) To return to weighing mode, press UNIT repeatedly. ILJ-C/ILS-C-BA-e-1320... -
Page 78: Time
One of the digits will be flashing. Use the arrow keys to enter the current time. Confirm with PRINT (example) The current time is now set. (example) To return to weighing mode, press UNIT repeatedly. ILJ-C/ILS-C-BA-e-1320... -
Page 79: Date Format
(example) The date format DD.MM.YYYY – Day-Month-Year will be flashing. Use the arrow keys to select the desired format. Confirm with PRINT (example) The format settings will be displayed. (example) To return to weighing mode, press UNIT repeatedly. ILJ-C/ILS-C-BA-e-1320... -
Page 80: Time Format
24 H will be flashing. Use the arrow keys to select the desired format. Confirm with PRINT (example) The format settings will be displayed. From now on time will be displayed in this format. (example) To return to weighing mode, press UNIT repeatedly. ILJ-C/ILS-C-BA-e-1320... -
Page 81: Glp/Iso Report "P5.3 Glp Print
P5.3.11 SPECPRINT One of the four special printouts is issued Printout example: --------------------------------------------------- Date 21.11.2013 Time 9:54:39 User Kern Product Flour Tare 1000 g Gross 2000 g Current result 2000 g ---------------------------------------------------- ILJ-C/ILS-C-BA-e-1320... - Page 82 = Do not display time = Display time Confirm settings by pressing the PRINT key. Weighing balance returns to menu. Press and the next menu item P5.5.5 USER will appear. Follow the same sequence of operations for the remaining settings. ILJ-C/ILS-C-BA-e-1320...
-
Page 83: Data Output Rs 232 And Usb
Use a suitable cable to connect the display unit to the interface of the printer. Faultless operation requires an adequate KERN interface cable. Communication parameters (baud rate, bits and parity) of display unit and printer must match. -
Page 84: Setting Interface Rs 232
PRINT. The baud rate is now set. Press UNIT repeatedly until the weighing scale has returned to weighing mode. (example) Set parity Select menu item P3.1.2 and adjust settings for parity as described above. ILJ-C/ILS-C-BA-e-1320... -
Page 85: Interface Cable
14 - 16 Stability symbol [blank space] If stable If stable If error (Command + exceeded) If error (Command – exceeded) [blank space] For positive and negative values Character 9 digits Weight With right justifications 3 digits Unit With left justification ILJ-C/ILS-C-BA-e-1320... -
Page 86: Remote Control Instructions
Character If stable Stabilisation [blank space] symbol If stable If error (Command + exceeded) If error (Command – exceeded) [blank space] Character For positive and negative values 9 digits With right justifications Weight 3 digits With left justification Unit ILJ-C/ILS-C-BA-e-1320... - Page 87 Enable continuous data output in standard unit Disable continuous data output in standard unit Enable continuous data output in current unit Disable continuous data output in current unit Send all implemented commands Each command must end in CR LF suffix. ILJ-C/ILS-C-BA-e-1320...
-
Page 88: Connecting External Devices
Select menu item P4 DEVICES and set menu item P4.2 PRINTER. Select port where computer is to be connected. Confirm port by pressing PRINT and press UNIT to return to weighing mode. Optional connections: COM 1 or COM 2: RS232 interfaces ILJ-C/ILS-C-BA-e-1320... -
Page 89: Printer Settings
17.1 Printer settings Printout examples 5000.1 g Stable weighing value 5000.1 g Instable weighing value - 5000.1 g Negative weighed value 5000.1 g Positive weighing value Overload 24.9 % Percent determination 10 pcs Piece counting ILJ-C/ILS-C-BA-e-1320... -
Page 90: Setting An Adjustment Report
LINES Print line between date and signature Print box for signature of implementing person P5.1.10 SIGNATURE Printout example adjustment report: -------------------Just.Prot.------------------ Art Just External User Kern Draft Date 21.11.2013 Time 9:54:39 ID Balance 132051 Diff.Adjust. -0.2 g Signature …………………………………………….. ILJ-C/ILS-C-BA-e-1320... -
Page 91: Set Header
Placing one of the four special printouts on the P5.2.13 SPECIAL header PRINTOUT NONE SPEC 1 SPEC 2 SPEC 3 SPEC 4 Printout example header: ---------------------------------------------------- Operating module Weighing User Kern Date 21.11.2013 Time 9:54:39 ID Balance 132051 ---------------------------------------------------- ILJ-C/ILS-C-BA-e-1320... -
Page 92: Print Measured Result
Time 9:54:39 User Kern Product Flour Tare 1000 g Gross 2000 g Current result 2000 g ---------------------------------------------------- 17.1.4 Adjust footer You can adjust the settings to be printed on the footer. Select P 5.3 and adjust the desired settings. ILJ-C/ILS-C-BA-e-1320... -
Page 93: Data Bases
The following data can be entered for each user: NAME (30 characters), CODE (6 characters) PASSWORD (8 characters, numerals only) AUTHORISATIONS (USER, ADVANCED, ADMIN) LANGUAGE (all languages available in the weighing scale) Authorisation levels: The software contains three authorisation levels (See chap. 10.2) Add user name ILJ-C/ILS-C-BA-e-1320... - Page 94 A short line will appear Use the arrow keys to enter the 6-digit numeric code and confirm by pressing PRINT. For details on authorisation levels please see chap. 10.2 The code for this user is now saved in the data base. (example) ILJ-C/ILS-C-BA-e-1320...
- Page 95 Setting authorisations for the user User name will be flashing. Use the arrow keys to select the desired authorisation and confirm by pressing PRINT. For further details on authorisations see chap. 10.2 Authorisation as administrator has now been assigned to the user. ILJ-C/ILS-C-BA-e-1320...
- Page 96 Select b4.1 as described above Use the arrow key to select the user to be deleted. DELETE will appear. Confirm with PRINT. This indicates that the user has been deleted. After entering all data press UNIT to return to weighing mode. ILJ-C/ILS-C-BA-e-1320...
-
Page 97: Data Base Products
NEW will be displayed. “N“ will be (example) flashing. Use the arrow keys to enter You have now saved the new the name for the product and confirm by product and name to the data base. pressing PRINT. ILJ-C/ILS-C-BA-e-1320... - Page 98 Entering tare weight of packaging for product Select b4.2.1.5 TARE Presented 000000 Use the arrow keys to enter the weight of the packaging for the product and confirm by pressing PRINT. TARE 200.00 g (example) will be displayed and has been allocated to the product. ILJ-C/ILS-C-BA-e-1320...
- Page 99 MAX 1500.00 g (example) will be displayed and has been allocated to the product. Entering threshold value during dosage Select b4.2.1.8 MAX Presented 000000 Use the arrow keys to enter the threshold value and confirm by pressing PRINT. TOLERANCE 220.00 g (example) will be displayed and has been allocated to the product. ILJ-C/ILS-C-BA-e-1320...
-
Page 100: Data Base Taring
PRINT. the weight of the packaging. Entering weight of packaging Use the arrow keys to enter the tare (example) value and confirm by pressing The weight value of the packaging PRINT. has been saved. ILJ-C/ILS-C-BA-e-1320... -
Page 101: Data Base Weighing Processes
Person who implemented measurement (logged-in user) Operating module used to carry out measurement Value of variables 1 and 2 If measurement of 1001 was saved, measurement 1 will be overwritten automatically. The measurements saved to data base Weighing cannot be deleted. ILJ-C/ILS-C-BA-e-1320... - Page 102 Date of measurement Time of measurement Use the arrow keys to change to the next saved measurement. To invoke additional data for the measurement, press F. (Date of measurement) (Time of measurement) (Weight of measurement) (Tare value of packaging) ILJ-C/ILS-C-BA-e-1320...
- Page 103 15). The settings there set to YES will be printed. Printout example: Date 21.06.2013 Time 12:48:55 User Kern Product Flour 400.0 g -------------------Just.Prot.--------------------- Art Adjust External User Kern Date 21.11.2013 Time 9:54:39 ID Balance 132051 Diff.Adjust. -0.2 g ---------------------------------------------------- Signature ……………………………………………. …………………………………………….. ILJ-C/ILS-C-BA-e-1320...
-
Page 104: Alibi Memory
Date of measurement Time of measurement Each can be invoked as described above (chap. 18.4). If menu item b4.5.1.7 is selected and a printer connected, data can be printed by pressing PRINT. (Dependent on settings selected in GLP report chap. 15). ILJ-C/ILS-C-BA-e-1320... -
Page 105: Exporting And Importing Data Bases
This process has to be performed via USB connection. For this purpose connect USB stick to USB port type A. The weighing scale detects the USB stick automatically. The display shows the message for import and export of data. DataEXPORT DataIMPRORT ILJ-C/ILS-C-BA-e-1320... - Page 106 Data from the data bases PRODUCTS, USER and TARE can be read out. Importing data The IMPORT function is used to transmit data between weighing scales. To import data, insert the USB stick in the USB port type A. ILJ-C/ILS-C-BA-e-1320...
- Page 107 IE 2.1 Export ALL DATA BASES IE 2.2 Export USER data base IE 2.3 Export PRODUCTS data base IE 2.4 Export TARING data base IE 2.5 Export user PARAMETER Data from the data bases ALIBI and WEIGHING cannot be imported. ILJ-C/ILS-C-BA-e-1320...
-
Page 108: Servicing, Maintenance, Disposal
Spilled weighing goods must be removed immediately. 19.2 Servicing, maintenance The appliance may only be opened by trained service technicians who are authorized by KERN. Ensure that the balance is regularly calibrated, see chap. Monitoring of test resources. -
Page 109: Instant Help
Severe temperature variations in the room or the carried out frequently. instrument No data transfer between Communication settings are wrong. printer and balance. The menu setting cannot be Menu item is locked for models with type approval changed. certificate. ILJ-C/ILS-C-BA-e-1320... -
Page 110: Error Messages
<= 0, Reference weight = 0 Er7 tout Disconnecting time too short Input outside range Er8 outr e.g. for tolerance control: Input upper limit<lower limit Er9 Lock Function blocked Er10 cal Adjustment error e.g. incorrect adjustment weight} ILJ-C/ILS-C-BA-e-1320... -
Page 111: Declaration Of Conformity
EN 61010-1:2010 Datum 26.11.2013 Signatur Date Signature Ort der Ausstellung 72336 Balingen Albert Sauter Place of issue KERN & Sohn GmbH Manager Managing director KERN & Sohn GmbH, Ziegelei 1, D-72336 Balingen, Tel. +49-[0]7433/9933-0 Fax +49-[0]7433/9933-149, E-Mail: info@kern-sohn.com, Internet: www.kern-sohn.com ILJ-C/ILS-C-BA-e-1320...
