STATEMENT OF LIMITED WARRANTY
MÁQUINAS AGRÍCOLAS JACTO S.A. shall warrant the equipment described in this
manual and shall repair or replace parts and components which, under normal operation and
wear, in accordance with technical recommendations, show DEFECTS IN MATERIAL OR
WORKMANSHIP, based on the following conditions.
WARRANTY PERIOD
- 01 (one) year from the date of sale to the original purchaser.
WARRANTY APPLICATION
- JACTO shall honour this warranty, free of charge, if any part or component shows defect
in MATERIAL OR WORKMANSHIP, after final analysis at the factory.
THIS WARRANTY SHALL BE NULL & VOID IN CASE OF:
- Misuse of the equipment against specifications in the OPERATOR'S MANUAL, overwork
or accidents.
- Preventive/remedial maintenance performed by unauthorized people.
- Use of parts and components not supplied by JACTO.
- Modification of the equipment or any characteristic of the original design.
THIS WARRANTY SHALL EXCLUDE:
- Parts which show wear and tear due to use, UNLESS THEY SHOW DEFECTS IN
WORKMANSHIP, ASSEMBLY OR MATERIAL.
- Damages resulting from accidents.
- Transportation or freight of the equipment, parts and components in case such warranty
is not approved.
- Transportation and mobilization of technicians.
GENERAL INFORMATION:
- Parts replaced within the warranty period shall be property of JACTO.
- The warranty on replaced parts and components shall expire together with the equipment
warranty period.
- Eventual delays in performing services shall not give the owner right either to indemnity or
to extension of the warranty period.
- JACTO reserves the right to modify its products or to interrupt the manufacture without prior notice.
M Á Q U I N A S A G R Í C O L A S J A C T O S . A .
Rua Dr. Luiz Miranda, 1650
17580-000 - Pompéia - SP - Brasil
Tel.: +55 14 3405-2100 - Fax: +55 14 3452-1306
E-mail: impex@jacto.com.br
Home page: www.jacto.com.br
11/2004 - 120543 - 0004-MI
OPERATOR'S MANUAL
PJH
1- INTRODUCTION
This manual contains information for the proper assembly, operation and care of your sprayer.
Carefully read and follow the instructions contained in this manual before using your sprayer.

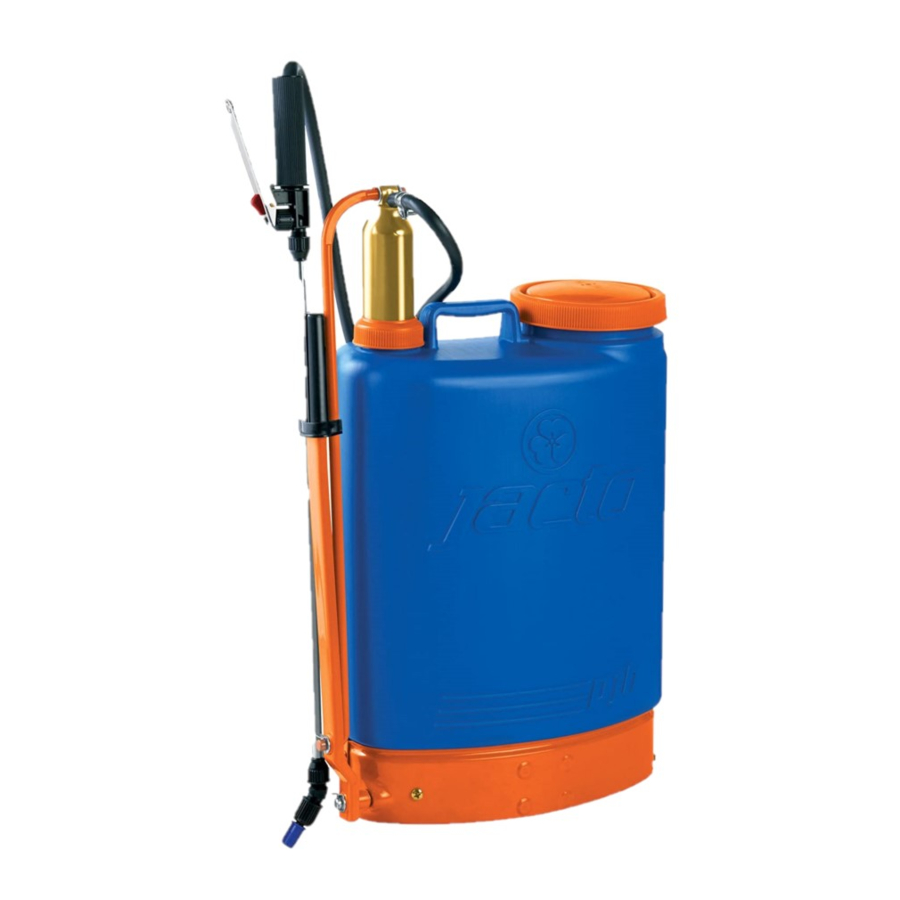

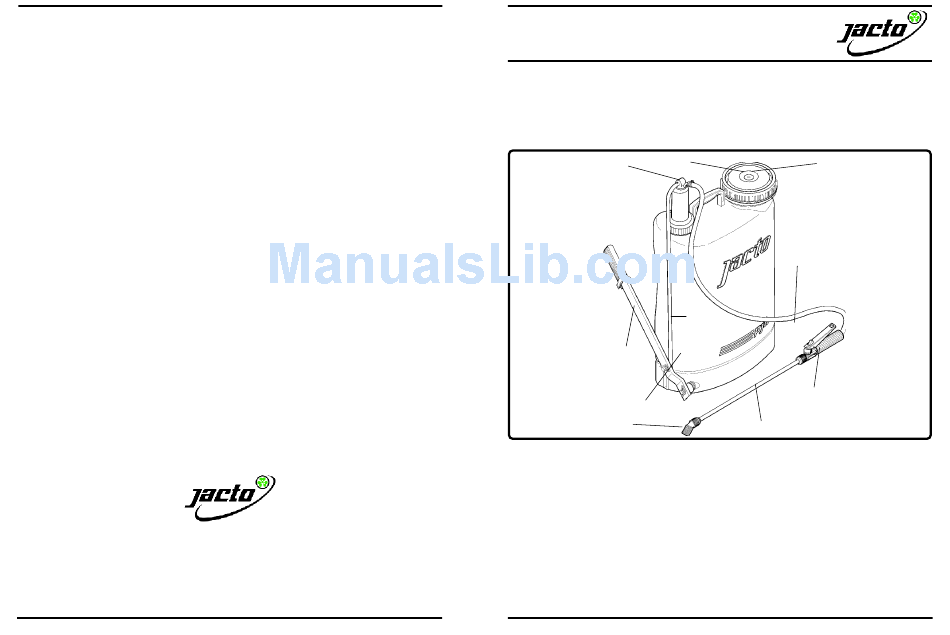

2- SPRAYER VIEW
Lid
Chamber
Lever
Tank
Nozzle
3- SPECIFICATIONS
Model ......................... PJH
Net weight .................. 5,4 kg
Tank
- Capacity ................... 20 liters
- Material .................... Polyethylene
- Fill opening diameter . 140 mm
Diaphragm
Hose
Rod
Trigger
valve
Lance
Pump
- Type ........................................ Piston
- Material .................................... Polyamide
- Working pressure (max.) .......... 6 kgf/cm²
Lance length .............................. 600 mm
Hose length ............................... 1,350 mm
Nozzle fitted .............................. JD-12P
