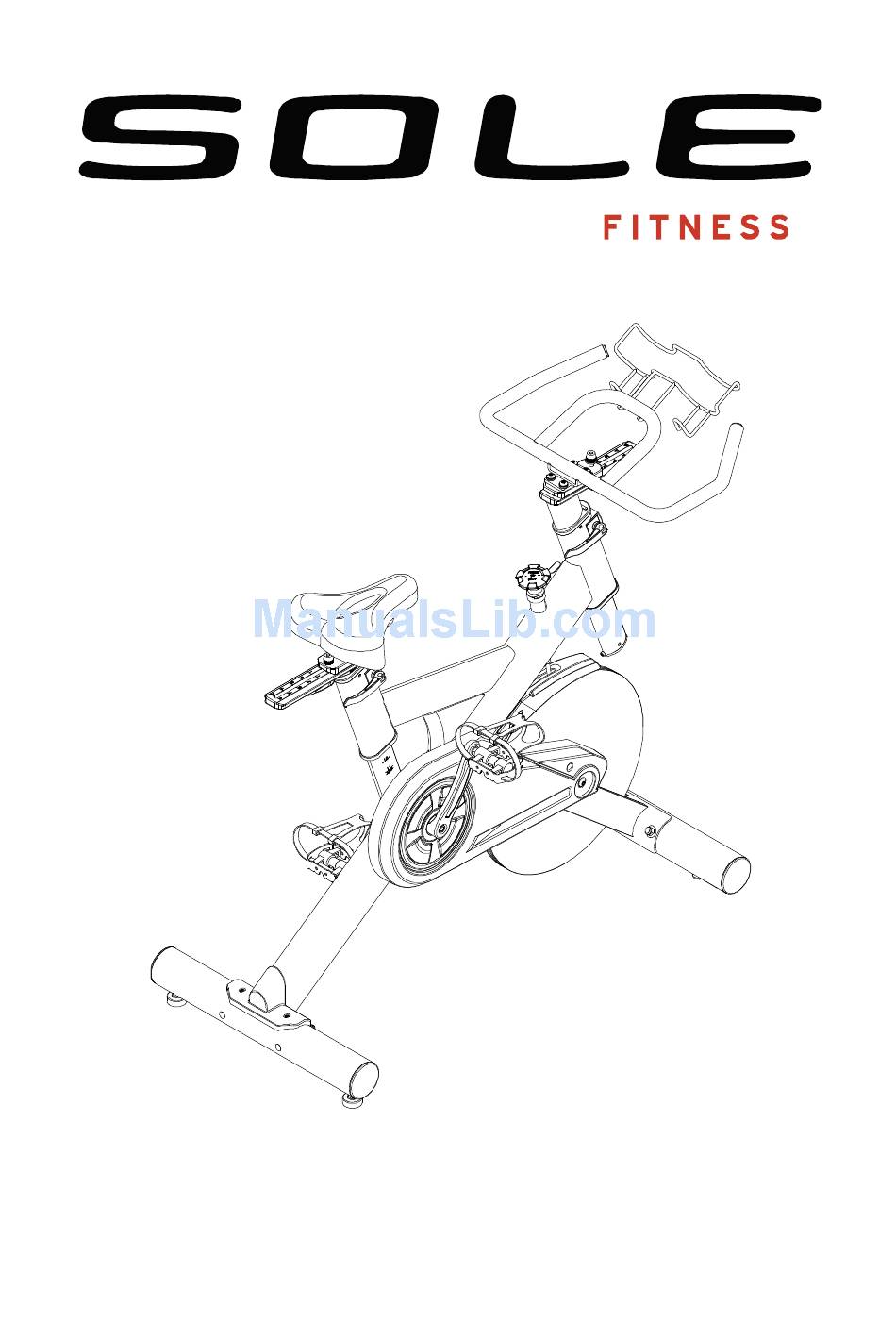

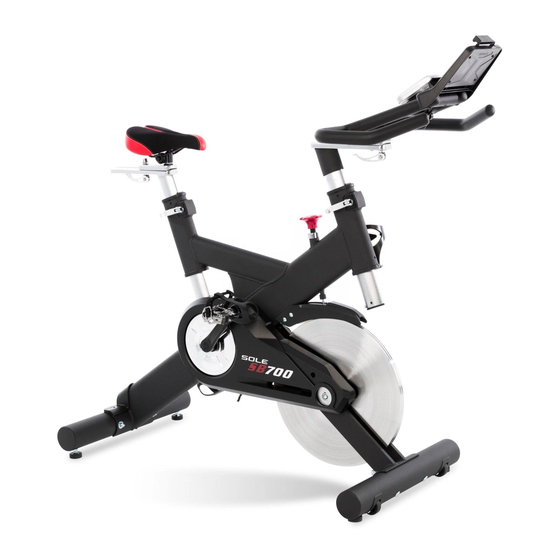

  • Page 1 OWNER’S MANUAL GROUP EXERCISE BIKE...

  • Page 2: Table Of Contents

    Table of Contents Important Safety Instructions……………………………………………………….…………3 Guidelines for Safe Operation…………………………………………………….…………..4 Hardware Assembly Pack……………………………………………………………………..5 Adjusting the Bike for a Proper Fit………………………………………………….………...10 Dual Function pedal……………………….………………………………..………….………11 Basic Operation / Maintenance Guidelines……………………………………….……..…..12 Parts list………………………………………………………………………………………….13 Exploded View Drawing..………………………………………………………………………16 SB702GS_1204(SL)B...

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING THIS EXERCISE EQUIPENT Use this equipment only for its intended use as described in this manual. Do not attempt to ride this bike at high pedal speeds until you have ridden the bike for some time and are comfortable riding at slower pedal speeds.

  • Page 4: Guidelines For Safe Operation

    GUIDELINES FOR SAFE OPERATION WARNING! AS THE OWNER OF THIS EXERCISE EQUIPMENT, YOU SHOULD INSIST THAT ALL USERS FOLLOW THE SAME GUIDELINES: YOU SHOULD MAKE THIS MANUAL AVAILABLE TO ALL USERS. Obtain a complete physical examination from your medical doctor and enlist a health/fitness professional’s aid in developing an exercise program suitable for your current health status.

  • Page 5: Hardware Assembly Pack

    Hardware Assembly Pack #49. 5/16" × 1.5T_ #48. 5/16" × 16 × 1T_ #82. 3/8" Split Washer (4pcs) Flat Washer (4pcs) Cap Nut (4pcs) #88. 5/16" × 5/8"_ #91. M5 × 10m/m_ #83. 3/8" × 23 × 1.5T_ Button Head Socket Bolt (4pcs) Phillips Head Screw (2pcs) Curved Washer(4pcs) #81.3/8"...
  • Page 6 STEP 1 Stabilizer Assembly • Install the front and rear stabilizers with four 3/8"×3-1/2" carriage bolts (81), four 3/8" curved washers(83) and four 3/8" cap nuts(82). The front and rear stabilizer are different. Be sure to assemble the stabilizer with the wheels onto the front of the bike.
  • Page 7 STEP 2 Rear Cover • Install the rear stabilizer cover with two M5 x 10mm screws (91).
  • Page 8 STEP 3 Handlebar and Drink Holder • Install the handlebars with four 5/16" x 15mm bolts (88), 5/16" split washers (49) and four 5/16” flat washers (48). Tighten the bolts securely. • Install the drink holder to the handlebars by loosening the thumb screw, clamp to the handlebars and re-tighten the thumb screw.

  • Page 9: Right Pedal

    STEP 4 Pedal Assembly • Install the Left (25L) and Right (25R) pedals to the crank arms. Please note that the Left pedal has a reverse threaded bolt and needs to be tightened in a counterclockwise direction. The pedals are identified by either an R or L stamped into the end of the bolt. Right Pedal Left Pedal...

  • Page 10: Adjusting The Bike For A Proper Fit

    ADJUSTING THE BIKE FOR A PROPER FIT Take some time to learn how to properly adjust the bike to your body; it will make your workouts more pleasant and a safer experience too. Riding the bike when it is incorrectly adjusted can result in discomfort and increase your risk of injury.

  • Page 11: Dual Function Pedal

    DUAL FUNCTION PEDAL ADJUSTING THE PEDAL STRAPS Place your feet in between the aluminum surface of the pedal and the nylon foot strap that wraps around it. If the opening is too narrow, depress the spring loaded clasp with one hand and pull on the nylon strap with the other to increase the opening area.

  • Page 12: Basic Operation / Maintenance Guidelines

    BASIC OPERATION Now that you have established a proper riding position, take a few minutes to ride the bike and determine that your position is comfortable. Start pedaling at a slow pace with your toes and knees pointed directly forward. Hold the handlebar lightly and in a position that allows your shoulders and upper body to relax.

  • Page 13: Parts List

    PARTS LIST Description Main Frame Front Stabilizer Rear Stabilizer Handlebar Post Seat Post Handlebar Sliding Seat Mount Sliding Handlebar Mount Brake Pad Bracket Brake Pad - Wool Felt Bushing Spring Brake Tension Knob M6 × 15mm_Phillips Head Screw 8 × 40m/m_Quick Release lever 8 ×...
  • Page 14 Description Crank Axle 5/16" × 1/2"_Button Head Socket Bolt 5/16" × 16 × 1T_Flat Washer 5/16" × 1.5T_Split Washer Transportation Wheel Rubber Foot 3/8"_Nut Stabilizer End Cap End Cap, Eye Tube Plastic Slide Insert, Eye Tube Bottom End Cap, Eye Tube Rear Stabilizer Cover Chain Cover O uter...
  • Page 15 Description Drink Bottle(Optional) 5/16" × 5/8"_Button Head Socket Bolt M5 × 10m/m_Socket Head Cap Screw Ø5 × 10m/m_Tapping Screw M5 × 10m/m_Phillips Head Screw M5_Speed Nut Clip M5 × 10m/m_Tapping Screw Spring Fixing Pin Safety Sleeve 5/16" × 1"_Button Head Socket Bolt Sleeve Bushing 3/8"...

  • Page 16: Exploded View Drawing

    Exploded View Drawing...
