: See installation section for wiring instructions.
NOTE
STEP: 1
SETTING THE CURRENT DAY AND
TIME
: Shut off power at the fuse box or circuit
WARNING
breaker before performing any wiring or installation
a. Press the SETUP button and CAL will begin to flash.
Press ENTER to set the Date.
b. Use +/- buttons to select the current year and press
ENTER. Continue to use the +/- buttons to set the
month, day, hour, and minute.
: Ensure that you set AM/PM when setting
NOTE
the hours. Date format displayed is – MM DD YY.
c. Continue to press the ENTER button to skip DST, Zone,
Sunup, and Sunset settings.
: Refer to Detailed Instructions for extra features
NOTE
for DST (Daylight Savings Time), Time Zone, SUNUP and
SUNSET.
Pre-Installation
HARDWARE INCLUDED
AA - Faceplates x2
BB - Wire Nut x5
CC - Screw x2
(White & Light Almond)
SAFETY INFORMATION
RISK OF ELECTRIC SHOCK:
… Shut off the power at the fuse box or circuit breaker
before installation
… Do not use in wet locations
… Use indoors only
WARNING
RISK OF ELECTRIC FIRE:
… Do not use to control appliances that contain heating
elements such as cooking appliances, heaters, and
irons
… Do not exceed electrical ratings
… Do not use to control receptacles
… Use only copper wire with this device
Detailed Installation Instructions
This timer has 3 different installation options. Please refer to the following descriptions for the installation instructions that apply to you.
… Single pole installation is for when you only have one switch that controls your light.
… 3-Way installation is for when you have two switches that control the same light. You will need to know if you are installing your timer on the Line or Load side of your 3-Way switch and follow those installation instructions
appropriately.
□ For a 3-Way installation, the Line side has the common (hot) terminal tied to 120VAC.
□ The switch on the Load side has the common (hot) terminal tied to the lamp/load the switch turns OFF and ON.
1
SINGLE POLE INSTALLATION
:
For 3-way timer control and operation for fixtures with
NOTE
mechanical ballast, install the timer in the "load side" wiring box.
Disconnect the power at the circuit breaker or fuse box, and remove the existing switch.
a. Connect the wires of the timer to the wall box as shown, using the wire nuts provided. See Figure 2.
□ Connect the hot/live wire from the line to the black wire from the timer.
□ Connect the hot/live wire from the load to the blue wire from the timer.
□ Connect the ground wire to the green wire from the timer.
□ Connect the neutral wire to the white wire from the timer. Often the neutral (white) wire can be found in the back of the wire box
connected with a wire nut. There may be several neutral wires bound together. Add the neutral to all neutral wires bound together
making sure the wire nut is tight.
□ Attach a wire nut to the red (traveler) wire from the back of the timer. This wire is not needed in the single pole installation.
b. Ensure that all wire nuts are secure. Tuck the wires into the wall box, leaving room for the timer.
c. Use the screws (CC) to mount the timer to the wall box, being careful not to crush any wires.
d. Reinstall your wall plate.
e. Turn the main power ON at the circuit breaker.
f. If the timer display does not turn on, disconnect the power at the circuit breaker or fuse box. Swap the black and blue wires on the timer. Remount
the timer and wall plate, then restore power at the fuse box or circuit breaker.
IP08292014

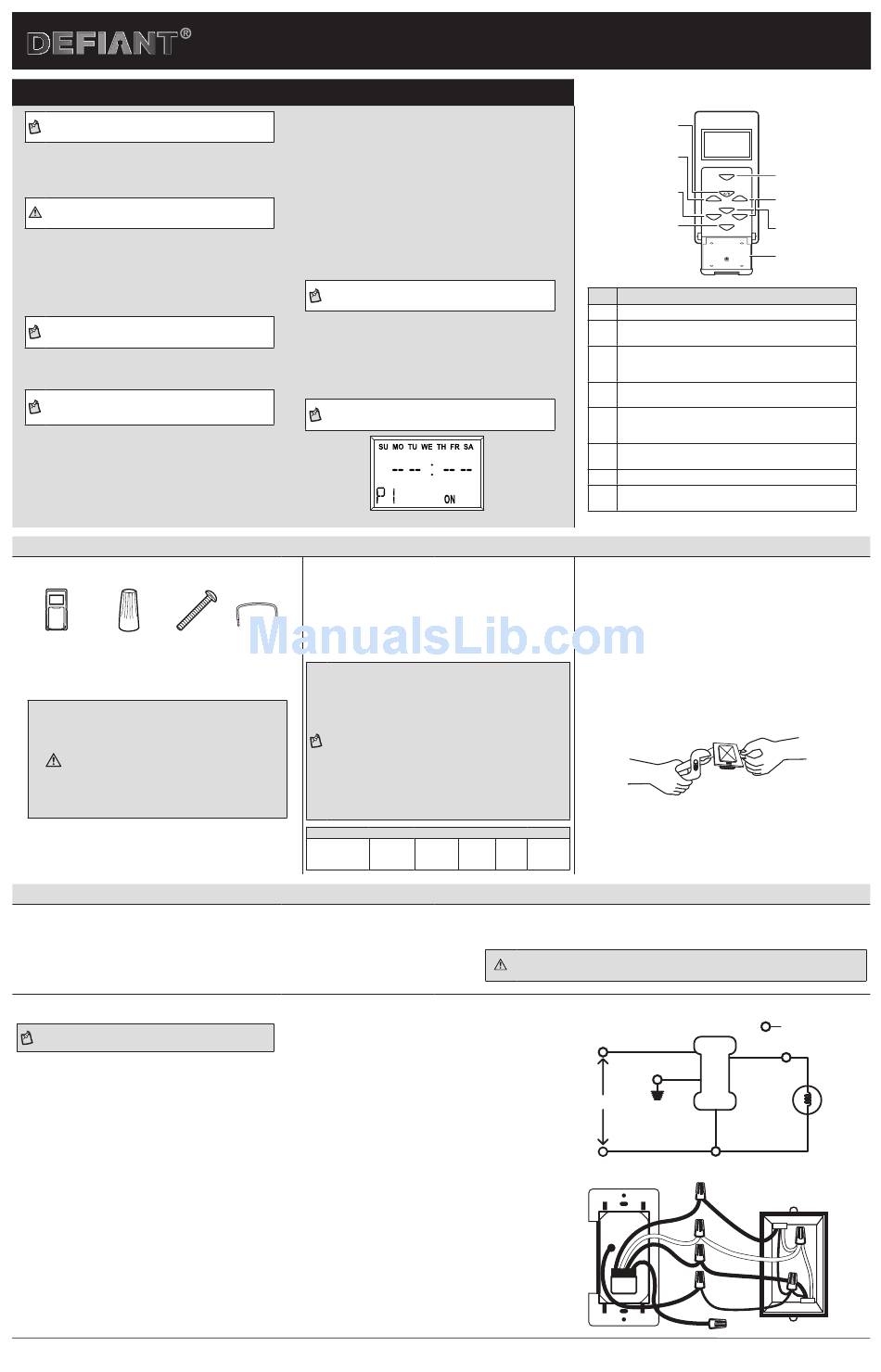

Use and Care Guide
DAYLIGHT ADJUSTING INDOOR DIGITAL TIMER
Quick Start Guide
STEP: 2
ON/OFF PROGRAMMING
a. Press the SETUP button twice and "P1 ON" will display. See
Figure 1.
b. Program ON: Use +/- buttons to select program number
and on and push ENTER button to set.
Select Day: Use +/- buttons to select the days and press
Enter to confirm.
: Press ENTER again to enter time setting from the
NOTE
screen with PRG and days flashing.
Select Time: Use the +/- buttons to scroll to the TIME option
and press ENTER. The hour will begin to flash. Continue to
use the +/- and ENTER buttons to set the hour and minute
ON times.
c. Program OFF: Repeat b steps to set off day and time.
: Push SETUP button to save and skip
NOTE
programming mode after saving.
This device complies with part 15 of the FCC and Industry Canada license-
exempt RSS standard(s). Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause
undesired operation.
FCC NOTE
The manufacturer is not responsible for any radio or TV interference caused
by unauthorized modifications to this equipment. Such modifications could
DD - Jumper
Cable x1
void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
□ Reorient or relocate the receiving antenna.
□ Increase the separation between the equipment and receiver.
□ Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help
120 VAC, 60 Hz
15A Resistive 15A Tungsten 6A Ballast
Figure 1
RATINGS
1800 VA
1 HP
Mechanical
Motor
Ballast
Shut off power at the fuse box or circuit breaker before performing any
WARNING:
wiring or installation
PRODUCT DESCRIPTION
A
B
AUTO
D
+
SETUP
ENTER
RESET
-
F
RND
Part Description
A
ON/OFF button: Turns the timer ON/OFF.
SETUP button: Press once to set the calendar/clock. Press twice
B
to set or change programming.
"+" and "-" buttons: Press to scroll through
C
menu options. Press and hold both + and - to switch Timer into
manual mode.
RESET button: Press and hold for three seconds to reset the
D
system.
AUTO button: Press once to activate the timer after programming
E
is complete. Press once to return to Auto mode when in Manual
mode or Random mode.
RND button: Press once to activate the
F
random feature.
G
ENTER button: Press to confirm indicated settings.
TIMER DOOR: Close after programming. Press to turn ON/OFF
H
(timer override).
CHANGING THE FACEPLATE
This device includes a light-almond faceplate. To switch faceplates, follow the steps
below.
a. Gently remove the white faceplate using a flathead screwdriver. Starting
at the top left corner, gently pry the faceplate loose, working around the
edge until it pops off.
b. Find the light-almond faceplate in the package. Place the new faceplate
into position and carefully push until it snaps into place.
PREPARING FOR MULTI-SWITCH INSTALLATIONS
When combining controls in a wall box, remove all the inner side sections prior to
making the electrical connections.
a. Use pliers to bend the side section up and down until it breaks off.
b. Repeat the process for each side section to be removed.
Figure A - Removing Side Sections Prior to Connection
Figure 2 - Typical Wiring Schematic for Single Pole Installation
Black
Timer
Green
Line
Groun d
White
White
BLACK
LINE
WHITE
NEUTRAL
BLUE
LOAD
GREEN
GROUND
RED
CAP TRAVELER
Please contact 1-866-308-3976 for further assistance.
Item #469-637
E
C
G
H
Wiring Nu t
Blue
Black
Load
White
