Defiant 49815 Use And Care Manual

Defiant 49815 Use And Care Manual

Indoor digital timer

Advertisement

Quick Links

Before You Begin
Product Features
□ Set one or more multiple ON/OFF settings for each day of the week, daily cycles, or weekday - weekend
cycles
□ Stores up to 4 individual programs
□ A Random feature which turns the lights off and on between 30 minutes before and after the programmed
time, giving the appearance that somebody is currently home
Pre-Installation Requirements
□ This timer will only operate with incandescent, halogen, or xenon bulbs. Do not use this timer with CFL or
LED bulbs.
□ This timer can only be installed in a single pole installation. Do not install on a 3-way switch.
Safety Information
RISK OF ELECTRIC SHOCK:
 Shut off the power at the fuse box or circuit breaker
before installation
 Do not use in wet locations
 Use indoors only
RISK OF ELECTRIC FIRE:
 Do not use to control appliances that contain heating
elements such as cooking appliances, heaters, and irons
WARNING
 Do not exceed electrical ratings
 Do not use to control receptacles
 Use only copper wire with this device
Not for use with CFL or fl uorescent bulbs. Use with incandescent, xenon, or halogen bulbs.
The safety ground must be connected for proper operation.
If you are unsure or unclear about this installation, contact a qualifi ed licensed electrician.
This timer is equipped with memory back up that will protect the settings for up to 60 minutes. You never have to
replace batteries. The internal backup requires about 12 hours to fully charge.
Installation Terms and Options
BASIC WIRING TERMINOLOGY
To better familiarize yourself with the wiring terminology and concepts referenced in this manual, please review the following information before you begin wiring this timer to your switch box.
If at any time during the wiring process you become uncertain, please contact a certifi ed electrician.
□ Line: This is the 120 volt feed wire (line in).
□ Load: This is the wire that controls the fi xture (load out).
□ Single-Pole Switch: A single-pole switch only controls a fi xture from a single location. A typical example of where you would fi nd a single-pole switch is your bedroom or bathroom light
switch.
Programming Instructional Video
Single Pole Installation
1
INSTALLING THE TIMER
a. Turn OFF the main power at the circuit breaker or fuse box.
b. Remove the existing switch.
c. Connect the wires of the timer to the wall box as shown in Figure 1, using the wire nuts provided.
□ Connect the line wire to the black wire from the timer.
□ Connect the load wire to the blue wire from the timer.
□ Connect the ground wire to the green wire from the timer. Timer will not operate without a ground.
d. Ensure that all wire nuts are secure, and tuck the wires into the wall box, leaving room for the timer.
e. Using the screws provided, mount the timer to the wall box, being careful not to crush any wires.
f. Turn the main power ON at the circuit breaker or fuse box.
g. Place power switch (1) in ON position.
Initial Setup

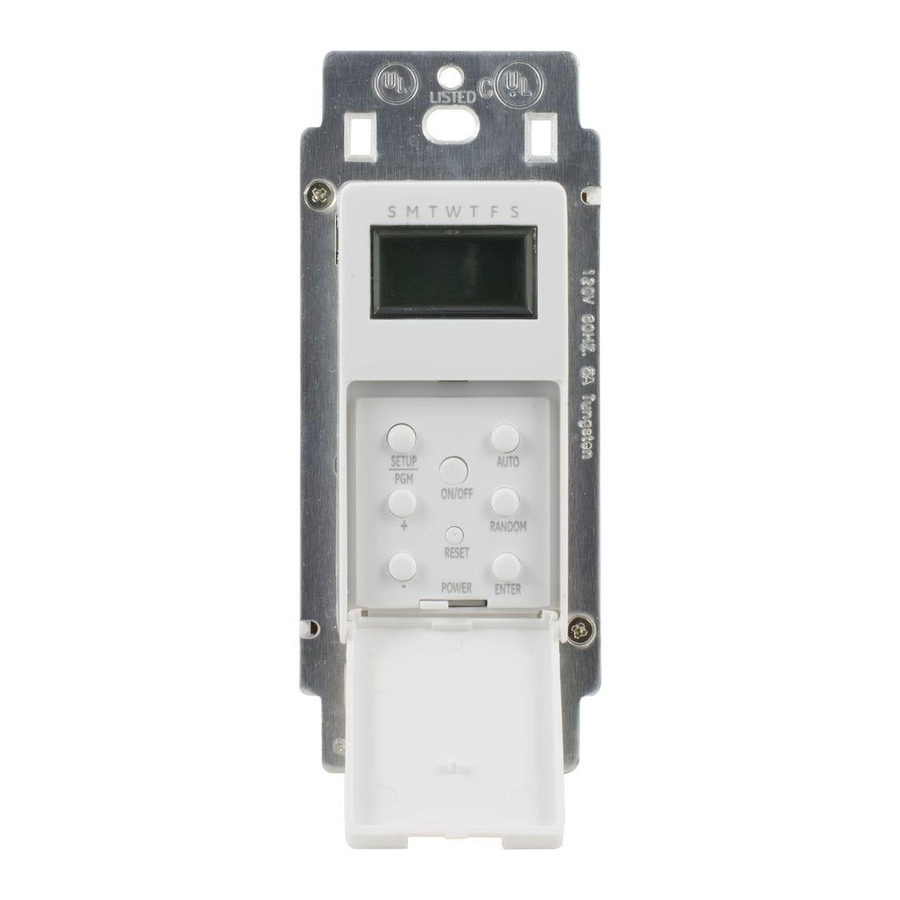

PRODUCT DESCRIPTION
Part Description
POWER switch: Slide the switch to the left to disrupt power to the timer/ fi xture. Slide switch
1
to the right to restore power to the timer/ fi xture.
2
SETUP/PGM button: Press to enter/exit programming mode.
3
"+" button: Press to scroll upward.
4
"–" button: Press to scroll downward.
5
ON/OFF button: Turns the timer ON/OFF.
6
RESET button: Press and hold for three seconds to reset the system.
7
AUTO button: Press once to activate auto mode.
8
RANDOM button: Press once to activate the random feature.
9
ENTER button: Press to confi rm indicated settings.
IP08292014
Use and Care Guide
INDOOR DIGITAL TIMER
To view an instructional video on how to program this product:
1. Go to www.homedepot.com and enter either the Item or Model number found in the top right
corner of this instruction sheet in the search fi eld.
2. Click on your product from the list of search results and click on the video link in the Product
Overview section.
CONTINUE TO PAGE 2 TO COMPLETE SETUP AND PROGRAMMING
Product Specifi cations
□ Single pole, no neutral wire is needed
□ Replaces a standard wall switch or older spring wound timers
RATINGS
120 VAC,
5A/ 600W
5A/ 600W
60 Hz
Tungsten
Resistive
Hardware Included
AA - Wire Nut x3
BB - Screw x2
Suggested Tools
Phillips screwdriver
Wire stripper
Black
Blue
Green
Figure 1
S
M T W T F
2
3
SETUP
PGM
ON/OFF
6
+
4
RESET
-
POWER
OFF ON
Item #470-906
Model #49815
UPC #043180498151
o
40
C Max
Temp
Line
Load
Ground
S
5
7
AUTO
8
RANDOM
9
1
ENTER
HOMEDEPOT.com
Please contact 1-866-308-3976 for further assistance.
