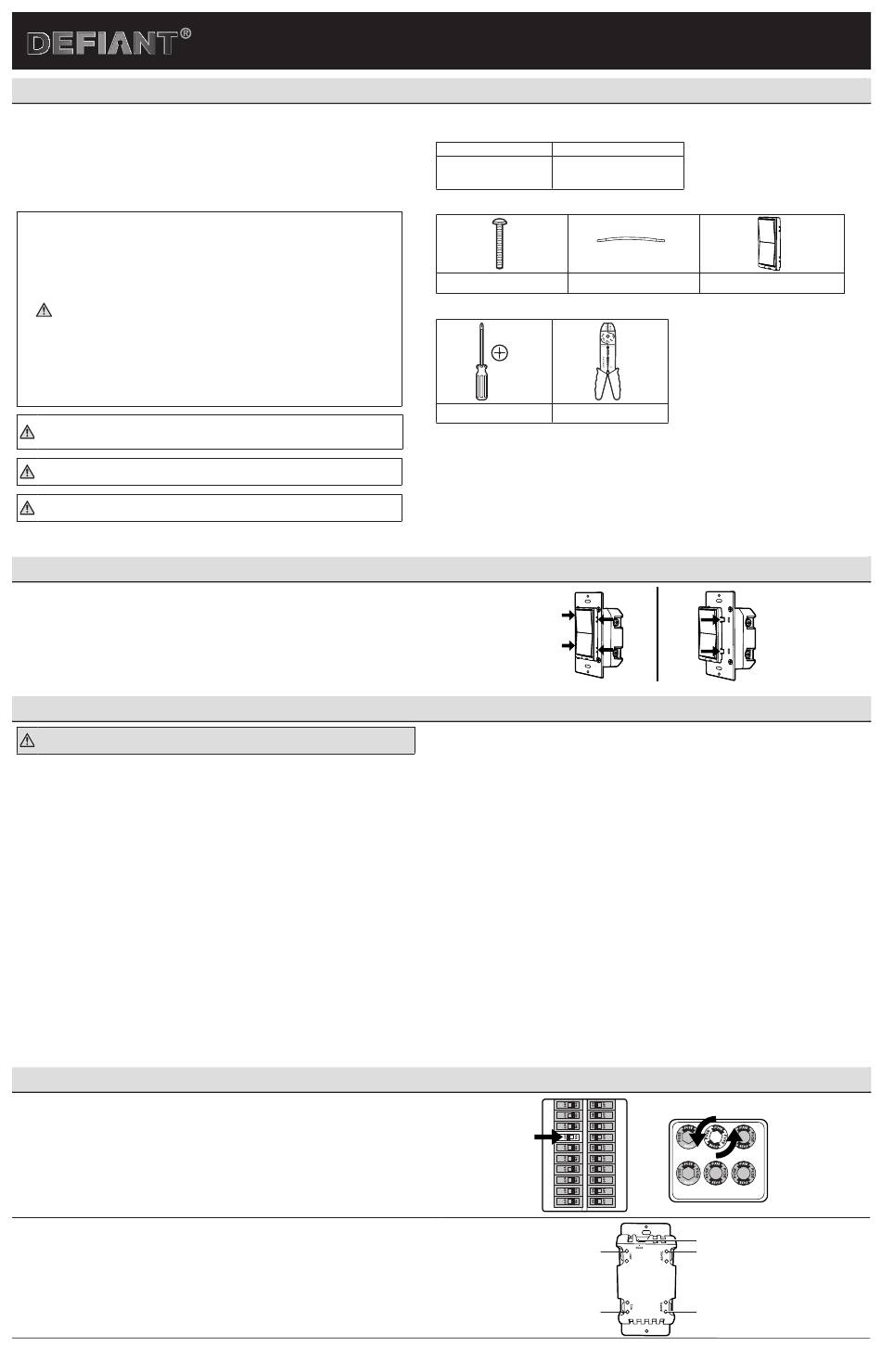

Defiant 24780 Use And Care Manual

Before You Begin
Product Information
□ For use only with permanently installed fixtures
□ For use with single pole or 3-way wiring configurations
□ Compatible with all incandescent and CFL/LED bulbs
□ Screw Terminal Installation - Requires wiring connections for Line (Hot), Load, Neutral,
Ground, and Traveler (Traveler is only used in 3-way configurations)
Safety Information
RISK OF ELECTRIC SHOCK:
… Shut off the power at the fuse box or circuit breaker before installation
… All wiring connections must be made with the power OFF to avoid personal injury and/or
damage to the switch
… Do not use in wet locations
… Use indoors only
RISK OF ELECTRIC FIRE:
WARNING
Exercise extreme caution when using this device to control appliances. Operation of these
devices may automatically be powered on due to timed event programming. Depending
upon the appliance, these unattended or unintentional operations could possibly result in
a hazardous condition. For these reasons, do not use this device to control electric heaters
or any other appliances which may present a hazardous condition due to unattended or
unintentional or automatic power on control.
… Do not use to control appliances that contain heating elements (cooking appliances,
heaters, irons, etc.).
… Do not exceed electrical ratings.
… Use copper wire only with this device.
… Do not use to control receptacles.
WARNING:
This device is intended for installation in accordance with the National Electric Code and
local regulations in the United States, or the Canadian Electrical Code and local regulations in Canada.
if you are unsure or uncomfortable about performing this installation, consult a qualified electrician.
WARNING:
Do not use with medical or life support equipment. Never use this device to supply power
to, or control the On/Off status of medical and/or life support equipment.
WARNING:
Do not disassemble this product. There are no serviceable parts inside.
Pre-Installation
CHANGING THE FACEPLATE
This device includes a light-almond faceplate. To switch faceplates, follow the steps below.
a. Gently remove the white faceplate by squeezing the sides of the white faceplate and pulling
away from the timer. Starting at the top and working your way downwards until it pops off.
b. Find the light-almond faceplate in the package. Place the new faceplate into position and
carefully push until it snaps into place.
Installation Terms and Options
WARNING:
Shut off power at the fuse box or circuit breaker before performing any wiring or installation.
BASIC WIRING TERMINOLOGY
To better familiarize yourself with the wiring terminology and concepts referenced in this manual, please review the following information before you begin wiring this timer to your switch outlet.
If at any time during the wiring process you become uncertain, please contact a certified electrician.
□ Line: This is the 120V AC (hot) from breaker box.
□ Load: This is the 120V AC wire that controls the fixture (load out) which carries power to the light.
□ Neutral: 120V AC return connection.
□ Ground: 120V AC safety ground.
□ Traveler-1 and Traveler-2: Wires running between two 3-way switches for installations where a light is controlled by two switches.
INSTALLATION OPTIONS
To begin the installation process, you must first know what type of installation is needed. Below are the 3 different installation options. Please refer to the following descriptions for the
installation instructions that apply to you.
1. Single-Pole Installation (Complete steps 1-3 and 6 in the Installation section):
This installation option should be used when a switch only controls one light from a single location. A typical example of where you would find a single-pole switch is your bedroom or
bathroom light switch.
2. 3-Way Installation, Load Side (Complete steps 1-2, 4, and 6 in the Installation section):
This installation option replaces a switch which controls a light that can be controlled from two locations and in most installations has the common (hot) terminal tied to the lamp/load the
switch turns OFF and ON. Typically these types of installations are in stairwells, hallways, and large rooms with multiple accesses points.
3. 3-Way Installation, Line Side (Complete steps 1-2, 5, and 6 in the Installation section):
This installation option replaces a switch which controls a light that can be controlled from two locations and in most installations has the common (hot) terminal tied to 120VAC. Typically
these types of installations are in stairwells, hallways, and large rooms with multiple accesses points.
Installation
1
REMOVING THE OLD SWITCH
a. Shut off power to the circuit at the circuit breaker or fuse box.
b. Remove the existing wall plate.
c. Carefully remove the existing switch from the switch box. DO NOT disconnect the wires.
2
IDENTIFYING THE TERMINALS ON THE APP TIMER
a. Identify the terminals on the new switch as this diagram shows:
□ 1 – Ground (Green/Bare)
□ 2 – Load (Black)
□ 3 – Line (Black)
b. Disconnect the wires from the existing switch. Label the wires (ground, load, line, traveler,
neutral).
IP07232014
□ 4 – Traveler (Red/Other)
□ 5 – Neutral (White)
Use and Care Guide

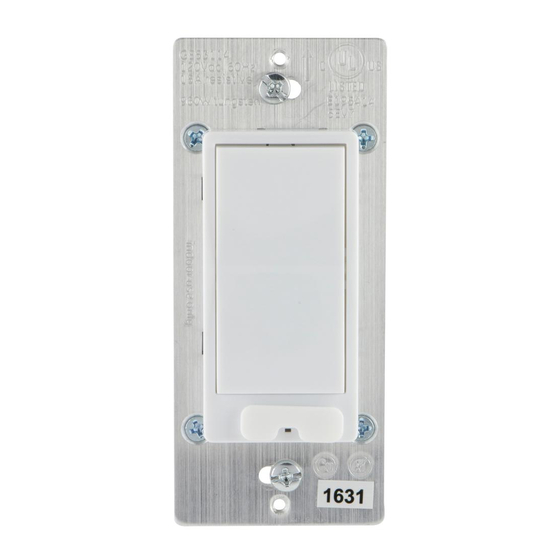

In-Wall App Timer
Product Specifications
□ For indoor use only.
POWER
120VAC, 60Hz
Hardware Included
AA - Screw x2
Suggested Tools
Phillips screwdriver
Warranty
The manufacturer warrants this product to be free from manufacturing defects for a period of one year
from the original date of consumer purchase. This warranty is limited to the repair or replacement of this
product only and does not extend to consequential or incidental damage to other products that may be used
with this product. This warranty is in lieu of all other warranties, expressed or implied. Some states do not
allow limitations on how long an implied warranty lasts or permit the exclusion or limitation of incidental
or consequential damage, so the above limitations may not apply to you. This warranty gives you specific
rights, and you may also have other rights which vary from state to state.
Contact Home Depot customer service at 1-866-308-3976 or visit www.homedepot.com for more information.
MAX LOADS
1800W (15A) Resistive;
960W (8A) Tungsten
1/4 HP
BB - Jumper Cable x2 CC - White & Light Almond Faceplate
Wire strippers
OR
1
2 4
5
3
Please contact 1-866-308-3976 for further assistance.
Item #1001-470-469
Model #24780
UPC #030878247801
