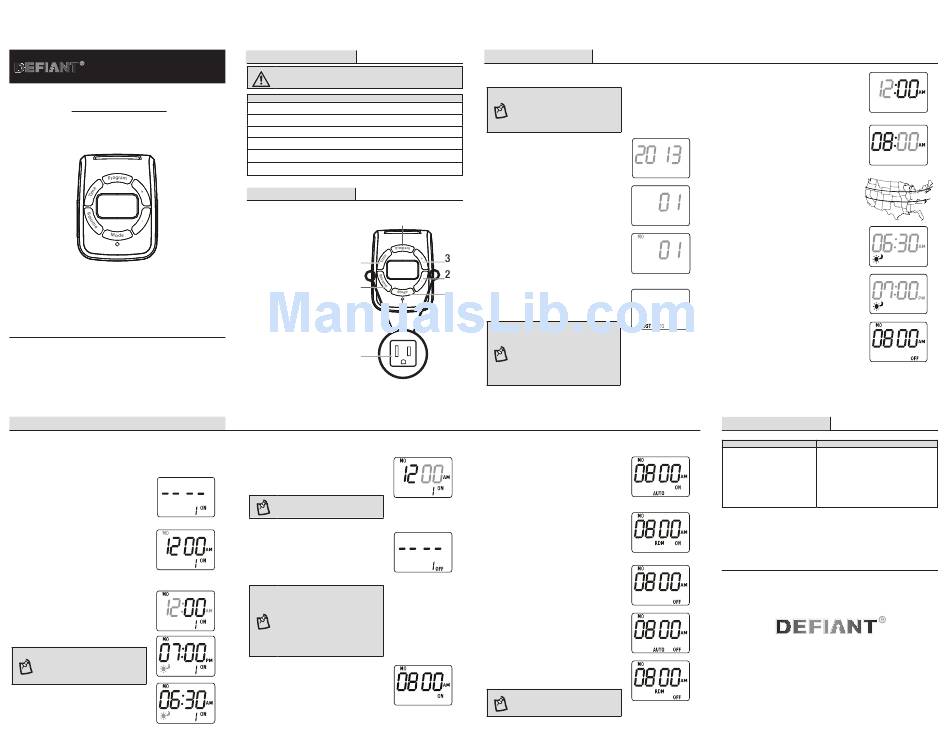

Defiant TM-087 Use And Care Manual

http://waterheatertimer.org/plug-in-timers.html#TM-087
item #1000-013-488
Use and Care GUide
indoor diGital timer
Questions, problems, missing parts? Before returning to the store,
call Defiant Customer Service
8 a.m. - 6 p.m., EST, Monday - Friday
1-866-308-3976
HOMEDEPOT.COM
THANK YOU
We appreciate the trust and confidence you have placed in
Defiant through the purchase of this indoor digital timer. Visit
us online to see our full line of products available for your home
improvement needs. Thank you for choosing Defiant!
operating instructions (continued)
2
Programming the ON and OFF times
… … Press the Program button (4) to enter
programming mode.
Press the Time button (5) to begin setting
… …
the program ON time (the time that you
want the timer to control the device(s)
that are plugged into the unit).
… … Press the "+" and "-" buttons (2 & 3) to
set the days for the timer to control the
device(s) plugged into the unit:
□ Every day and individual days
□ Weekdays
□ Weekends
Press the Time button (5). Press the "+"
… …
or "-" buttons (2 & 3) to set the hours you
wish the timer to control the device(s)
plugged into the unit:
□ 12-Hour Clock AM/PM
□ Sunrise/Sunset
:
note If you select Sunrise/Sunset
as the programmed ON time, press
the Program button (4) to continue
programming.
safety information
:
WarninG For indoor use only.
ratinGs
125 VAC, 60 Hz
15 A, 1875W General Use/Resistive
8 A, 1000 W Tungsten
500 VA Electronic Ballast
120 VAC, 60Hz, 8.3 A Standard Ballast
1/2 HP Motor Load
Product description
1. Mode: Press to select the
4
desired working mode.
2. "-": Press to scroll down or
reduce the time displayed.
3. "+": Press to scroll up
5
or increase the time
displayed.
4. Program: Press to enter
programming mode, or to 6
review programs that have
been input.
5. Time: Press to set the
clock.
7
6. Resume: Press to erase the
current program.
7. Reset: Press to reset all
functions.
8
8. Outlets: Plug the lights or
devices to be controlled by
the timer into one of the
outlets.
… … Press the Time button (5). Press the "+"
and "-" buttons (2 & 3) to set the minute
you wish the timer to control the device(s)
plugged into the unit.
:
note Pressing the Resume button
(6) will cancel the setting.
Press the Program button (4) to begin
… …
setting the program OFF time (the time
that you want the timer to stop controlling
the device(s) plugged into the unit).
Follow the same procedure given for
setting the program ON time.
:
note You can program seven
different ON and OFF times for
this timer. Once finished, press the
Program button (4) to return the
timer to standby mode. If no button
is pushed for 30 seconds, the timer
will automatically return to standby
mode.
Press the Mode button (1) to select the
… …
desired timer function:
□ ON - The timer is in continuous
ON mode.
operating instructions
1
Setting the clock
:
note
Before initial use, plug
the timer in for at least 1 hour to
charge the internal battery. After the
screen displays, the unit is ready for
programming.
Press the Time button (5). Press the
… …
"+" and "-" buttons (2 & 3) to set the
current year.
… … Press the Time button (5). Press the "+"
and "-" buttons (2 & 3) to set the current
month.
… … Press the Time button (5). Press the
"+" and "-" buttons (2 & 3) to set the
current date.
1
… … Press the Time button (5). Press the "+"
and "-" buttons (2 & 3) to set the daylight
savings time (DST) function to AUTO mode
or OFF mode.
:
note When DST is set to AUTO,
the programmed time will increase
1 hour on the second Sunday in
March, at 02:00 AM every year. The
programmed time will be reduced
by 1 hour on the first Sunday in
November, at 02:00 AM every year.
□ ON AUTO - The timer will turn
ON and remain ON until the next
programmed OFF time.
□ ON RDM - The timer will turn ON and
remain ON until the next programmed
RDM event. When RDM is set to ON,
the timer will turn ON/OFF at the
programmed times ± 30 minutes.
□ OFF - The timer will turn OFF and
stay OFF until another mode is
selected.
□ OFF AUTO - The timer will turn
OFF and remain OFF until the next
scheduled ON time.
□ OFF RDM - The timer will turn
OFF and remain OFF until the next
programmed RDM event.
:
note To review the programs that
have been input, press the Program
button (4).
… … Press the Time button (5). Press the
"+" and "-" buttons (2 & 3) to set the
current hour.
… … Press the Time button (5). Press the "+"
and "-" buttons (2 & 3) to set the current
minute.
Press the Time button (5). Press the
… …
"+" and "-" buttons (2 & 3) to adjust
the Astronomic function: North, Central,
or South.
… … Press the Time button (5). Press the "+"
and "-" buttons (2 & 3) to adjust the
sunrise time; the setting range is ± 2 hrs.
Press the Resume button (6) if you want
to keep the original sunrise setting.
… … Press the Time button (5). Press the "+"
and "-" buttons (2 & 3) to adjust the
sunset time; the setting range is ± 2 hrs.
Press the Resume button (6) if you want
to keep the original sunset setting.
Press the Time button (5) once more to
… …
finish. The timer will go back to standby
mode.
troubleshooting
Problem solution
The devices do not turn OFF □ Check to make sure the timer is
and ON at the desired time. programmed correctly or insert an
object, such as toothpick or pencil,
into the reset hole and reprogram.
□ Make sure the light or device is on.
