Item #1000-003-074

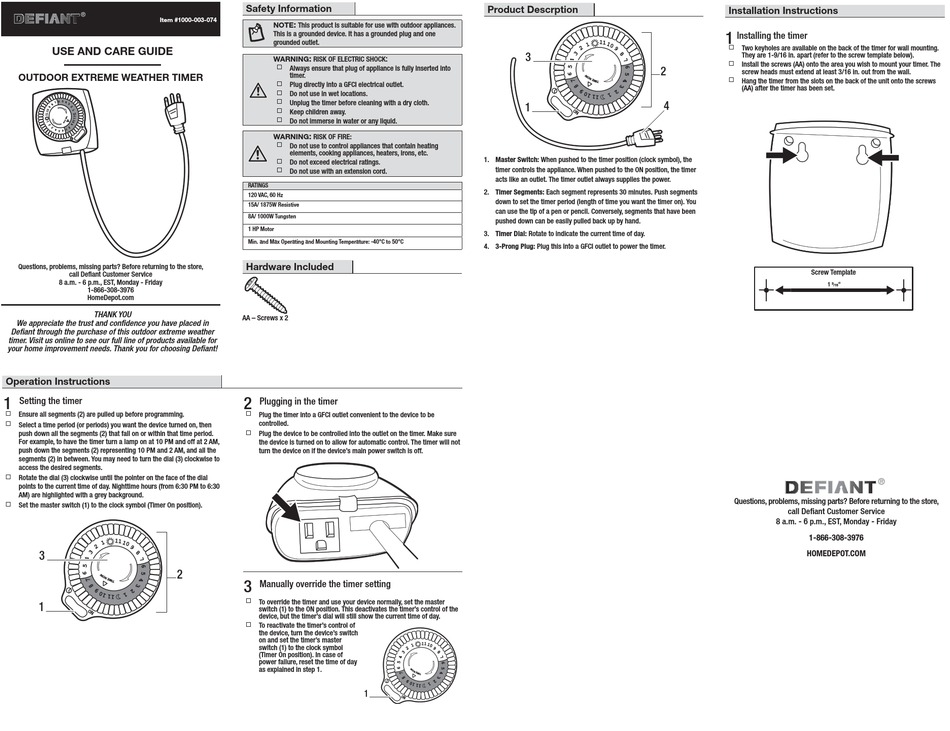

USE AND CARE GUIDE
OUTDOOR EXTREME WEATHER TIMER
Questions, problems, missing parts? Before returning to the store,
call Defi ant Customer Service
8 a.m. - 6 p.m., EST, Monday - Friday
1-866-308-3976
HomeDepot.com
THANK YOU
We appreciate the trust and confi dence you have placed in
Defi ant through the purchase of this outdoor extreme weather
timer. Visit us online to see our full line of products available for
your home improvement needs. Thank you for choosing Defi ant!
Operation Instructions
1
Setting the timer
Ensure all segments (2) are pulled up before programming.
Select a time period (or periods) you want the device turned on, then
push down all the segments (2) that fall on or within that time period.
For example, to have the timer turn a lamp on at 10 PM and off at 2 AM,
push down the segments (2) representing 10 PM and 2 AM, and all the
segments (2) in between. You may need to turn the dial (3) clockwise to
access the desired segments.
Rotate the dial (3) clockwise until the pointer on the face of the dial
points to the current time of day. Nighttime hours (from 6:30 PM to 6:30
AM) are highlighted with a grey background.
Set the master switch (1) to the clock symbol (Timer On position).
3
2
1
Safety Information
:
NOTE
This product is suitable for use with outdoor appliances.
This is a grounded device. It has a grounded plug and one
grounded outlet.
:
:
WARNING
RISK OF ELECTRIC SHOCK
Always ensure that plug of appliance is fully inserted into
timer.
Plug directly into a GFCI electrical outlet.
Do not use in wet locations.
Unplug the timer before cleaning with a dry cloth.
Keep children away.
Do not immerse in water or any liquid.
:
WARNING
RISK OF FIRE:
Do not use to control appliances that contain heating
elements, cooking appliances, heaters, irons, etc.
Do not exceed electrical ratings.
Do not use with an extension cord.
RATINGS
120 VAC, 60 Hz
15A/ 1875W Resistive
8A/ 1000W Tungsten
1 HP Motor
Min. and Max Operating and Mounting Temperature: -40°C to 50°C
Hardware Included
AA – Screws x 2
2
Plugging in the timer
Plug the timer into a GFCI outlet convenient to the device to be
controlled.
Plug the device to be controlled into the outlet on the timer. Make sure
the device is turned on to allow for automatic control. The timer will not
turn the device on if the device's main power switch is off.
3
Manually override the timer setting
To override the timer and use your device normally, set the master
switch (1) to the ON position. This deactivates the timer's control of the
device, but the timer's dial will still show the current time of day.
To reactivate the timer's control of
the device, turn the device's switch
on and set the timer's master
switch (1) to the clock symbol
(Timer On position). In case of
power failure, reset the time of day
as explained in step 1.
1
Product Descrption
3
2
1
1. Master Switch: When pushed to the timer position (clock symbol), the
timer controls the appliance. When pushed to the ON position, the timer
acts like an outlet. The timer outlet always supplies the power.
2. Timer Segments: Each segment represents 30 minutes. Push segments
down to set the timer period (length of time you want the timer on). You
can use the tip of a pen or pencil. Conversely, segments that have been
pushed down can be easily pulled back up by hand.
3. Timer Dial: Rotate to indicate the current time of day.
4. 3-Prong Plug: Plug this into a GFCI outlet to power the timer.
Installation Instructions
1
Installing the timer
Two keyholes are available on the back of the timer for wall mounting.
They are 1-9/16 in. apart (refer to the screw template below).
Install the screws (AA) onto the area you wish to mount your timer. The
screw heads must extend at least 3/16 in. out from the wall.
Hang the timer from the slots on the back of the unit onto the screws
(AA) after the timer has been set.
4
Screw Template
1
9 /16
"
Questions, problems, missing parts? Before returning to the store,
call Defi ant Customer Service
8 a.m. - 6 p.m., EST, Monday - Friday
1-866-308-3976
HOMEDEPOT.COM
