Defiant 31072 Use And Care Manual

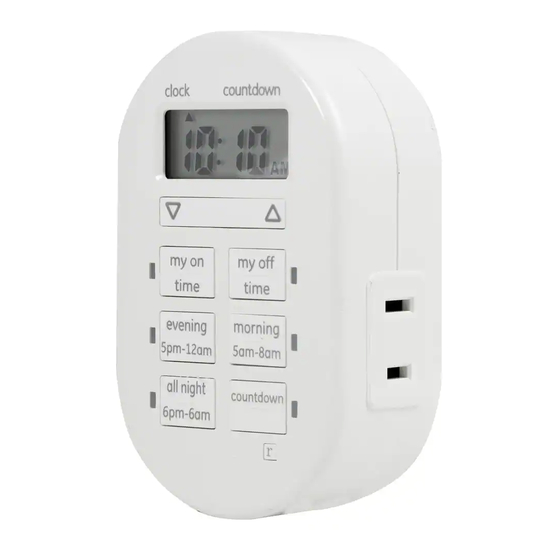

PRODUCT DESCRIPTION

1 Timer
2 Receptacle
3 LCD display
4 Down arrow button – Used to scroll through timer settings.
5 Up arrow button – Used to scroll through timer settings.
6 My On Time button – Used to create a custom ON time for your timer. The factory default setting is 6:00 pm.
7 My Off Time button – Used to create a custom OFF time for your timer. The factory default setting is 10:00 pm.
8 Evening 5 pm-12 am button – Pre-set time for your timer. Timer turns on at 5:00 pm and off at 12:00 am.
9 Morning 5 am-8 am button – Pre-set time for your timer. Timer turns on at 5:00 am and off at 8:00 am.
10 All Night 6 pm – 6 am button – Pre-set time for your timer. Timer turns on at 6:00 pm and off at 6:00 am.
Countdown button – Used to immediately turn the timer on and then off after a determined timeframe from
11
1 minute to 24 hours.
12 Reset button – Press to reset the timer to factory default settings.

Operation Instructions

INITIAL SETUP – SETTING THE
1
TIME
□ If no numbers are visible on-screen, plug
the timer into an outlet and let the timer
charge for 1 hour. Once charged, press
the Reset button (12) in the lower right
corner using a toothpick or pencil.
□ Use the Up (5) and Down (4) arrows to set
the current time, taking note of the AM
and PM on the display (3).
4
CHOOSING A CUSTOM ON/OFF
2
TIME
□ Press the My On Time button (6) and
then use the Up (5) and Down (4) arrow
buttons to set the time you want the
timer to turn On. The blue light next to My
On Time (6) should turn on, indicating that
the On time is set and activated.
□ Press the My Off Time button (7) and
then use the Up (5) and Down (4) arrow
buttons to set the time you want the
timer to turn Off. The blue light next to
My Off Time (7) should turn on, indicating
that the Off time is set and activated.
3
NOTE: If you set the My On Time earlier
than the current time, the timer does
5
not turn on until the next day at the time
scheduled. Use the Countdown feature to
turn on the timer if needed immediately.
12
4
6
Use and Care Guide
Indoor Easy Set Plug-In Timer
1
4
6
8
10
3

USING A PRE-SET ON/OFF TIME

There are three pre-programmed times on this
timer that run individually or simultaneously:
□ Press the Evening button (8) if you want
the timer to turn on at 5:00 pm and off at
12:00 am.
□ Press the Morning button (9) if you want
the timer to turn on at 5:00 am and off at
8:00 am.
□ Press the All Night button (10) if you want
the timer to turn on at 6:00 pm and off at
6:00 am.
Ensure that the blue LED indicator light is
illuminated next to the pre-programmed time
you have chosen. This indicates that the timer is
active and will function properly at your chosen
On/Off times.
5
8
7
10
Please contact 1-866-308-3976 for further assistance.
Item #1001-549-999
Model #31072
UPC #00030878310727
3
5
7
2
9
11
12
9
HOMEDEPOT.com
