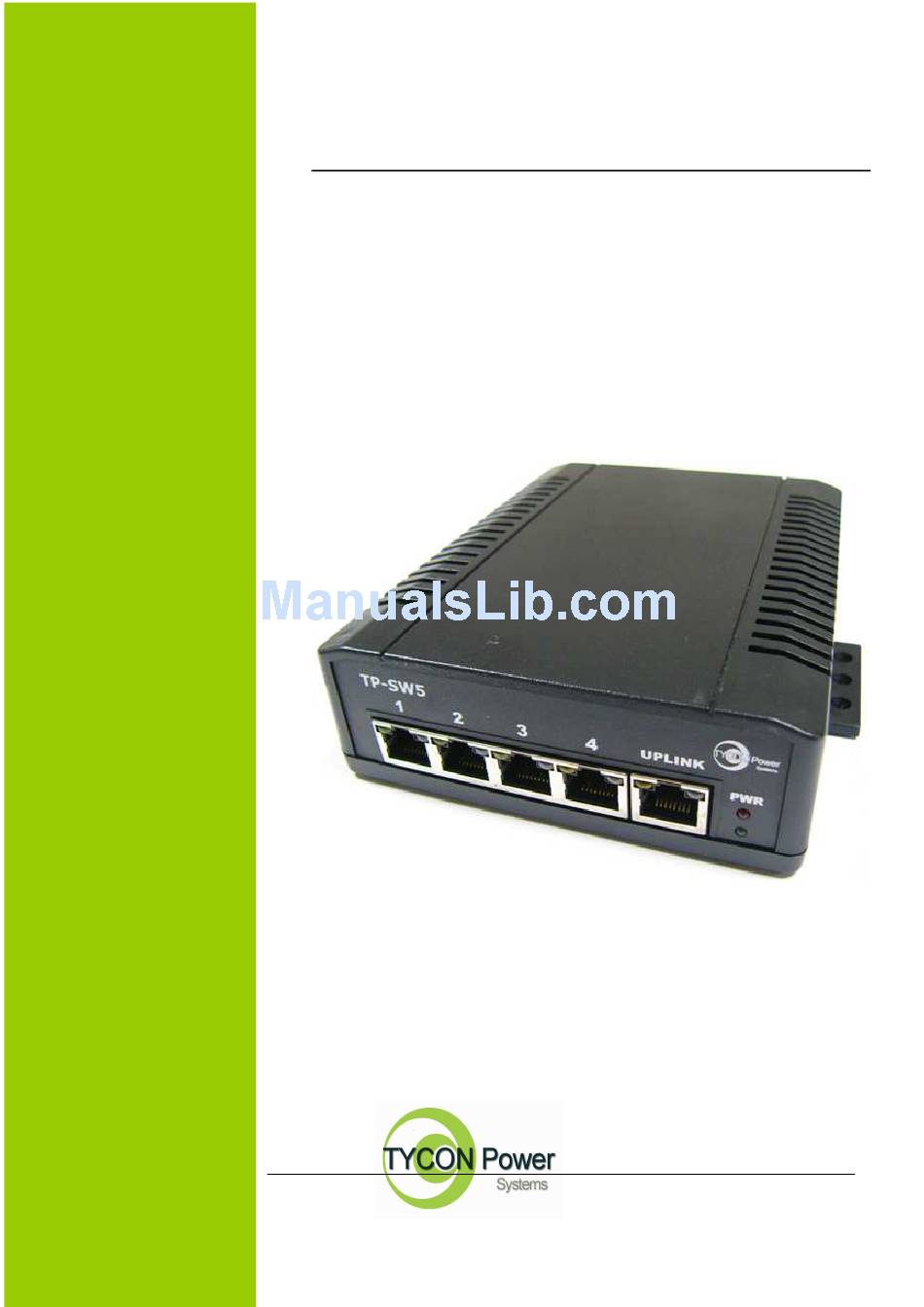

- Page 1 TYCON TP-SW5G(-NC) 5 port PoE Endspan (Switch) (Extend Ethernet and PoE) TYCON POWER SYSTEMS...
-
Page 2: Table Of Contents
User’s Manual TYCON TP-SW5G(-NC) Series 1. General Information.............. 2. Hardware Description............LED Indicators..................Power Wiring ..................Ethernet Port Wiring................PD Port Wiring..................Network Application……………………………………......3. Model Information............4. Technical Specification............TYCON POWER SYSTEMS... -
Page 3: General Information
PoE switch is very easy and you can start to use the product as soon as you are powered up. 2. Hardware Description *LED Indicator There are 12 LEDs on the PoE switch to indicate the status of power and signal. The following section describes the functions of each LED indicator. Front panel detail TYCON POWER SYSTEMS... - Page 4 LED ON when power input (DC IN on rear panel or Port 5 on front panel) has valid power supplied. The indicator is only used on TP-SW5G-NC, LED ON when the following warning condition happens. *Power input under voltage (Vin<10V) *Power input over voltage (Vin>59V)
-
Page 5: Power Wiring
No power is detected on this port. *Power wiring The PoE switch family includes 3 models, be used for 3 different ranges of input voltage: full range voltage (12 to 57VDC) (P/N: TP-SW5G-NC) 24VDC typical (12 to 36VDC) (P/N: TP-SW5G24) - Page 6 The input voltage must be in the range of 50 to 57VDC if running for 802.3at operation. If the TP-SW5G is not powered with the above designated input voltage, it will only function as an Ethernet switch without PoE output. TYCON POWER SYSTEMS...
- Page 7 Higher voltage 40-57VDC 42.5-57VDC output (REAR or Port5) You can use the TP-SW5G(NC) series with our adaptor products as detailed below: (OPTION) PSHP-18 PSHP-24 PSHP-48 Maximum output 18VDC/7.5A 24VDC/6.25A 48VDC/3.125A TP-SW5G-NC TP-SW5G-NC TP-SW5G-NC Related model TP-SW5G24 TP-SW5G24 TP-SW5G TYCON POWER SYSTEMS...
-
Page 8: Ethernet Port Wiring
Straight-through Cabling Pin 1 Pin 1 Pin 2 Pin 2 Pin 3 Pin 3 Pin 6 Pin 6 Pin 4 Pin 4 Pin 5 Pin 5 Pin 7 Pin 7 Pin 8 Pin 8 TYCON POWER SYSTEMS... - Page 9 If a port LED is off, go back and check for connectivity problems between that port and the network device connected. The maximum cable length for 10/100/1000BaseT with Cat 5 twisted pair cables is typically 100m (328 ft.). TYCON POWER SYSTEMS...
-
Page 10: Pd Port Wiring
PD. The yellow PoE LED will light up when the cable is correctly connected. Refer to the LED Indicator section for descriptions of each LED indicator. If a port LED is off, go back and check for connectivity problems between that port and the network device connected. TYCON POWER SYSTEMS... -
Page 11: Network Application
IEEE 802.3af/at standard in the network. The PoE Switch can be installed in a more appropriate position for better performance to extend Ethernet to 200 meters. The following figure is an example of a network application for the PoE Switch. TYCON POWER SYSTEMS... -
Page 12: Model Information
(Port 5) voltage 12-57VDC TP-SW5G-NC 12-57VDC 42.5-57VDC (non-regulated) 56VDC TP-SW5G24 12-36VDC 42.5-57VDC (regulated) 40-57VDC TP-SW5G 40-57VDC 42.5-57VDC (non-regulated) AC/DC Adapter (Option) PSHP-18 PSHP-24 PSHP-48 Maximum output 18VDC/7.5A 24VDC/6.25A 48VDC/3.125A TP-SW5G-NC TP-SW5G-NC TP-SW5G-NC Related model TP-SW5G24 TP-SW5G24 TP-SW5G TYCON POWER SYSTEMS... -
Page 13: Technical Specification
Maximum PoE power Port 1-4: IEEE802.3af – 16.8W IEEE802.3at – 35W Current limited – 2A Port 5: 90W (802.3at 2 event classification) TP disconnect mode DC disconnect PoE auto detection IEEE802.3af & IEEE802.3at (2 event classification signaling) TYCON POWER SYSTEMS... - Page 14 0.104A 0.170A 0.104A 0.061A 0.073A 0.061A 0.056A 0.061A 0.056A Power efficiency 85% at full load (@48V typical) Operating temperature -20℃~ +75℃ Operation humidity 90% relative humidity, non-condensing Storage temperature -55℃~+105℃ Dimension 40mm(H)x116mm(W)x159mm(D) available for DIN RAIL Mounted TYCON POWER SYSTEMS...
