Summary of Contents for Tycon Power Systems TP-SW5G

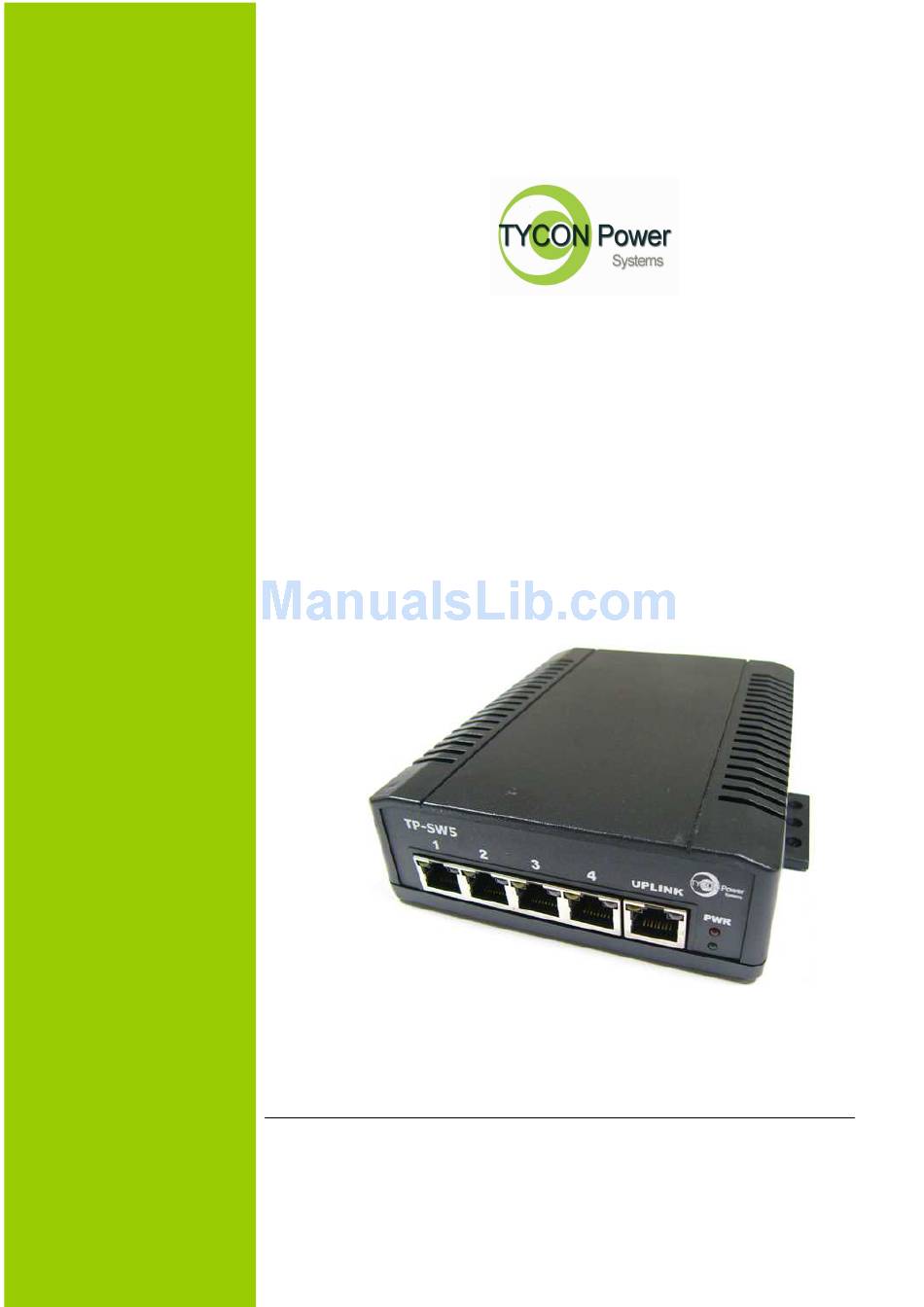

- Page 1 TP-SW5G(-NC) 5 port PoE Endspan (Switch) (Extend Ethernet and PoE) TYCON POWER SYSTEMS...
-
Page 2: Table Of Contents
User’s Manual TYCON TP-SW5G(-NC) series 1. General Information.............. 2. Hardware Description............LED Indicators..................Power Wiring ..................Ethernet Port Wiring................PD Port Wiring..................Network Application……………………………………......3. Model Information............4. Technical Specification............TYCON POWER SYSTEMS... -
Page 3: General Information
User’s Manual TYCON TP-SW5G(-NC) series 1. General Information The PoE (Power Over Ethernet) Switch family provide four 10M/100M/1000M TX ports with PoE PSE function plus one 10M/100M/1000M TX up-link port with PoE PD function. It allows power souring equipment (PSE) to be powered from PoE and deliver power to PoE powered device (PD), which are compliant with IEEE802.3af and IEEE802.3at standard to receiver and deliver both Ethernet data and DC... - Page 4 LED ON when power input (DC IN on rear panel or Port 5 (UPLINK) on front panel) has valid power supplied. The indicator is only used on TP-SW5G-NC, LED ON when the following warning condition happens. *Power input under voltage (Vin<10V) *Power input over voltage (Vin>59V)
-
Page 5: Power Wiring
The PoE switch family allow powered by another PoE source on port 5 (UPLINK) as a PoE repeater or extender. For TP-SW5G/TP-SW5G24 is 42.5~57VDC, for TP-SW5G-NC is 12~57VDC. For PoE operation, make sure your power supply may offer at least 75W for 4x 802.3af PoE port, or 150W for 4x 802.3at PoE port. - Page 6 The input voltage must be in the range of 50 to 57VDC if running for 802.3at operation. If the TP-SW5G is not powered with the above designated input voltage, it will only function as an Ethernet switch without PoE output.
- Page 7 (non-regulated) 42.5-57VDC No input 42.5-57VDC TP-SW5G (non-regulated) Higher voltage 40-57VDC 42.5-57VDC output (REAR or Port5) You can use the TP-SW5G(NC) series with our adaptor products as detailed below: (OPTION) PSHP-18 PSHP-24 PSHP-48 Maximum output 18VDC/7.5A 24VDC/6.25A 48VDC/3.125A TP-SW5G-NC TP-SW5G-NC TP-SW5G-NC...
-
Page 8: Ethernet Port Wiring
User’s Manual TYCON TP-SW5G(-NC) series *Ethernet Port Wiring The PoE switch family supports one RJ-45 uplink (port 5 with PoE PD) and four RJ-45 ports (port 1~4 with PoE PSE) with automatic MDI/MDI-X crossover, auto-sense for speed and duplex for 10Base-T, 100Base-TX or 1000Base-T connection. - Page 9 User’s Manual TYCON TP-SW5G(-NC) series Cross-over Cabling Pin 1 Pin 3 Pin 2 Pin 6 Pin 3 Pin 1 Pin 6 Pin 2 Pin 4 Pin 7 Pin 5 Pin 8 Pin 7 Pin 4 Pin 8 Pin 5 Connect an Ethernet cable into any switch port and connect the other side to your attached device.
-
Page 10: Pd Port Wiring
User’s Manual TYCON TP-SW5G(-NC) series *PD Port Wiring Port 1 to 4 provides PoE injection function with maximum 35W ability to power up the powered device using the straight-through or cross-over Ethernet cable. The PoE switch follows the IEEE802.3af Alternative B mode connector assignment. The following table shows pin assignment of alternative A and B for the Power Source Equipment. -
Page 11: Network Application
IEEE 802.3af/at standard in the network. The PoE Switch can be installed in a more appropriate position for better performance to extend Ethernet to 200 meters. The following figure is an example of a network application for the PoE Switch. (TP-SW5G-NC added the repeater function since S/N 128000001ARC01) TYCON POWER SYSTEMS... -
Page 12: Model Information
User’s Manual TYCON TP-SW5G(-NC) series 3. Model Information Input Voltage Input Voltage Output Model 802.3af/at Isolated (REAR) (Port 5) voltage 12-57VDC TP-SW5G-NC 12-57VDC 12-57VDC (non-regulated) 56VDC TP-SW5G24 12-36VDC 42.5-57VDC (regulated) 40-57VDC TP-SW5G 40-57VDC 42.5-57VDC (non-regulated) AC/DC Adapter (Option) PSHP-18 PSHP-24... -
Page 13: Technical Specification
User’s Manual TYCON TP-SW5G(-NC) series 4. Technical Specifications Standards IEEE802.3/IEEE802.3u standards/IEEE802.3ab (10 base-T/100base-TX/1000base-T) Ports 5 ports with PoE (4 PSE & 1 PD), support auto-crossover & auto-polarity Transmission speed 1000Mbps (1000base-T).100 Mbps (100base-TX), 10 Mbps(10base-T) Auto-negotiation Switch technology store-and-forward Protocols... - Page 14 1-4 ON - PD detect Port 5 TP-SW5G & TP-SW5G24 ON – 4 pair power, Blinking-2 pair power TP-SW5G-NC ON – 2 or 4 pair power *POWER Green-normal, Red-alarm Power input Port 5 from network switch or midspan, or optional DC power supply...
- Page 15 User’s Manual TYCON TP-SW5G(-NC) series Pin Protected All 8 pin protected <3pF (VR = 0V, f = 1MHz, I/O pin to GND) Max. Shut Capacitance < 1.5 pF (VR = 0V, f = 1MHz, Between I/O pins) IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
