Tycon Power Systems TP-SW16GBT/AT/PSV-U Quick Installation Manual

TP-SW16GBT/AT/PSV-U Gigabit 16-Port 802.3bt/at/psv PoE + SFP
Industrial L3 Managed Ethernet Switch
Packing List
Please check the following items after unpacking, if any missing, please contact your local dealer.
Items
PoE Switch
AC Power Cable
Mounting Accessory
Quick Installation Guide

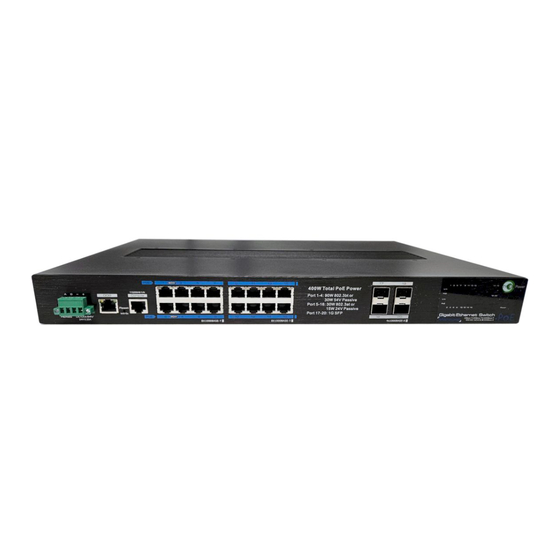

Product Overview
The product is an Industrial 4-Port Gigabit PoE++, 12-Port Gigabit PoE+, 4- Port 1.25G SFP L3 Managed
Ethernet PoE Switch.
The switch provides 16*10/100/1000Mbps Ethernet RJ-45 ports and 4*1000Mbps SFP uplink ports. All
RJ-45 ports support Power-over-Ethernet (PoE). It meets IEEE 802.3af/at/bt standards. RJ-45 ports also
support passive PoE (54V/24V). Ports 1-4 support 802.3bt 90W or 54V 30W power, Ports 5-16 support
802.3at 30W or 24V 15W power.
The switch has L3 management functions, such as RIP,DHCP,OSPF,802.1Q VLAN, 802.1p QoS, SNMP,
Fast-Ring, and PoE control. It can be easily managed via a WEB GUI (http/https), CLI (telnet/ssh/console)
or SNMP. It can be widely used in video security monitoring systems, network projects, etc.

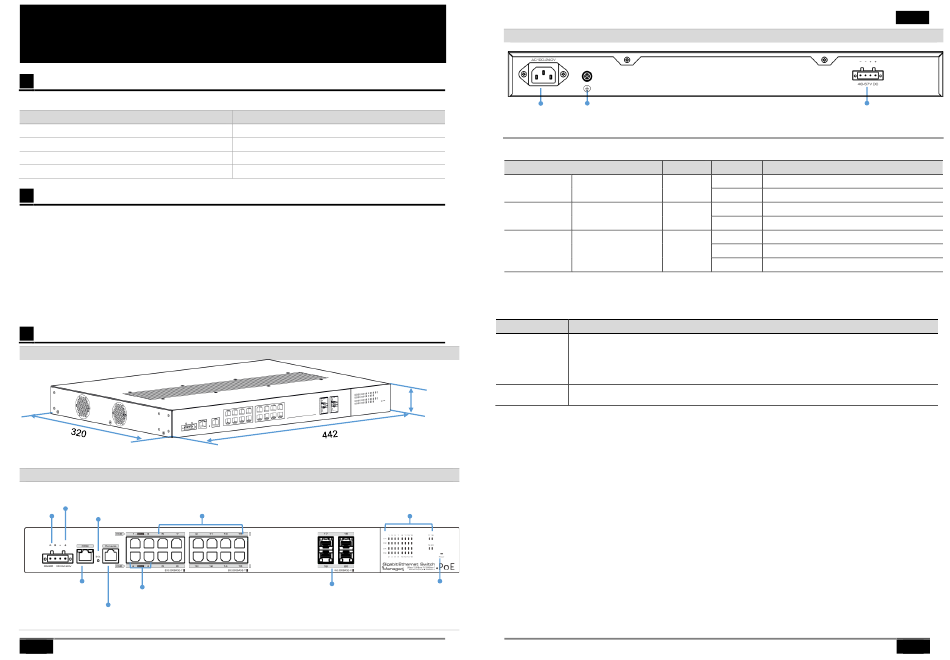

Appearance and Dimensions
Dimensions (mm)
Front Panel
DC Out 24V
Gigabit PoE+ Ethernet Ports
Init Button
RS485
OOB Port
Gigabit PoE++ Ethernet Ports
Console Port
1
Quick Installation Guide
Quantity
1 pc
1 pc
1 set
1 pc
44.5
Ports LED indicator
Power LED indicator
Gigabit SFP ports
─────────────────────────────◀◀◀ Quick Installation Guide
Rear Panel
AC power Grounding
Indicator
Color
Indicator
Power Power indicator Red
PoE PoE indicator Yellow
Link Link indicator Green
Factory Settings
The switch starts with its factory settings:
Item Specifications
Baud rate: 115200 bit/s
Data bits: 8
Console Port Parity: None
Stop bits: 1
Flow control: None
Default IP address/subnet mask: 192.168.1.200/255.255.255.0
Web Manager
User/Password: admin/admin
Reset/Init Button
The Reset/Init button has two operating modes:
Momentary Press: Switch will be reset and the configuration is as previously saved.
>5s Press: Switch will be restored to the original factory default setting.
DC Power Input
Status Description
Solid On Power supply is on.
Off Power supply is off.
Solid On PoE Power.
Off PoE is not powered
Solid On Port is linking normally.
Blink Port is transmitting or receiving data.
Off Port is linking down.
2
