Tycon Power Systems TP-SW8GBT/AT/PSV-U Quick Installation Manual

TP-SW8GBT/AT/PSV-U Gigabit 8-Port 802.3bt/at/psv PoE + SFP
Industrial L2 Managed Ethernet Switch
Packing List
Please check the following items after unpacking, if any are missing, please contact your local dealer.
Items
PoE Switch
Mounting Accessory
Quick Installation Guide
Product Overview
The product is an Industrial 4-Port Gigabit PoE++, 4-Port Gigabit PoE+, 2-Port 1.25G SFP L2 Managed
Ethernet PoE Switch.
The switch provides 8*10/100/1000Mbps Ethernet RJ-45 ports and 2*1G/2.5Gbps SFP uplink ports. All RJ-
45 ports support Power-over-Ethernet (PoE).
passive PoE (54V/24V). Ports 1-4 support 802.3bt 90W or 54V 30W power, Ports 5-8 support 802.3at
30W or 24V 15W power.
The switch supports PoE watchdog features, which can detect and restart the load automatically if it stops
working. It supports the Q-PoE (Quick PoE) technology, which enables PoE power supply immediately upon
switch startup without waiting for switch system software control. It supports the P-PoE (Perpetual PoE)
technology, which enables PoE power supply without interruption when switch is restarting and restores the
network quickly.
The switch has extensive L2 management functions, such as 802.1Q VLAN, 802.1p QoS, SNMP, Fast-
Ring, and PoE control. It can be easily managed via a WEB GUI (http/https), CLI (telnet/ssh/console) or
SNMP. The switch supports 12V to 57V DC wide voltage inputs and is designed for high availability
applications. It can be widely used in video security monitoring systems, network projects, etc.

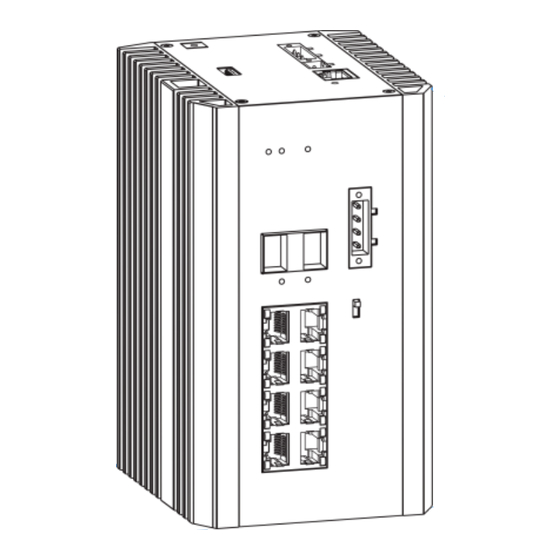

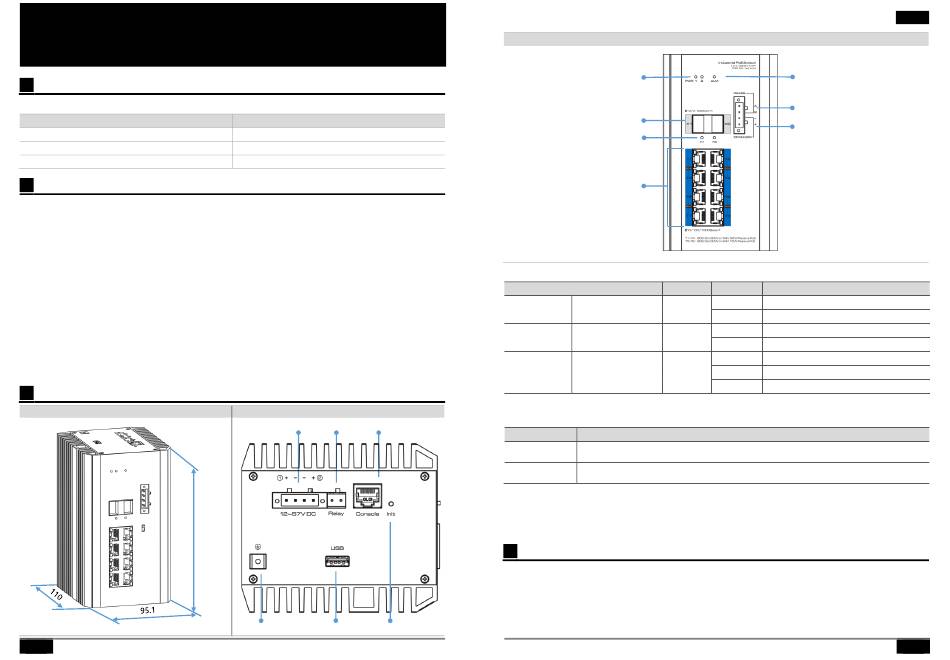

Appearance and Dimensions
Dimensions (mm)
163
1
Quick Installation Guide
Quantity
1 pc
1 set
1 pc
It meets IEEE 802.3af/at/bt standards. RJ-45 ports also support
Side Panel
Power1&2 Input Relay Interface Console Port
Grounding USB Init Button
─────────────────────────────◀◀◀ Quick Installation Guide
Front Panel
Power Indicators
1G/2.5G SFP
SFP Indicators
1000M PoE Ethernet Ports
Indicator
Indicator Color
PWR1,2 Power indicator Red
ALM Alarm indicator Red
X1,X2 SFP port indicator Green
Factory Settings
The switch starts with its factory settings:
Item Specifications
Baud rate: 115200 bit/s
Console Port
Data bits: 8, Parity: None, Stop bits: 1, Flow control: None
Default IP address/subnet mask: 192.168.1.200/255.255.255.0
Web Manager
User/Password: admin/admin
Reset/Init Button
The Reset/Init button has two operating modes:
Momentary Press: Switch will be reset and the configuration is as previously saved.
>5s Press: Switch will be restored to the original factory default setting.
Caution
 For better transmission performance, it is recommended to use high-performance Ethernet cable to
connect the switch and powered devices.
 For better protection performance, it is recommended to always make the ground connection first and
disconnect it last when operating the device.
 Before operating or maintaining the switch, please read the user manual carefully to avoid equipment
damage caused by improper operation.
Relay Alarm Indicator
RS-485
DC Power Out
Status Description
Solid On Power supply is on.
Off Power supply is off.
Solid On The device alarms.
Off The device is working normally.
Solid On SFP port is linking normally.
Blink SFP port is transmitting or receiving data.
Off SFP port is linking down.
