Black Horse Model Gilmore Instruction Manual Book

Black Horse Model Gilmore Instruction Manual Book

Black horse model gilmore 95% almost ready to fly
Hide thumbs Also See for Gilmore:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual Book

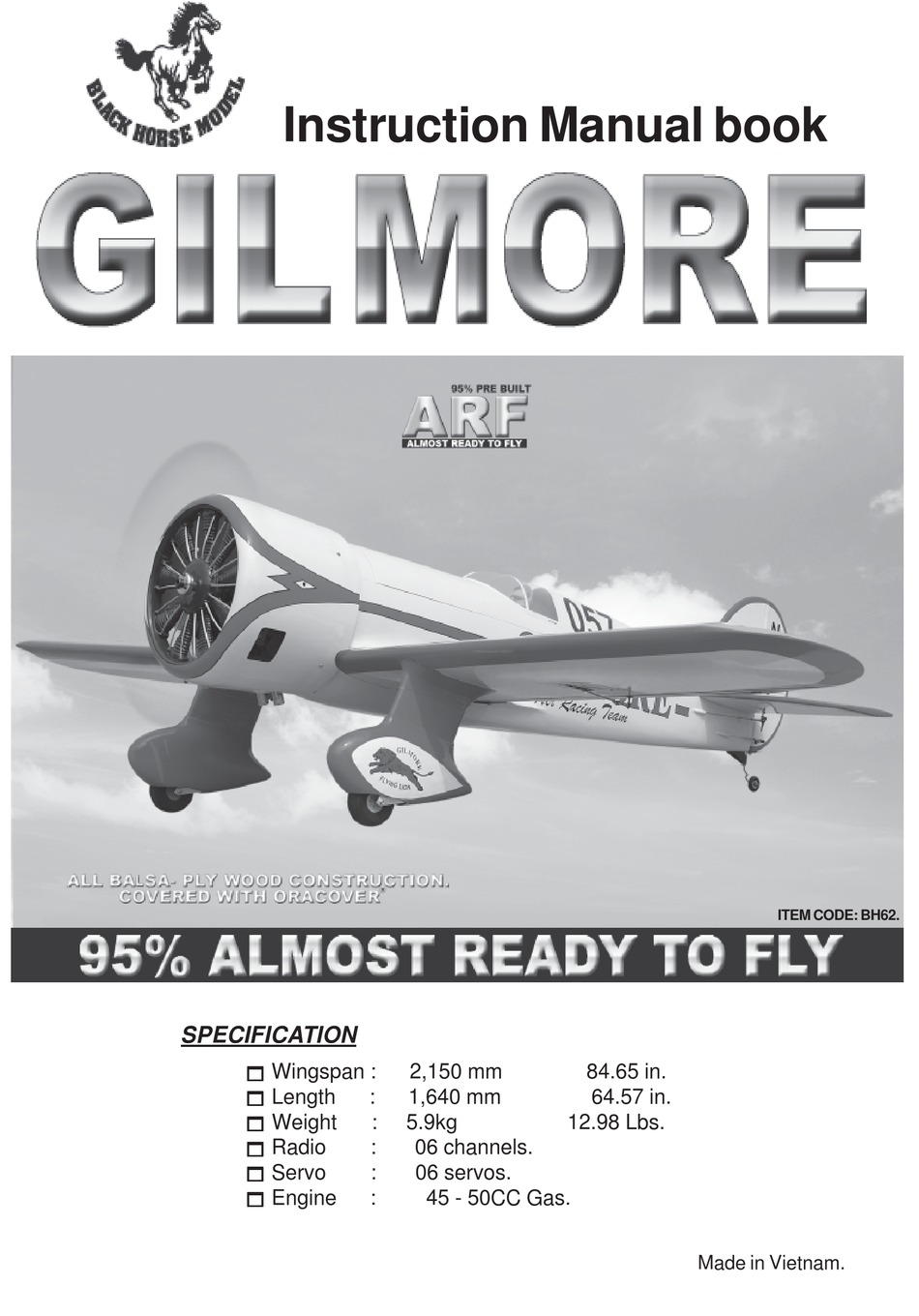

Instruction Manual book
SPECIFICATION
     Wingspan :
     Length
     Weight
     Radio
     Servo
     Engine
2,150 mm
:
1,640 mm
:
5.9kg
:
06 channels.
:
06 servos.
:
45 - 50CC Gas.
84.65 in.
64.57 in.
12.98 Lbs.
Made in Vietnam.
ITEM CODE: BH62.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Gilmore and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Black Horse Model Gilmore

Summary of Contents for Black Horse Model Gilmore

  • Page 1 Instruction Manual book ITEM CODE: BH62. SPECIFICATION      Wingspan : 2,150 mm 84.65 in.      Length 1,640 mm 64.57 in.      Weight 5.9kg 12.98 Lbs.      Radio 06 channels.
  • Page 2 Item code:BH62. INSTRUCTION MANUAL This instruction manual is designed to help you build a great flying aeroplane. Please read this manual thoroughly before starting assembly of your GILMORE. Use the parts listing below to identify all parts. WARNING Please be aware that this aeroplane is not a toy and if assembled or used incorrectly it is capable of causing injury to people or property.

  • Page 3: Safety Precaution

    GILMORE- Item code:BH62. INSTRUCTION MANUAL INSTALLING THE AILERON SERVOS. SAFETY PRECAUTION. + This is not a toy  1. Install the rubber grommets and brass + Be sure that no other flyers are using your eyelets onto the aileron servo.
  • Page 4 GILMORE- Item code:BH62. INSTRUCTION MANUAL C/A glue. Bottom side. Bottom side. Bottom side. Secure  2. Using a modeling knife, remove the cov- ering servo tray. Servo tray.  4. Using the thread as a guide and using masking tape, tape the servo lead to the end of the thread: carefully pull the thread out.
  • Page 5 GILMORE- Item code:BH62. INSTRUCTION MANUAL  5. Instal servo tray with aileron servo into INSTALLING THE AILERON CONTROL HORN. the wing as same as picture below. Servo tray. Nilon control clasp. M3 lock nut. 3 x 40mm. 2 x 10 mm.

  • Page 6: Installing The Aileron Linkages

    GILMORE- Item code:BH62. INSTRUCTION MANUAL Repeat the procedure for the other wing half. INSTALLING THE AILERON LINKAGES. Installing the aileron linkages as pictures below. M3 lock nut...
  • Page 7 GILMORE- Item code:BH62. INSTRUCTION MANUAL MAIN GEAR INSTALATION. PARTS REQUIRED Mark point 3x15mm 3x15mm Remove covering Secure Mark point...
  • Page 8 GILMORE- Item code:BH62. INSTRUCTION MANUAL Secure...
  • Page 9 GILMORE- Item code:BH62. INSTRUCTION MANUAL Secure Secure Secure Mart line...
  • Page 10 GILMORE- Item code:BH62. INSTRUCTION MANUAL Remove covering C/A glue Epoxy glue C/A glue Epoxy glue...

  • Page 11: Installing The Stopper Assembly

    GILMORE- Item code:BH62. INSTRUCTION MANUAL Repeat the procedure for the other wing half. FUEL TANK. INSTALLING THE STOPPER ASSEMBLY   1) The stopper has been pre-assembled at the factory.   2) Using a modeling knife, cut one length...
  • Page 12 GILMORE- Item code:BH62. INSTRUCTION MANUAL Blow through one of the lines to ensure the fuel lines have not become kinked inside the fuel tank compartment. Air should flow through easily.   9) To secure the fuel tank in place, apply a...

  • Page 13: Installing The Engine

    GILMORE- Item code:BH62. INSTRUCTION MANUAL Right side Secure Tie wrap. Left side INSTALLING THE ENGINE. Tie wrap. Locate the long piece of wire used for the throttle pushrod. One end of the wire has been pre-bend in to a “Z” bend at the factory. This “Z”...
  • Page 14 GILMORE- Item code:BH62. INSTRUCTION MANUAL Right side. Throttle servo COWLING. INSTALLING THE THROTTLE PUSHROD. 1. Install one adjustable metal connector  through the third hole out from the center of one servo arm, enlarge the hole in the servo arm using a 2mm drill bit to accommodate the servo connector.
  • Page 15 GILMORE- Item code:BH62. INSTRUCTION MANUAL  4. Install the muffler and muffler extension onto the engine and make the cutout in the cowl for muffler clearance. Connect the fuel and pressure lines to the carburetor, muffler and fuel filler valve.

  • Page 16: Horizontal Stabilizer

    GILMORE- Item code:BH62. INSTRUCTION MANUAL Right side HORIZONTAL STABILIZER. See pictures below: C/A glue ELEVATOR INSTALLATION. 1. Install the rubber grommets and brass  collets into the elevator servo. Test fit the servo into the servo tray.  2. Mount the servo to the tray using the ...
  • Page 17 GILMORE- Item code:BH62. INSTRUCTION MANUAL C/A glue C/A glue 3 x 15mm Secure. 213 mm Aluminium 9 mm...

  • Page 18: Elevator Control Horn Installa- Tion

    GILMORE- Item code:BH62. INSTRUCTION MANUAL Secure. Bottom side. ELEVATOR CONTROL HORN INSTALLA- TION. Elevator control horn install as same as the way of aileron control horn. Please see pic- tures below. Nilon control clasp. M3 lock nut. 3 x 40mm.

  • Page 19: Elevator Pushrod Installation

    GILMORE- Item code:BH62. INSTRUCTION MANUAL Top side. Elevator control horn Elevator servo Bottom side. ELEVATOR PUSHROD INSTALLATION.  Elevator pushrod install as same as the way of aileron pushrod. Elevator pushrod Elevator pushrod VERTICAL INSTALLATION.  Elevator  Elevator pushrod...
  • Page 20 GILMORE- Item code:BH62. INSTRUCTION MANUAL 1. Put the rudder into the fuselage as same as picture below. 2. Mark the shape of the vertical on the left  and right side of the rudder on to the horizon- tal stabilizer using a felt-tip pen.
  • Page 21 GILMORE- Item code:BH62. INSTRUCTION MANUAL Epoxy glue Remove covering C/A glue  6. Using a modeling knife cut away the  covering from the end of fuselage for the rud- 5) When you are sure that everything is a ...

  • Page 22: Rudder Pushrod Installation

    GILMORE- Item code:BH62. INSTRUCTION MANUAL RUDDER PUSHROD INSTALLATION. C/A glue  1. Rudder pushrod install as same as the way of aileron control horn.  2. Rudder push - pull system install as same as picture below. Remove covering C/A glue RUDDER CONTROL HORN INSTALLA- TION.
  • Page 23 GILMORE- Item code:BH62. INSTRUCTION MANUAL Rudder servo C/A glue Rudder control horn Elevator Elevator pushrod pushrod Rudder Rudder cable cable...

  • Page 24: Mounting The Tail Wheel Bracket

    GILMORE- Item code:BH62. INSTRUCTION MANUAL Rudder servo MOUNTING THE TAIL WHEEL BRACKET.      1. Set the tail wheel assembly in place on the plywood plate. The pivot point of the tail wheel wire should be even with the rud- der hinge line and the tail wheel bracket should be centered on the plywood plate.

  • Page 25: Installing The Switch

    GILMORE- Item code:BH62. INSTRUCTION MANUAL switch INSTALLING THE RECEIVER AND BATTERY.       1. Plug the servo leads and the switch lead into the receiver. You may want to plug an aileron extension into the receiver to make...

  • Page 26: Wing Attachment

    GILMORE- Item code:BH62. INSTRUCTION MANUAL Drill a hole 3mm diameter Receiver 3 x 40mm Secure WING ATTACHMENT.  Locate the aluminium wing dihedral brace. *** Test fit the aluminium tube dihedral brace into each wing haft. The brace should slide in easily.
  • Page 27 GILMORE- Item code:BH62. INSTRUCTION MANUAL Right side Left side WING ATTACHMENT. See picture wing attach to fuselage. Wing bolt. Installing the fuselage hatch as same as pic- ture below. Wing bolt.
  • Page 28 GILMORE- Item code:BH62. INSTRUCTION MANUAL Insert and secure. BALANCING.       1) It is critical that your airplane be bal- anced correctly. Improper balance will cause your plane to lose control and crash. THE CENTER OF GRAVITY IS LOCATED 90MM BACK FROM THE LEADING EDGE OF THE WING.

  • Page 29: Pre-Flight Check

         3) Check to be sure the control surfaces We wish you many safe and enjoyable move in the correct directions. flights with your GILMORE. Ailerons : 15mm up 15mm down Elevator : 15mm up 15mm down...
