Summary of Contents for Gold Medal 2365

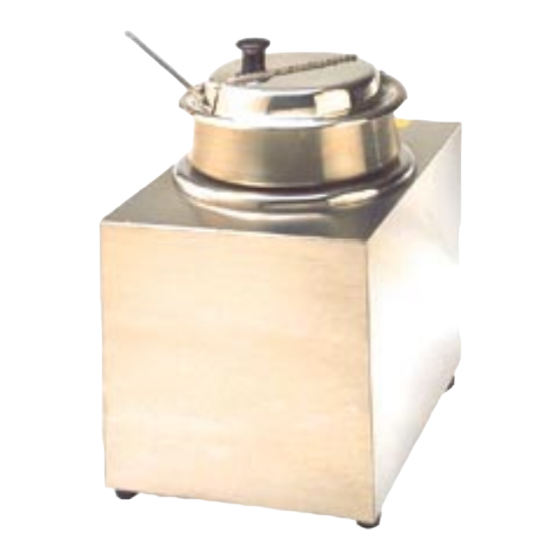

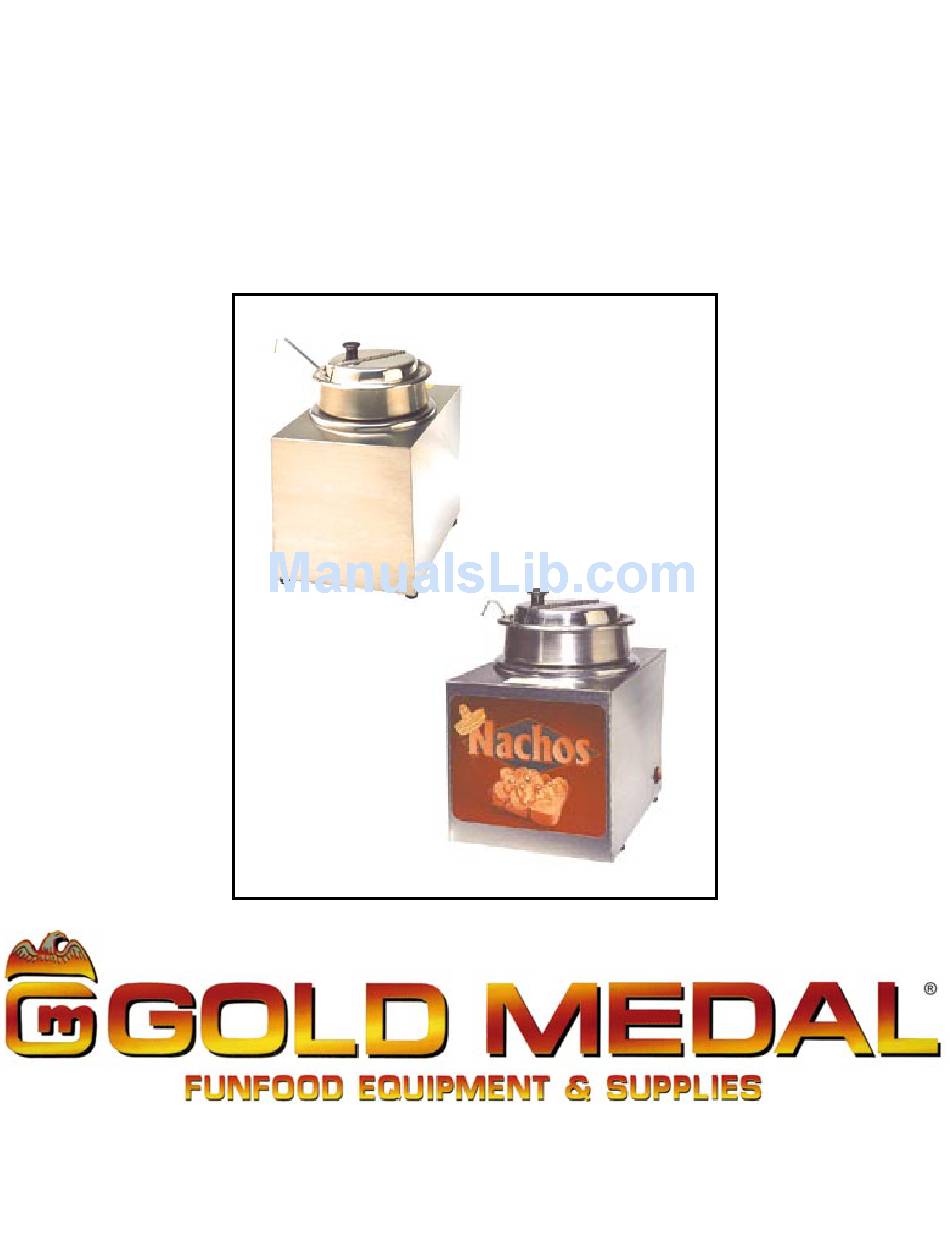

- Page 1 Nacho Cheese Warmer Part No. 38409 Revised June 1996 Instruction Manual Model #2365 and Model #2365LS Model #2365 Model #2365LS Cincinnati, OH 45241-4807 USA...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS... -
Page 3: Installation
6. Let cheese heat for 45 minutes (stirring every 15 minutes) before serving. 7. Turn heat control switch to “OFF” position when unit is not in use. The warmer should not be operated without water in the well. #2365 #2365LS ODELS... -
Page 4: Care And Cleaning
4. Slide the sign out from the bottom. 5. Remove the bulb from the socket and replace as necessary. 6. Clean all interior surfaces before re-assembly. 7. Reinstall the sign and retaining angle. Re-install the two screws. #2365 #2365LS ODELS... -
Page 5: Maintenance Instructions
3. Remove the screws from the bottom of the unit. It is not necessary to remove the rubber feet. 4. Unfasten the thermostat screw and the two screws from the heating element. 5. Disconnect the wires from the thermostat and heating element. 6. Replace unserviceable parts and rewire as shown in the wiring diagram. #2365 #2365LS ODELS... -
Page 6: Ordering Spare Parts
3. Please include your model name and machine serial number (located on the machine nameplate) with your order. 4. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 or, place orders at:... -
Page 7: Cabinet Assembly
Nacho Cheese Warmer CABINET ASSEMBLY #2365 #2365LS ODELS... -
Page 8: Parts List - Cabinet Assembly
Nacho Cheese Warmer PARTS LIST - CABINET ASSEMBLY Model Model #2365 #2365LS Item No. Part No. Part No. Description 22038 22038 Lead In Cord 38034 38034 Label, Caution Water Level 38077 38077 Socket, Lamp Holder 38227 38227 Thermostat 38272 38272... -
Page 9: Electrical Schematic
Nacho Cheese Warmer ELECTRICAL SCHEMATIC #2365 #2365LS ODELS... -
Page 10: Warranty
WARRANTY WE WARRANT to the original purchaser the Gold Medal equipment sold by us to be free from defects in material or workmanship under normal use and service. Our obligation under this warranty shall be limited to the repair or replacement of any...
