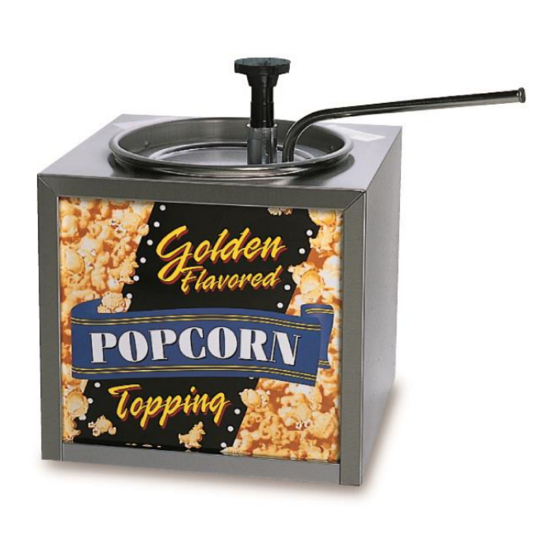

- Page 1 Instruction Manual Condiment Warmers Model No. 2191, 2191EX, 2195, 2195EX, 2196, 2200, 2200EX, 2205, 2205EX 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA © 2020 Gold Medal Products Co. Part No. 38043...
-
Page 2: Table Of Contents
Model No. 2191, 2191EX, 2195, 2195EX, Condiment Warmers 2196, 2200, 2200EX, 2205, 2205EX Table of Contents SAFETY PRECAUTIONS ........................... 3 INSTALLATION INSTRUCTIONS ........................5 Inspection of Shipment ............................5 Manual ..................................5 Setup ................................... 5 Electrical Requirements ............................. 6 Before You Plug In Machine ..........................6 OPERATING INSTRUCTIONS ......................... -
Page 3: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215 gmpopcorn.com... - Page 4 Note: Improvements are always being made to Gold Medal’s equipment. This information may not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions.
-
Page 5: Installation Instructions
Remove all packing material and tape before starting operation. This warmer is designed to use a standard No. 10 tin that your product came in as the insert Bowl. An optional stainless steel insert bowl is available, Gold Medal Part No. 2194. 1. Remove all packaging and tape prior to operation. -
Page 6: Electrical Requirements
We recommend this equipment be on a dedicated and protected circuit. Failure to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to safety concerns, and may cause sacrificed and/or reduced performance. -
Page 7: Operating Instructions
Model No. 2191, 2191EX, 2195, 2195EX, Condiment Warmers 2196, 2200, 2200EX, 2205, 2205EX OPERATING INSTRUCTIONS Controls and Their Functions POWER SWITCH ON/OFF Power Switch – supplies power to the unit. HEAT CONTROL KNOB Controls the heat element for the warmer. -
Page 8: Care And Cleaning
Ammonia cleaners will damage plastic panels. Only use a non-ammonia cleaner, such as Gold Medal Watchdog Glass Cleaner (Item No. 2588). gmpopcorn.com Page 8... -
Page 9: Pump Assembly
Model No. 2191, 2191EX, 2195, 2195EX, Condiment Warmers 2196, 2200, 2200EX, 2205, 2205EX Pump Assembly Pump Assembly (38037) Lid Bushing (Disassemble in reverse order.) Step 1: Put lid on pump body—screw on lid bushing to fasten lid. Step 2: Insert square shaft w/bottom plate—... - Page 10 Model No. 2191, 2191EX, 2195, 2195EX, Condiment Warmers 2196, 2200, 2200EX, 2205, 2205EX Step 8: Release support—check placement: A. Check—support must lock into knob About half of (twist knob slightly if needed). bottom rib goes B. Check height—bottom rib must rest into bushing.
-
Page 11: Maintenance Instructions
Model No. 2191, 2191EX, 2195, 2195EX, Condiment Warmers 2196, 2200, 2200EX, 2205, 2205EX MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. DO NOT immerse any part of this equipment in water. -
Page 12: Ordering Spare Parts
4. Please include your model number, serial number, and date of manufacture (located on the machine nameplate/data plate) with your order. 5. Address all parts orders to Parts Department, Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 or place orders by phone or online:... -
Page 13: Cabinet Exterior - Parts Breakdown
Model No. 2191, 2191EX, 2195, 2195EX, Condiment Warmers 2196, 2200, 2200EX, 2205, 2205EX Cabinet Exterior – Parts Breakdown For Sign Graphic, reference images below. 2 (Sign Cover) 3 (Acrylic Front) *CAUTION: If supply cord is damaged, it must be replaced by Gold Medal Products Co.,... -
Page 14: Cabinet Exterior - Parts List
Model No. 2191, 2191EX, 2195, 2195EX, Condiment Warmers 2196, 2200, 2200EX, 2205, 2205EX Cabinet Exterior – Parts List Part Number Item Part Description 2191, 2195, 2196, 2191EX, 2195EX, 2200, 2205 2200EX, 2205EX CABINET ASSEMBLY 38025 38025 LEXAN SIGN COVER 38215... -
Page 15: Cabinet Exterior And Bottom View
Model No. 2191, 2191EX, 2195, 2195EX, Condiment Warmers 2196, 2200, 2200EX, 2205, 2205EX Cabinet Exterior and Bottom View Strain Relief Switch Part Number Item Part Description 2191, 2195, 2196, 2191EX, 2195EX, 2200, 2205 2200EX, 2205EX #8-32 TINNERMAN FASTENER 47300 47300... -
Page 16: Pump - Dipper - Inserts - Replacement Parts
Model No. 2191, 2191EX, 2195, 2195EX, Condiment Warmers 2196, 2200, 2200EX, 2205, 2205EX Pump – Dipper – Inserts – Replacement Parts Items included varies by model. Pump 38037 - For parts breakdown, see next page. 8, 9 Item Part Description... -
Page 17: Pump Assembly 38037
Model No. 2191, 2191EX, 2195, 2195EX, Condiment Warmers 2196, 2200, 2200EX, 2205, 2205EX Pump Assembly 38037 O-Ring goes on top slot of plug. Complete Pump Assembly (PN 38037) Part Number Item Part Description 38037 PUMP KNOB 116395 KNOB SUPPORT 116391... -
Page 18: Wiring Diagram
Model No. 2191, 2191EX, 2195, 2195EX, Condiment Warmers 2196, 2200, 2200EX, 2205, 2205EX Wiring Diagram gmpopcorn.com Page 18... -
Page 19: Warranty
© 2020 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
