Summary of Contents for Gold Medal 2192EX

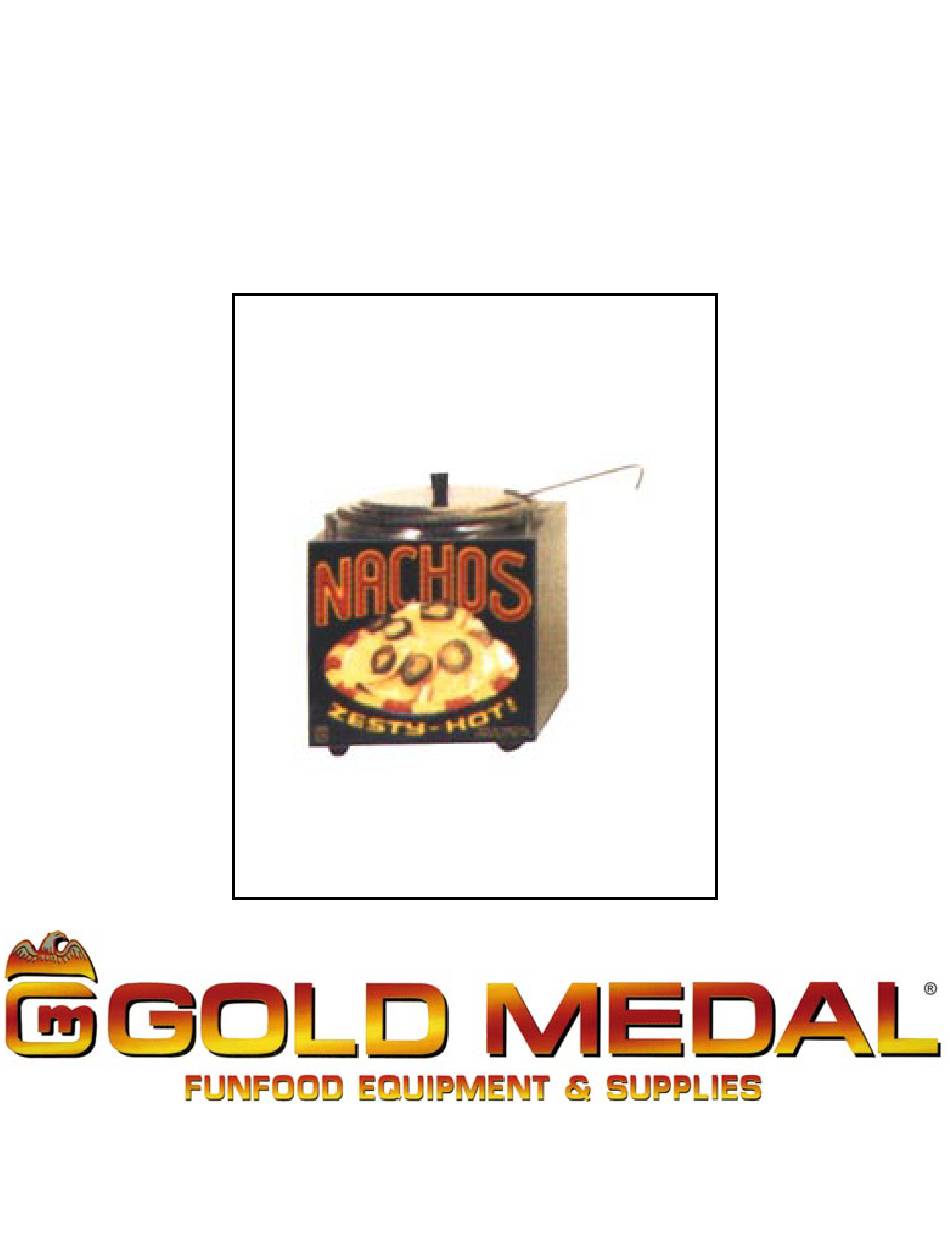

- Page 1 Mini-Condiment Warmer Part No. 38123EX Revised June 1996 Instruction Manual Models #2192EX, #2202EX, #2203EX and #2204EX Cincinnati, OH 45214-2089 USA...
-
Page 2: Safety Precautions
Always unplug the equipment before cleaning or servicing. NOTE The information, specifications and illustrations contained in this manual represent the latest data available at time of publication. Right is reserved to make changes as required at the discretion of Gold Medal Products Company without notice. -
Page 3: Care And Cleaning
These dispensers are designed to use a standard No. 5 Tin that your product came in as the insert bowl (an optional stainless steel insert bowl is available from your nearest Gold Medal dealer. Order No. 2199, see Price List). -
Page 4: Maintenance Instructions
Mini-Condiment Warmer MAINTENANCE INSTRUCTIONS THE FOLLOWING SECTIONS OF THIS MANUAL ARE IN- TENDED ONLY FOR QUALIFIED SERVICE PERSONNEL WHO ARE FAMILIAR WITH ELECTRICAL EQUIPMENT. THESE ARE NOT INTENDED FOR THE OPERATOR. Adequate eye protection must be used when servicing this equip- ment to prevent the possibility of injury. -
Page 5: Ordering Spare Parts
3. Please include your model name and machine serial number (located on the machine nameplate) with your order. 4. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 or, place orders at:... - Page 6 Mini-Condiment Warmer MINI-CONDIMENT WARMER ASSEMBLY #2192, #2202, #2203 #2204 XPORT ODELS...
- Page 7 Mini-Condiment Warmer PARTS LIST – MINI-CONDIMENT WARMER Item No. Part No. Description Quantity 38015 2 Oz. [59ml] Dipper 38019 Thermostat Cover Label 38023 Thermostat 40110 Wire Nut 38033 Element Spring 38034 Caution Label (Water Level) 38087 Screw, #6-32 x " [9,5mm] RD. HD. PH. 1 38022 Bowl Spring 38101...
- Page 8 Mini-Condiment Warmer WIRING SCHEMATIC – MINI-CONDIMENT WARMER #2192, #2202, #2203 #2204 XPORT ODELS...
- Page 9 Mini-Condiment Warmer WIRING SCHEMATIC MINI-CONDIMENT WARMER with HEATED SPOUT #2192, #2202, #2203 #2204 XPORT ODELS...
-
Page 10: Warranty
WARRANTY WE WARRANT to the original purchaser the Gold Medal equipment sold by us to be free from defects in material or workmanship under normal use and service. Our obligation under this warranty shall be limited to the repair or replacement of any...
